AR68.20-P-2350RA Remove/Install Cover on Center Console
AR68.20-P-2350RA Remove/Install Cover on Center Console
AR68.20-P-2350RA Remove/Install Cover on Center Console

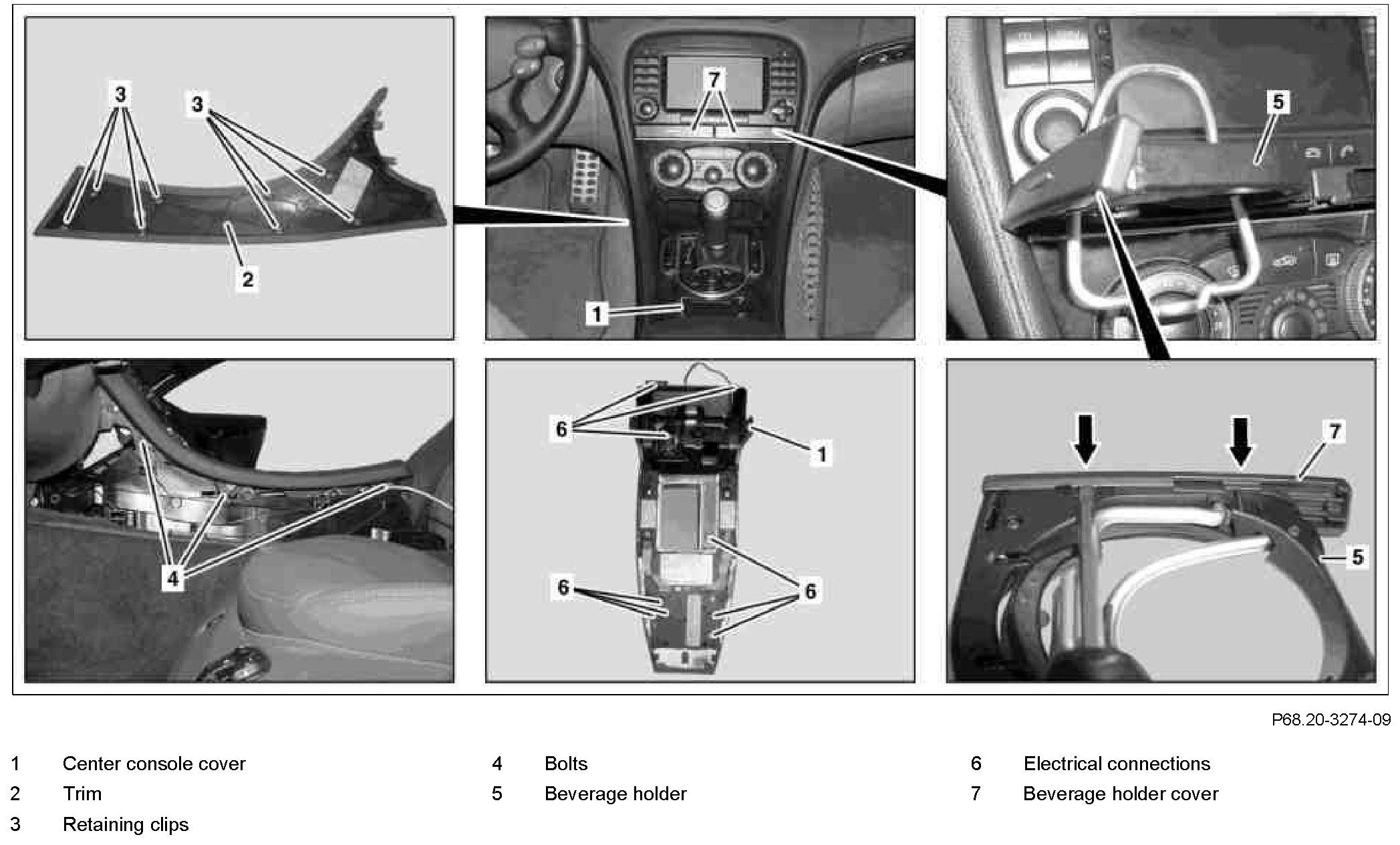

Component Identification:

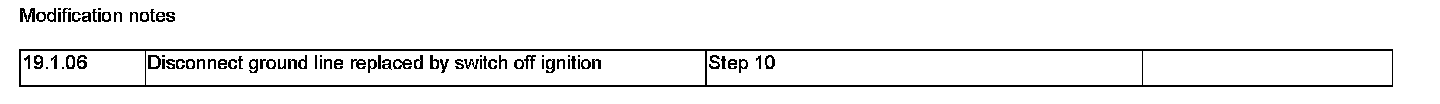

Modification Notes:

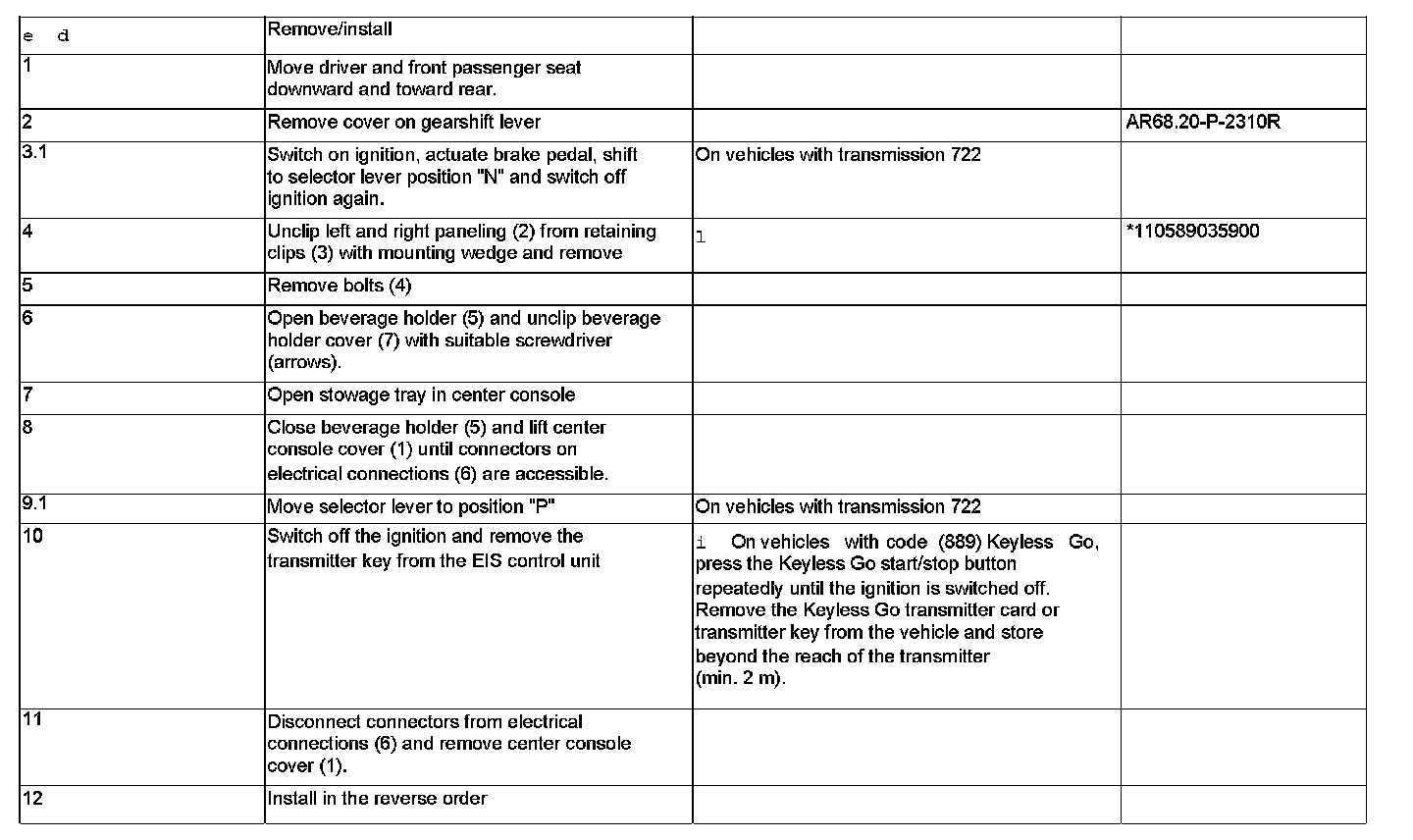

Steps 1 - 12:

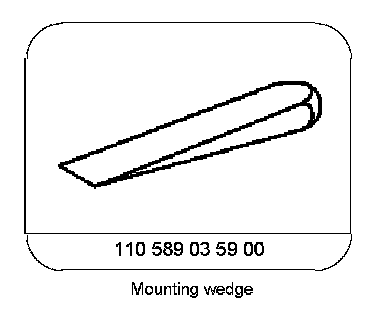

Special Tools:
