Trunk / Liftgate Shock / Support: Service and Repair



AR88.50-P-5110R Remove/Install Trunk Lid Gas-Operated Strut

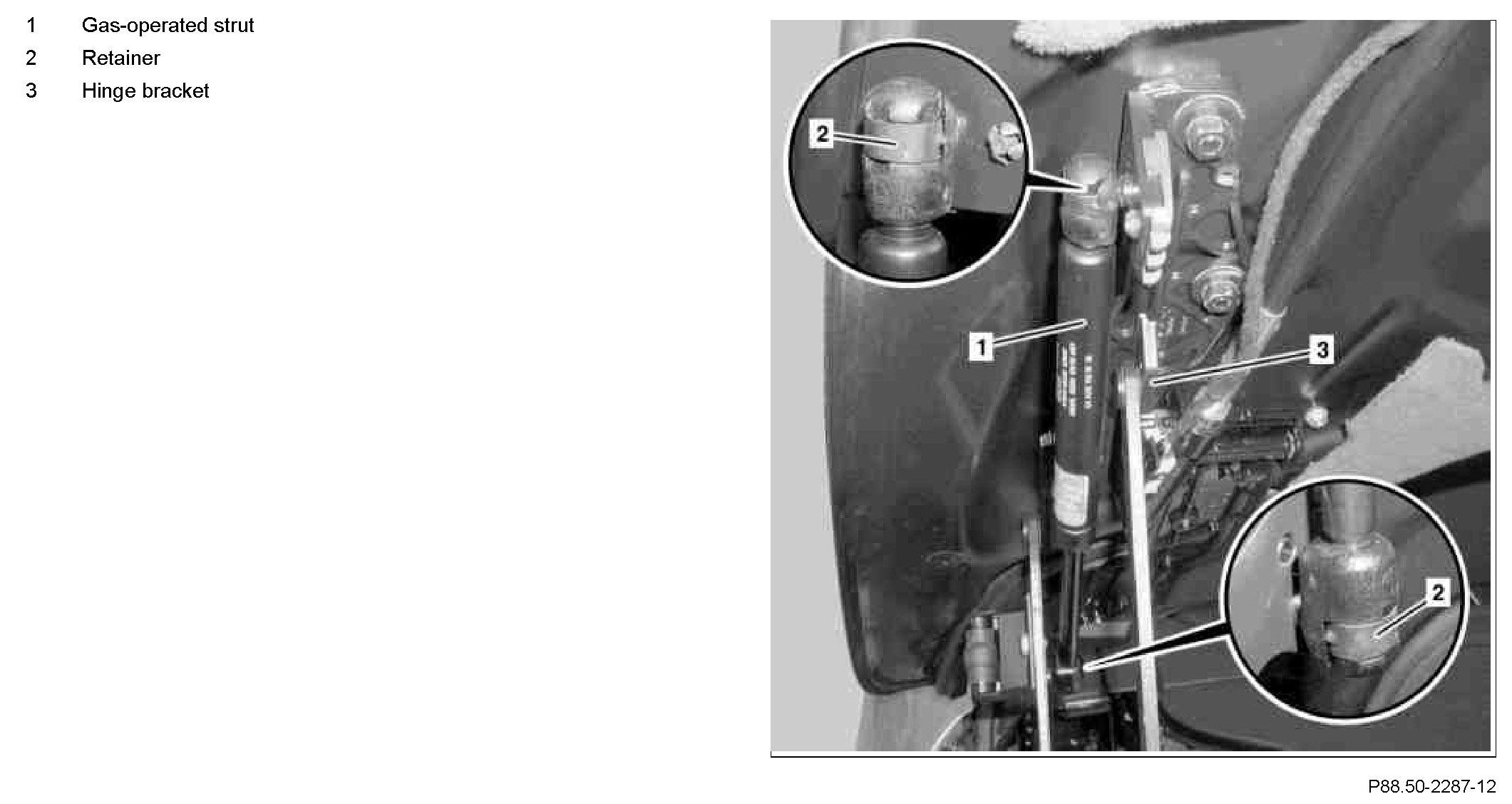

Component Identification:




Component Identification:

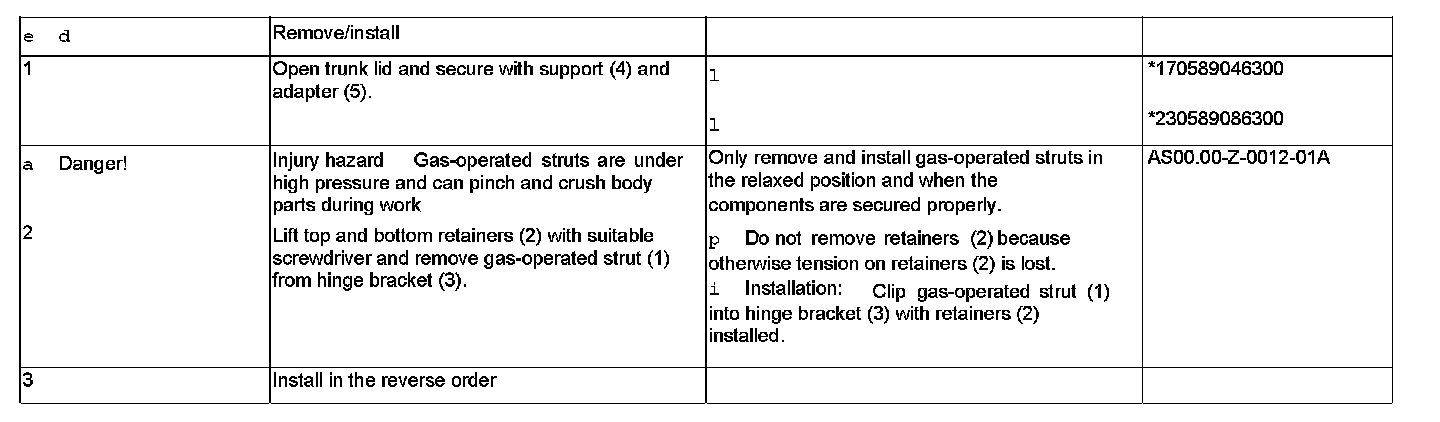

Steps 1 - 3:

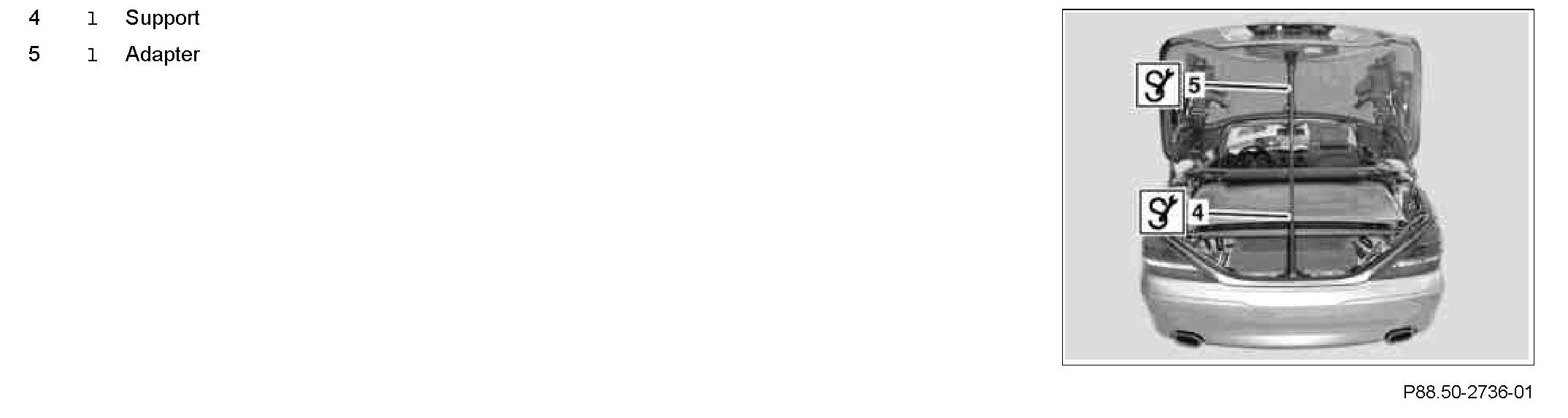

Special Tools:

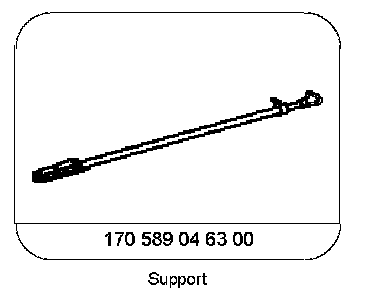

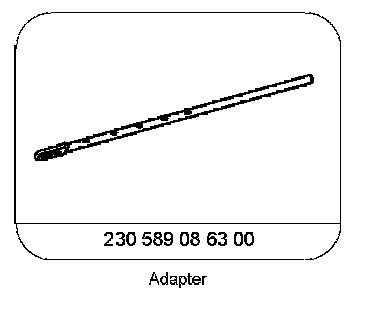

Special Tool:
