Front Door Latch: Service and Repair

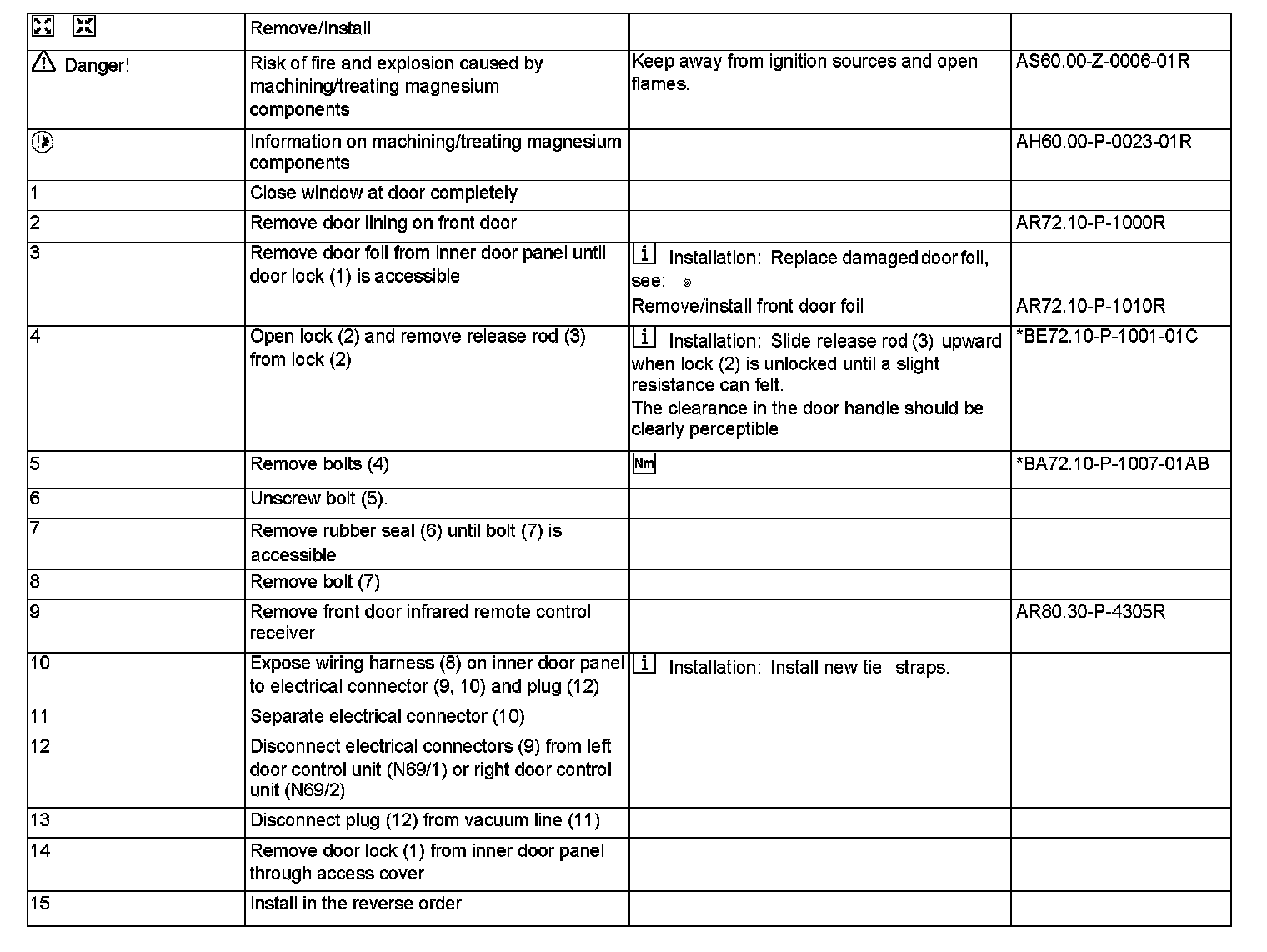

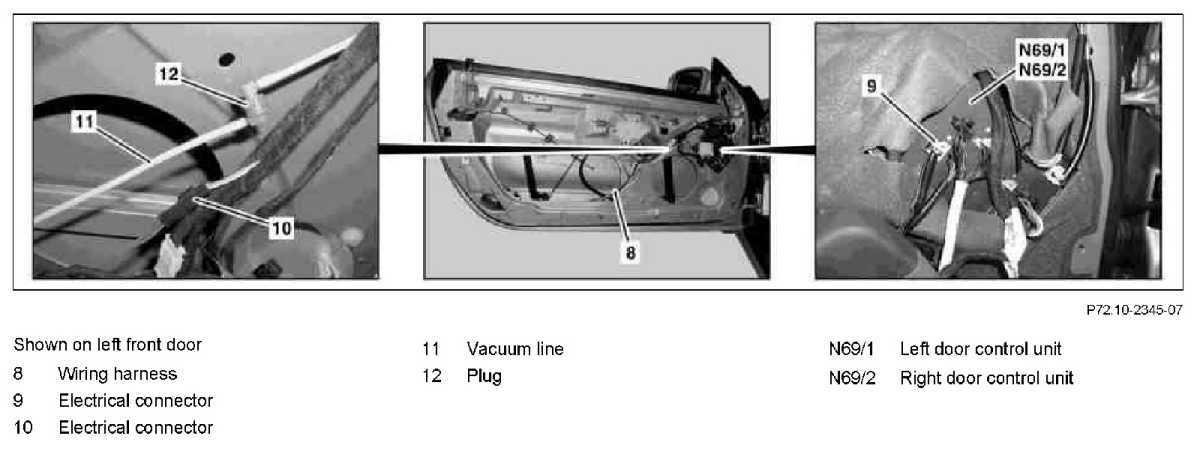

AR72.10-P-4011R Remove/Install Front Door Lock

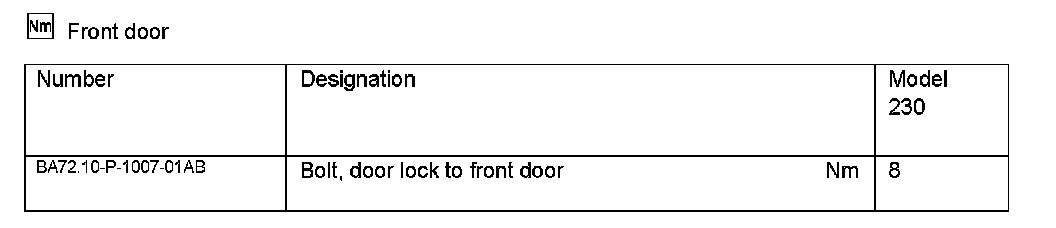

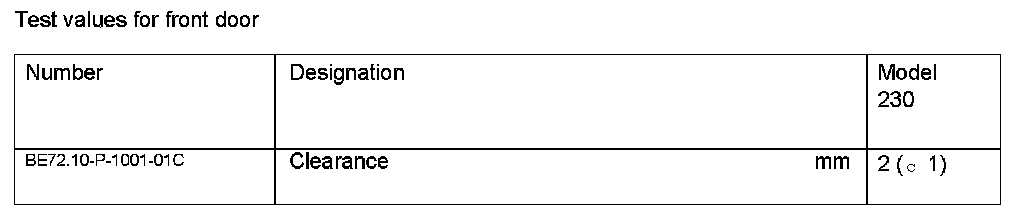

Values For Front Door:






Front Door:
