AR82.62-P-8000RC Removing and Installing Keyless Go Antenna



AR82.62-P-8000RC Removing And Installing Keyless Go Antenna
- left and right door
- with CODE (889) Keyless Go

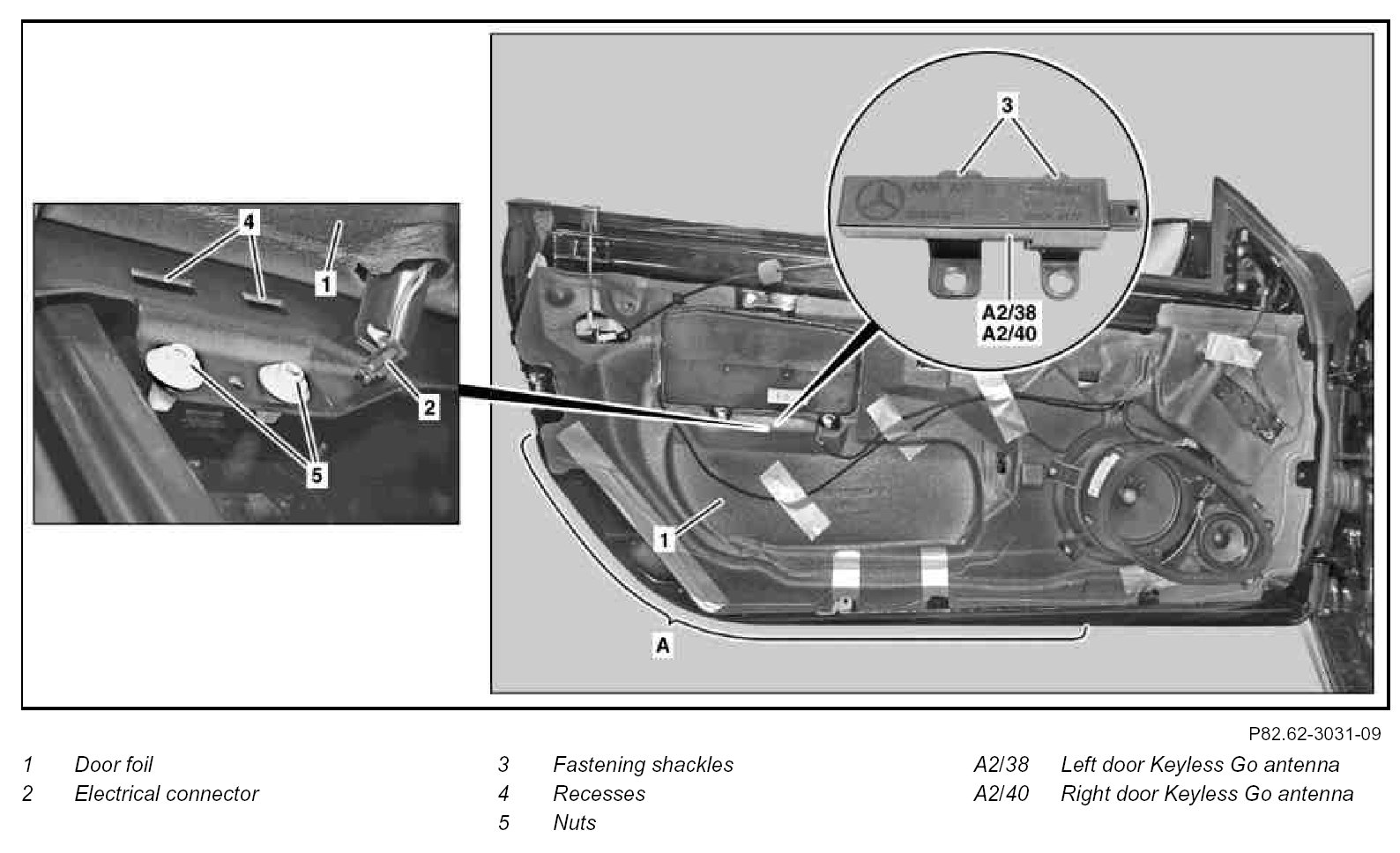

Component Identification:

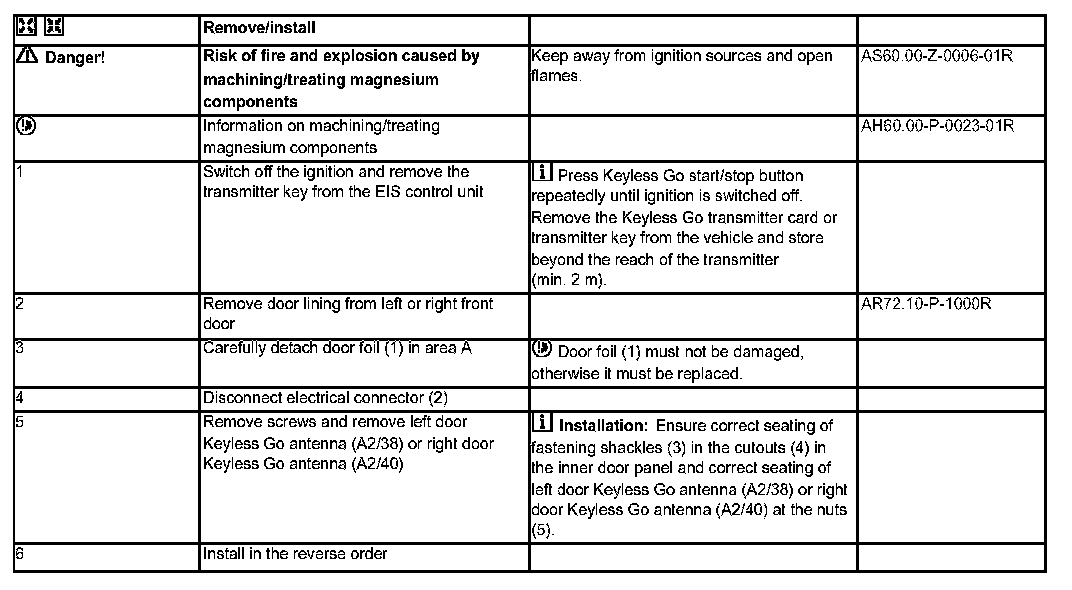

Steps 1 - 6:
