Voice Activation Module: Service and Repair

AR82.70-P-0003TA Remove/Install Voice Control System Control Unit
- with CODE (813) Voice control system (VCS [SBS])







1 Disconnect ground cable of battery

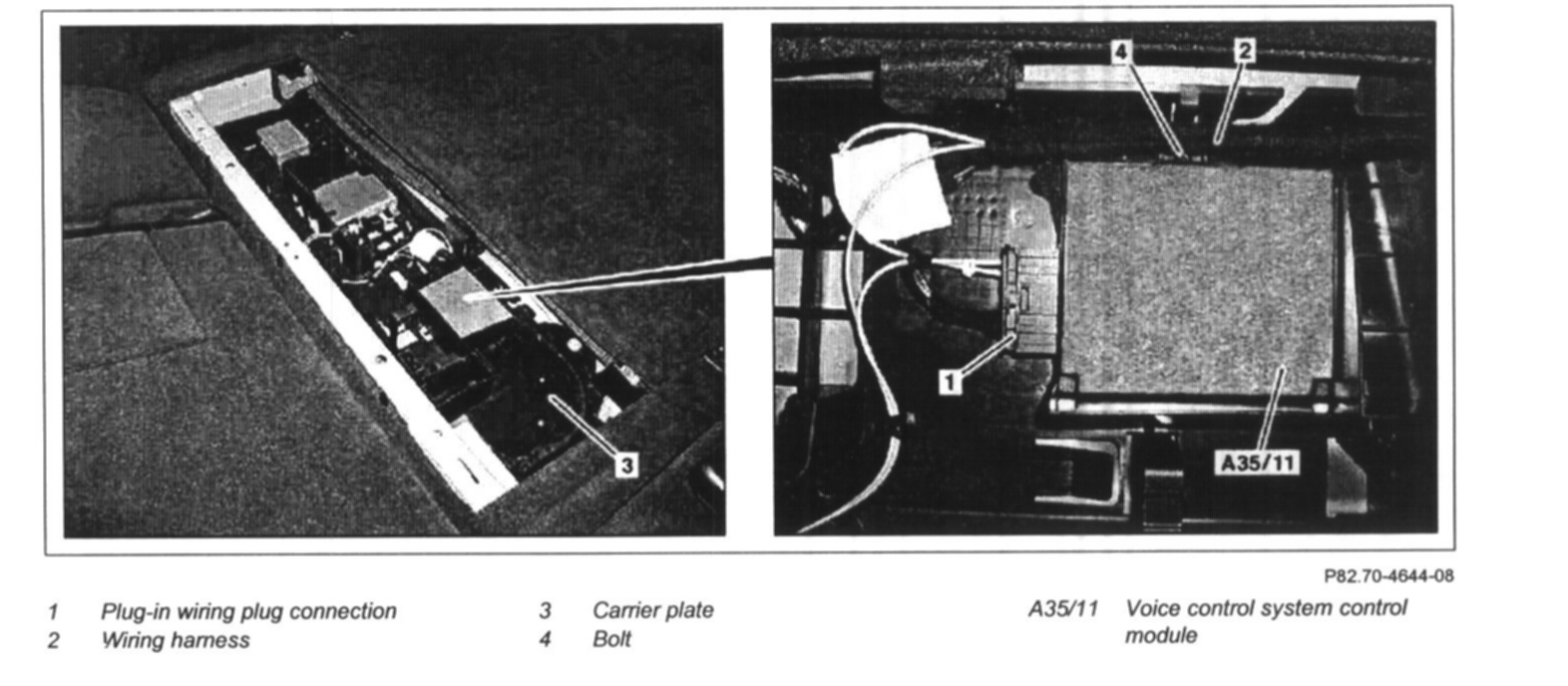

2 Remove front section of load compartment floor
3 Disconnect electrical connector (1)

CAUTION: Release electrical connector (1) locking mechanism with care, risk of breaking locking mechanism

4 Cover fiber optic cable

NOTE: Fiber optical cable is integrated in electrical connector (1)

5 Unclip wiring harness (2) from carrier plate (3) and lift until screw (4) is accessible
6 Unscrew screw (4)
7 Remove voice control system control module (A35/11)
8 Install in the reverse order
