AR05.20-P-7201TT Remove/Install Camshafts



AR05.20-P-7201TT Remove/install camshafts
- Camshaft adjuster for exhaust camshafts

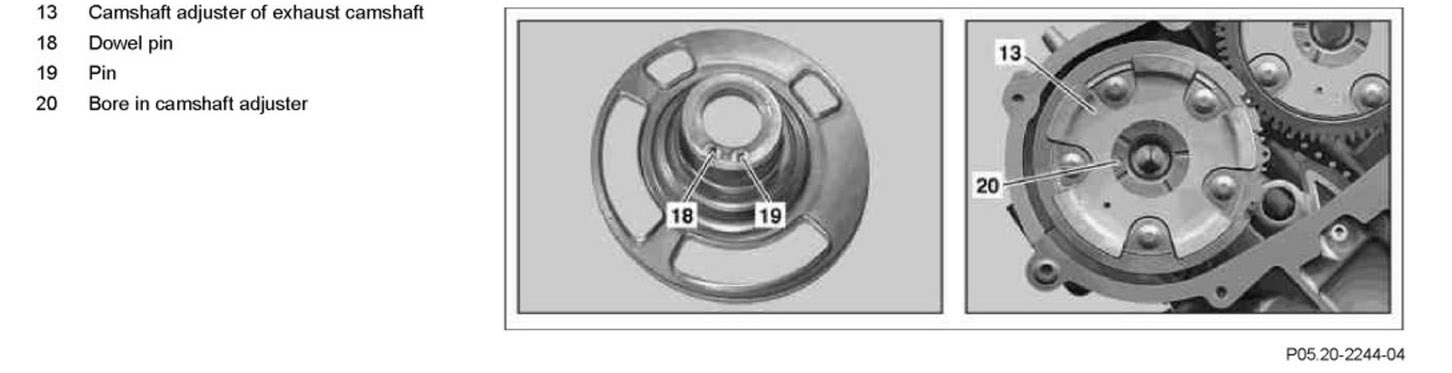

Component Identification:

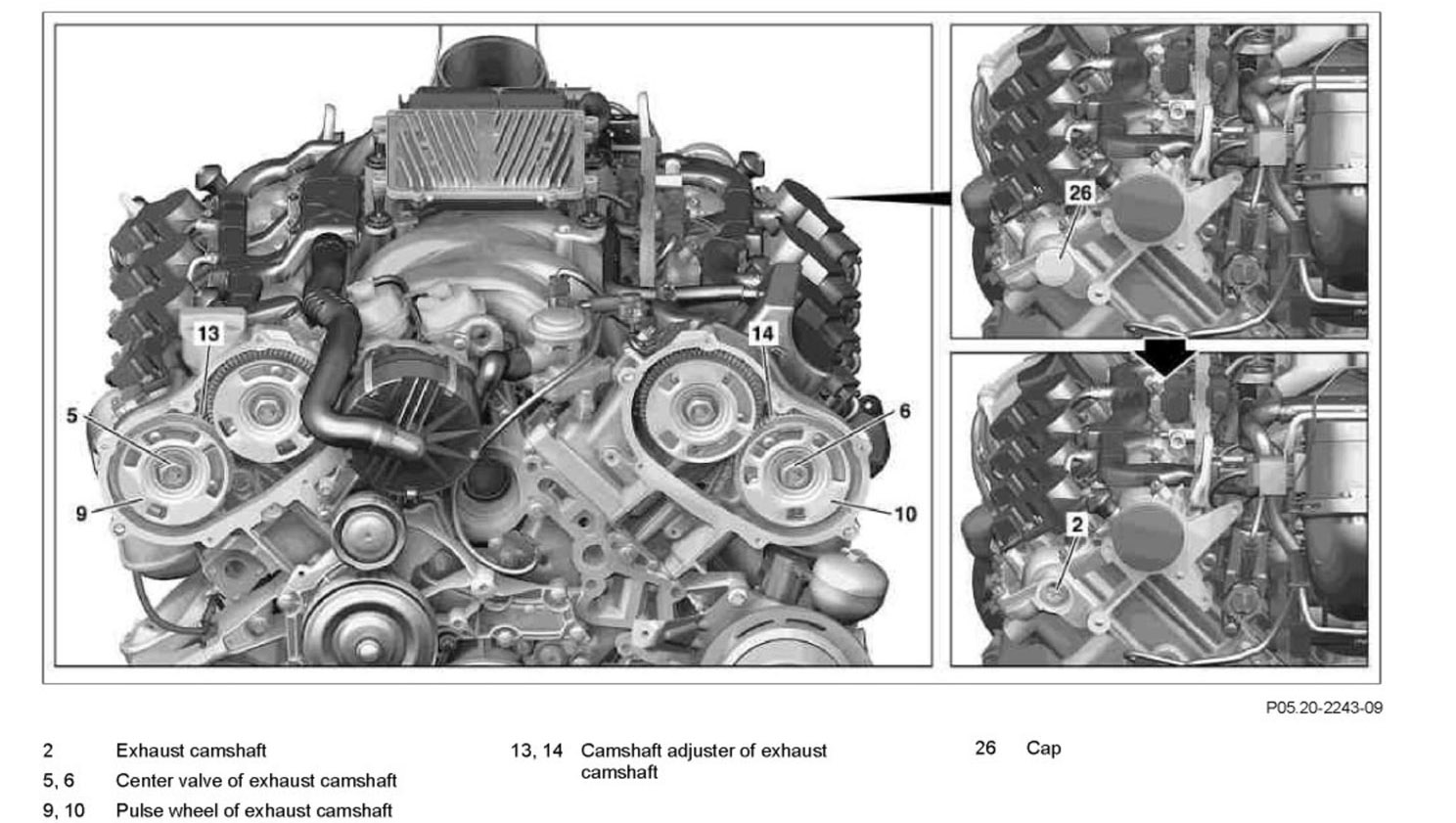

Component Identification:

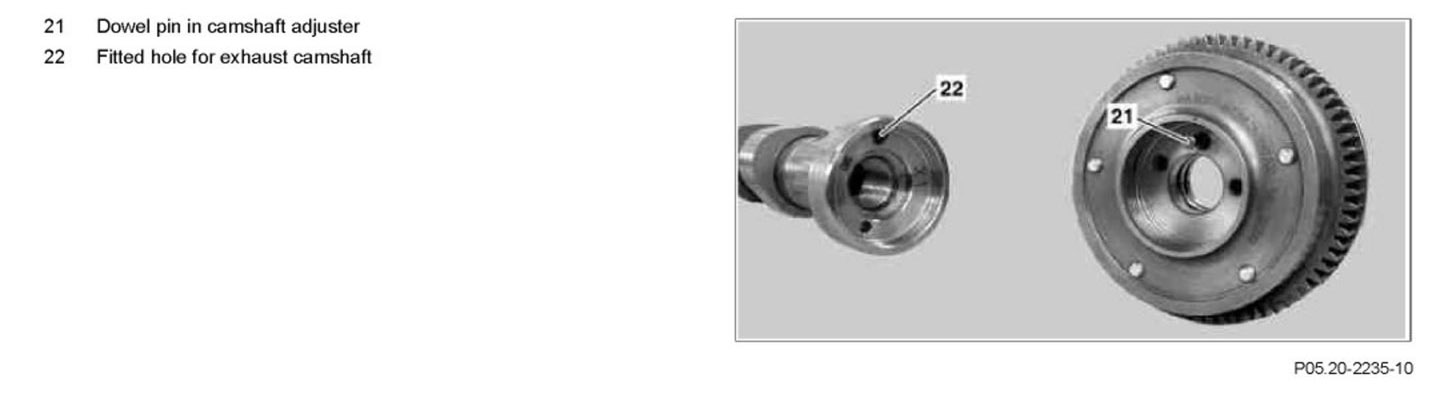

Component Identification:

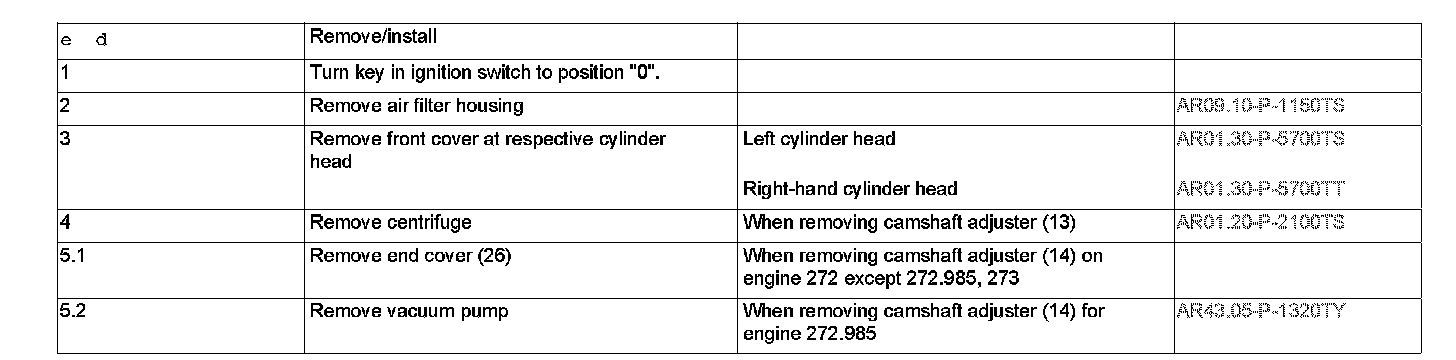

Steps 1 - 5.2:

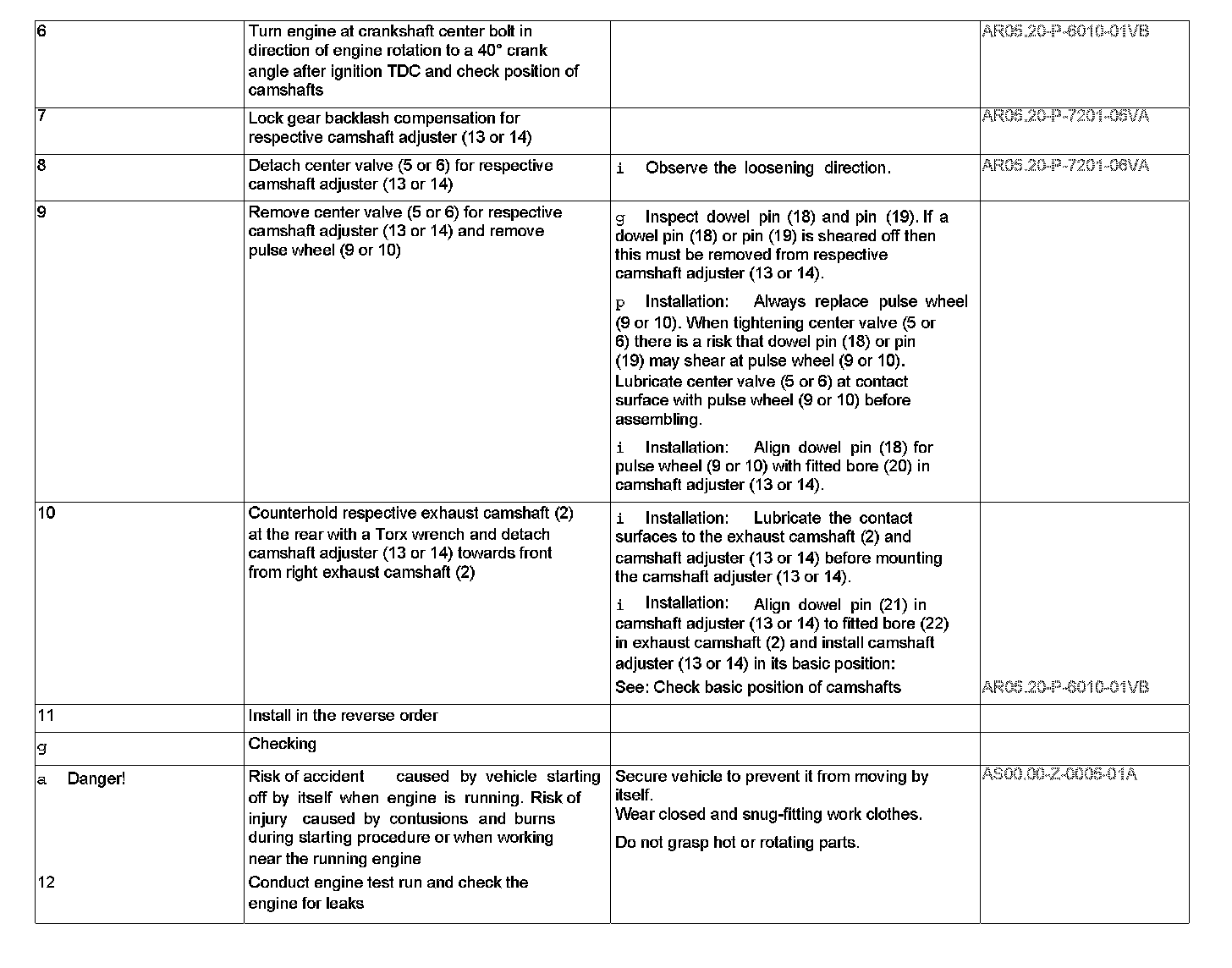

Steps 6 - 12:
