AR01.00-P-1200TS Testing Compression Pressure
AR01.00-P-1200TS Testing Compression Pressure
AR01.00-P-1200TS Test compression pressure

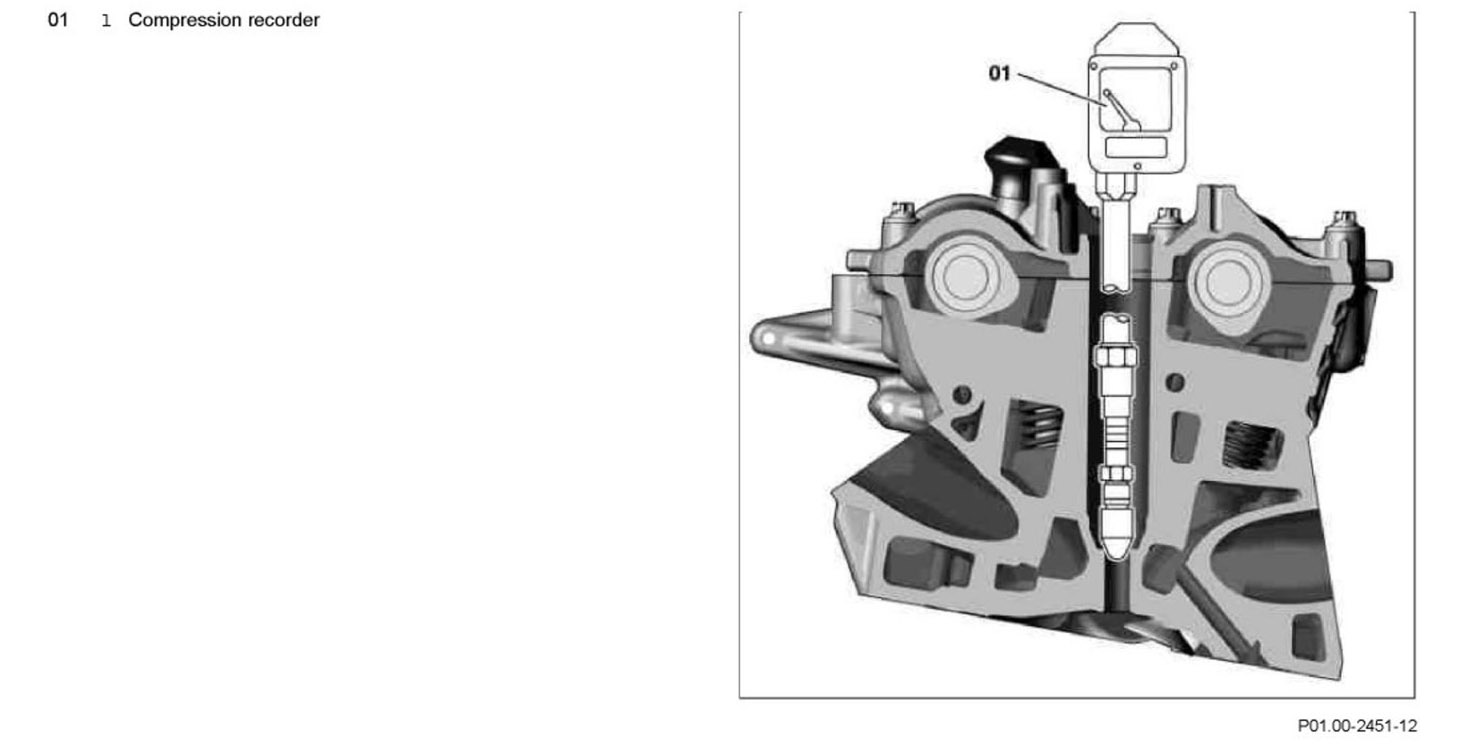

Component Identification:

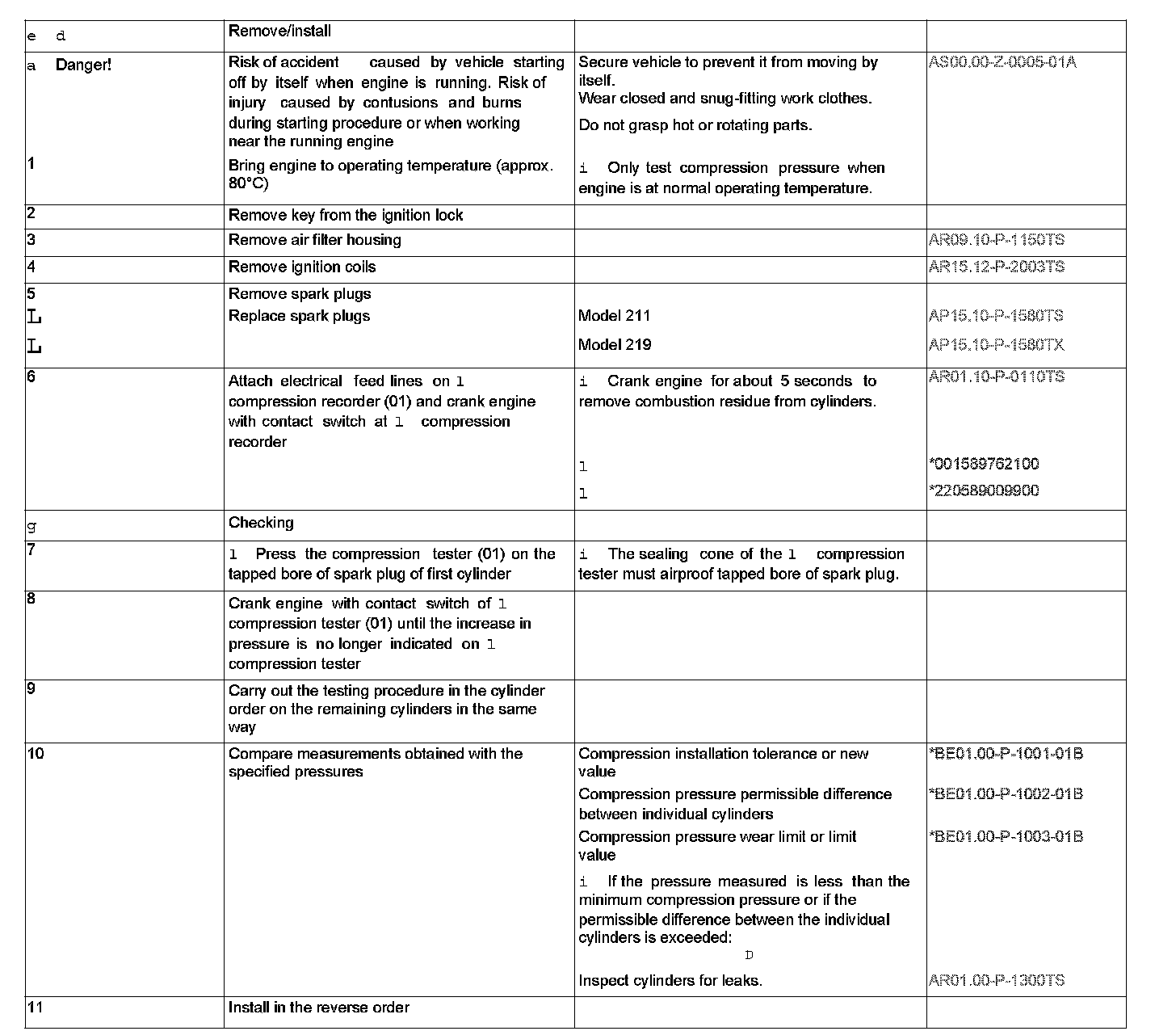

Steps 1 - 11:

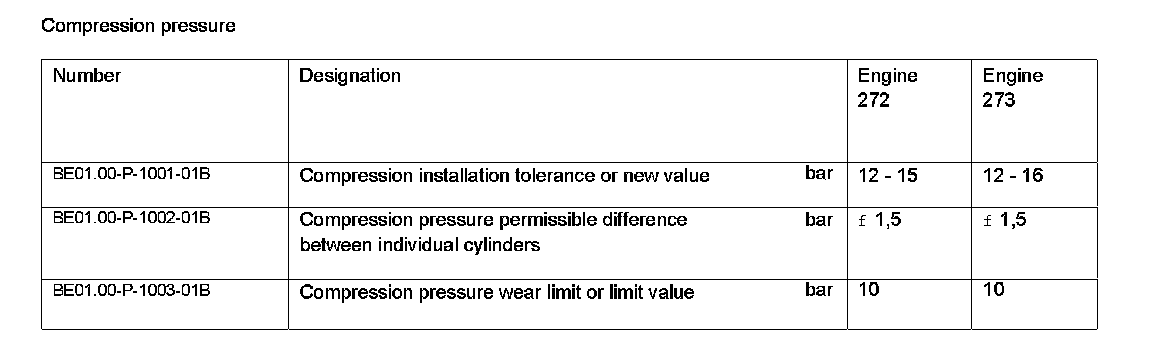

Compression pressure:

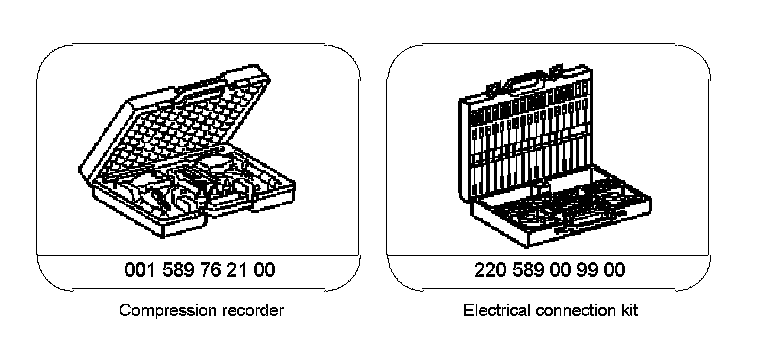

Special Tools:
