AR05.10-P-8127TT Remove/Install Tensioning Rail



AR05.10-P-8127TT Remove, Install Tensioning Rail

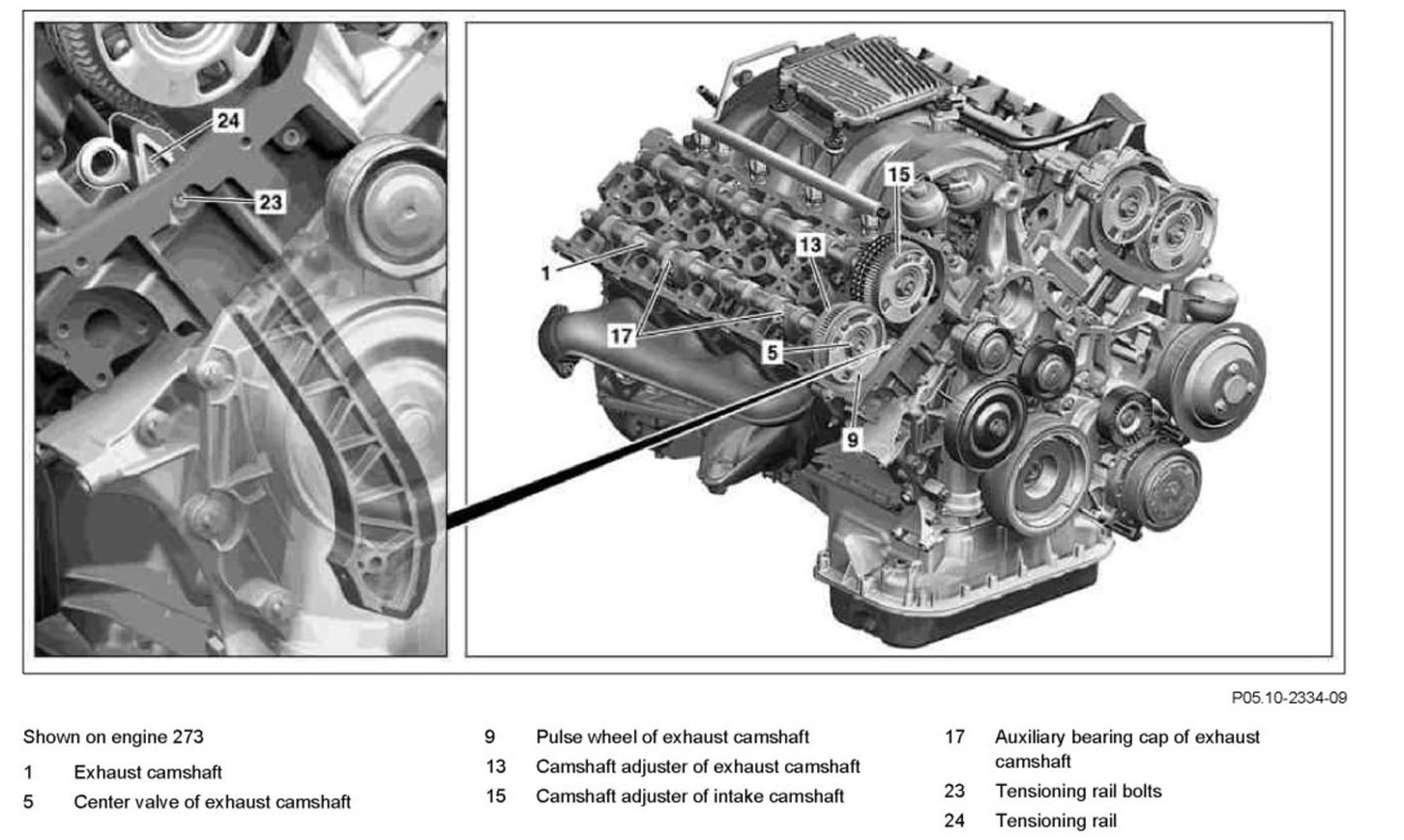

Component Identification:

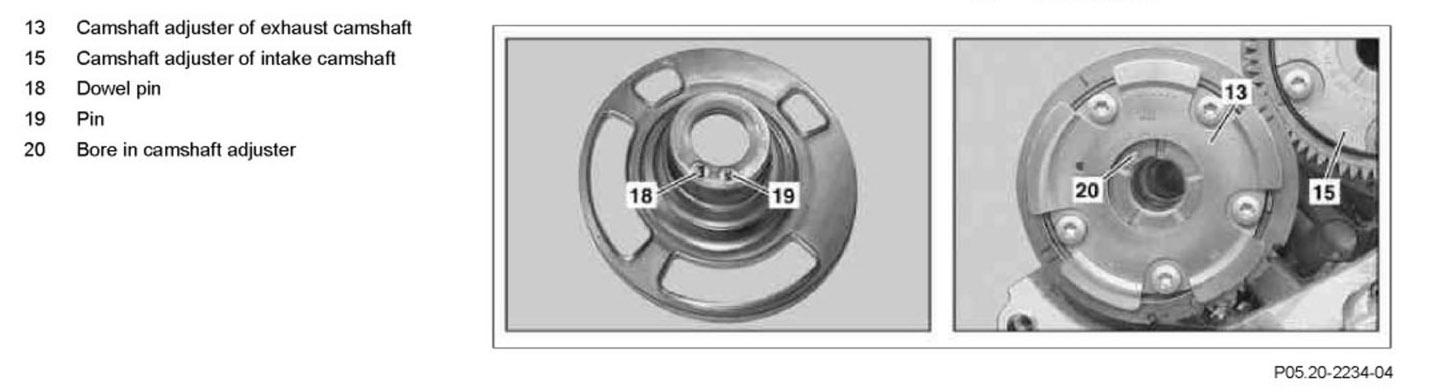

Component Identification:

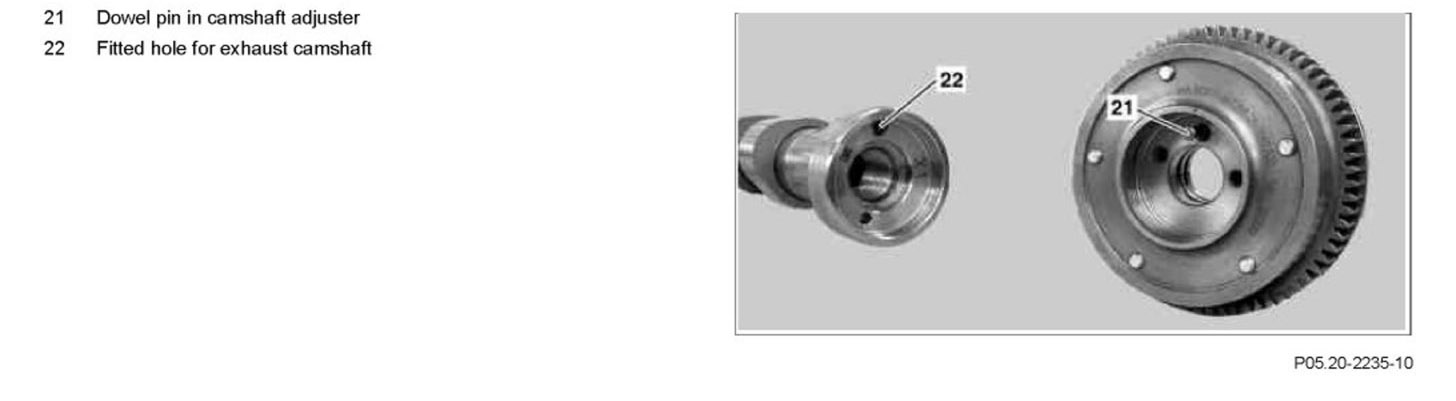

Component Identification:

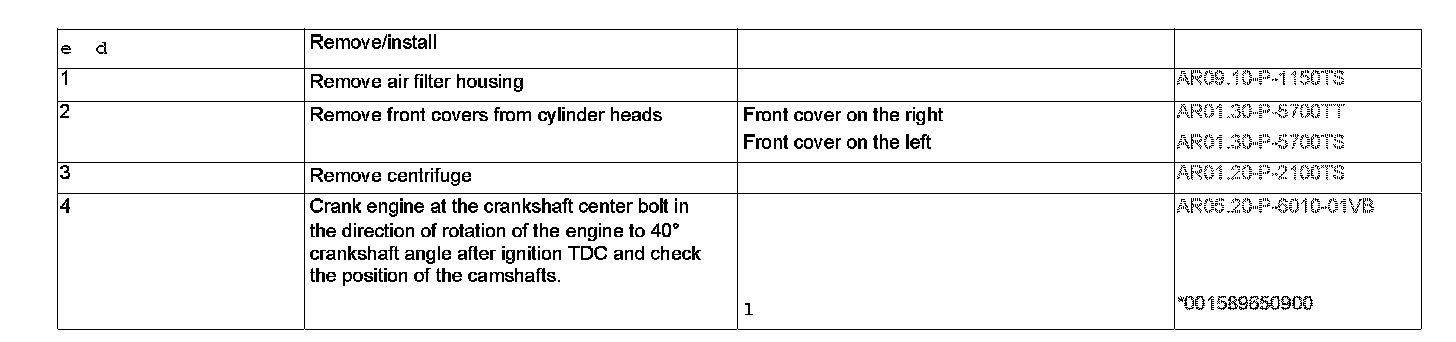

Steps 1 - 4:

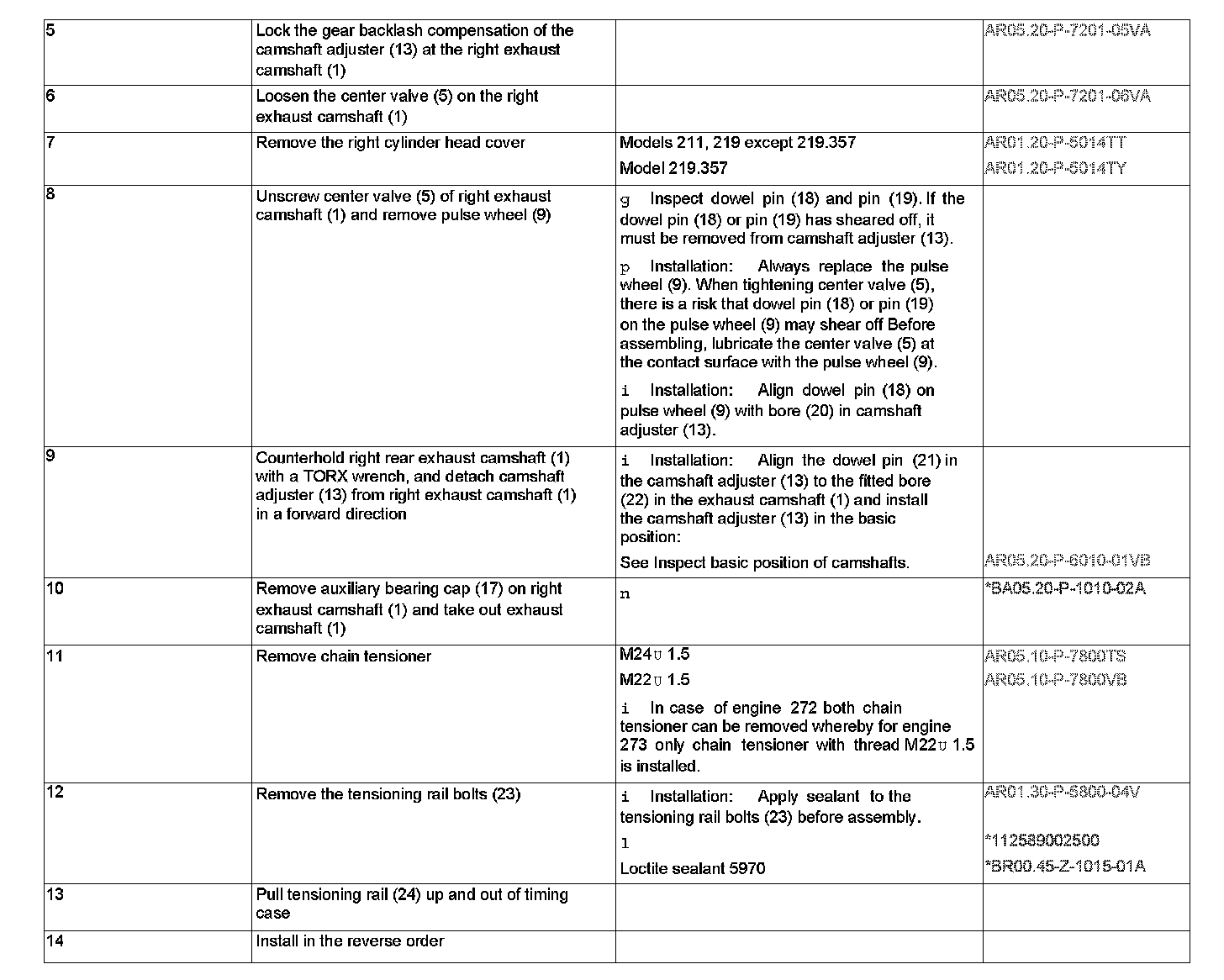

Steps 5 - 14:

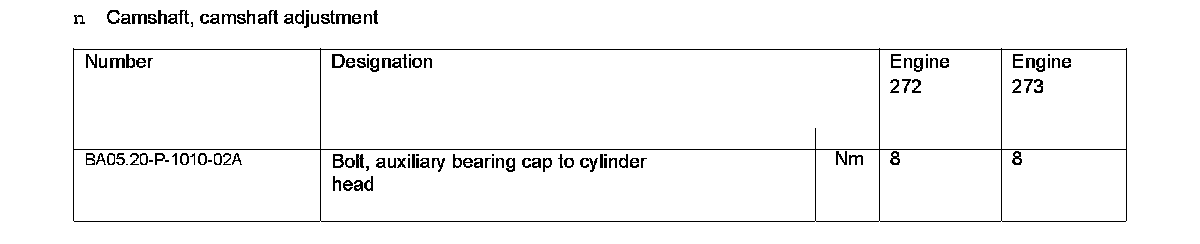

Camshaft, Camshaft Adjustment:

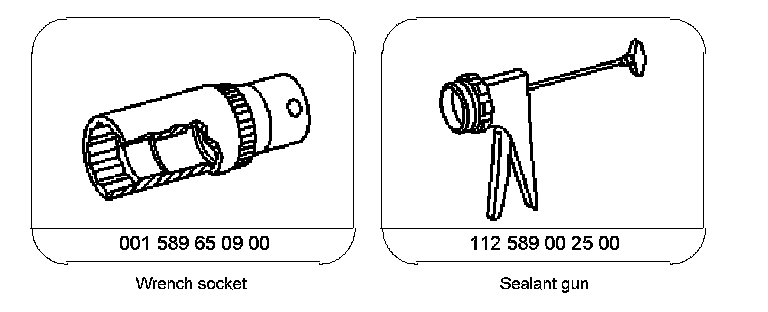

Special tools:

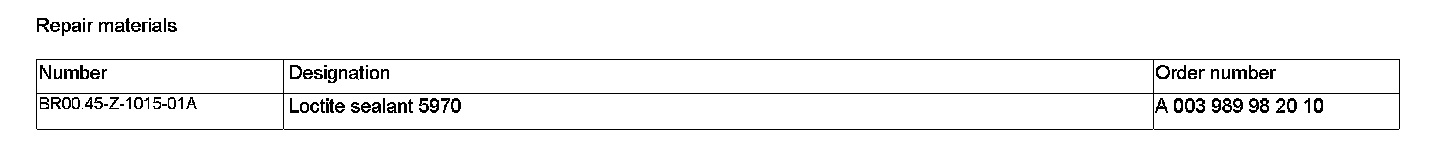

Repair materials:
