Balance Shaft: Service and Repair
AR03.20-P-1000TS Removing/installing the balancing shaft
- Engine removed and transmission taken off engine

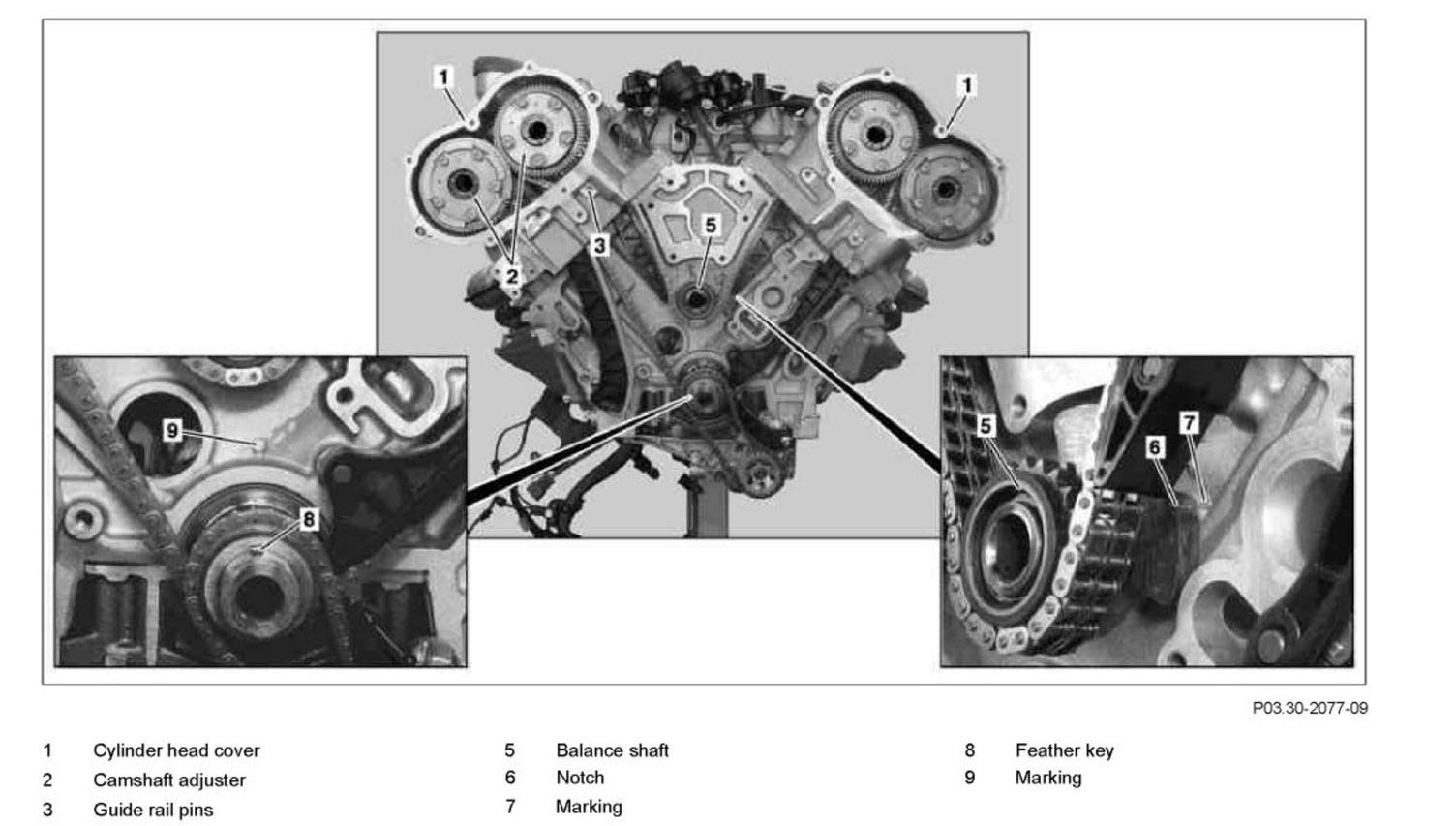

Component Identification:

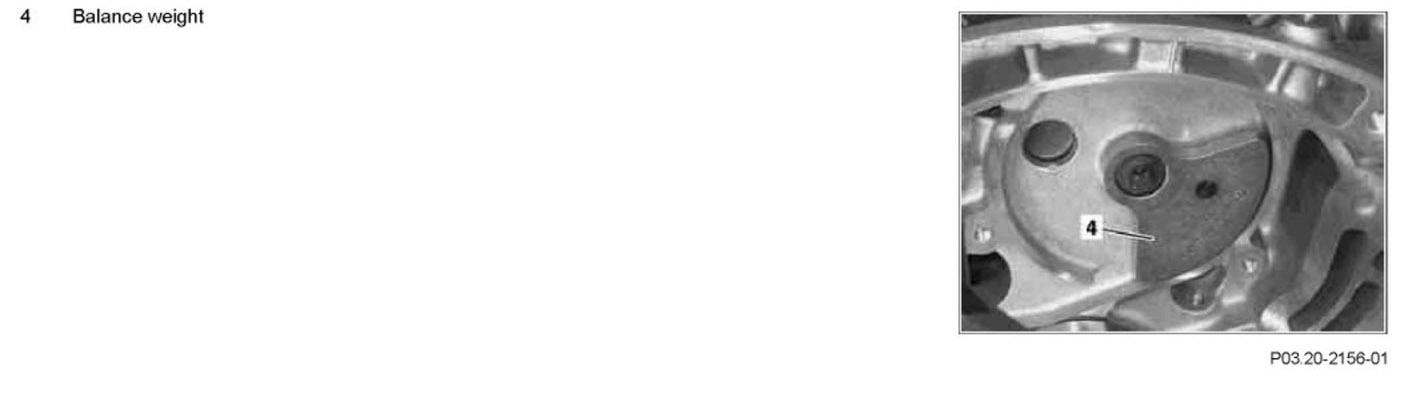

Component Identification:

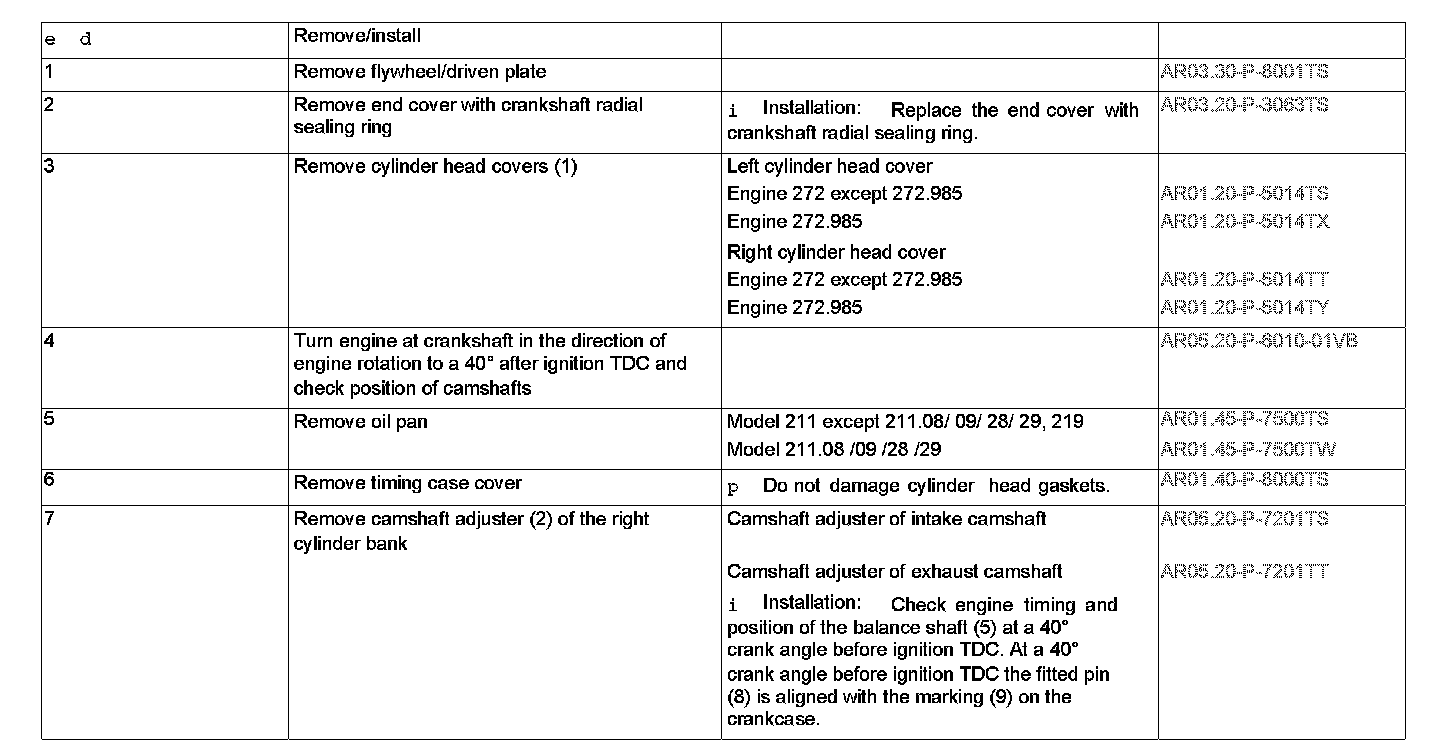

Steps 1 - 7:

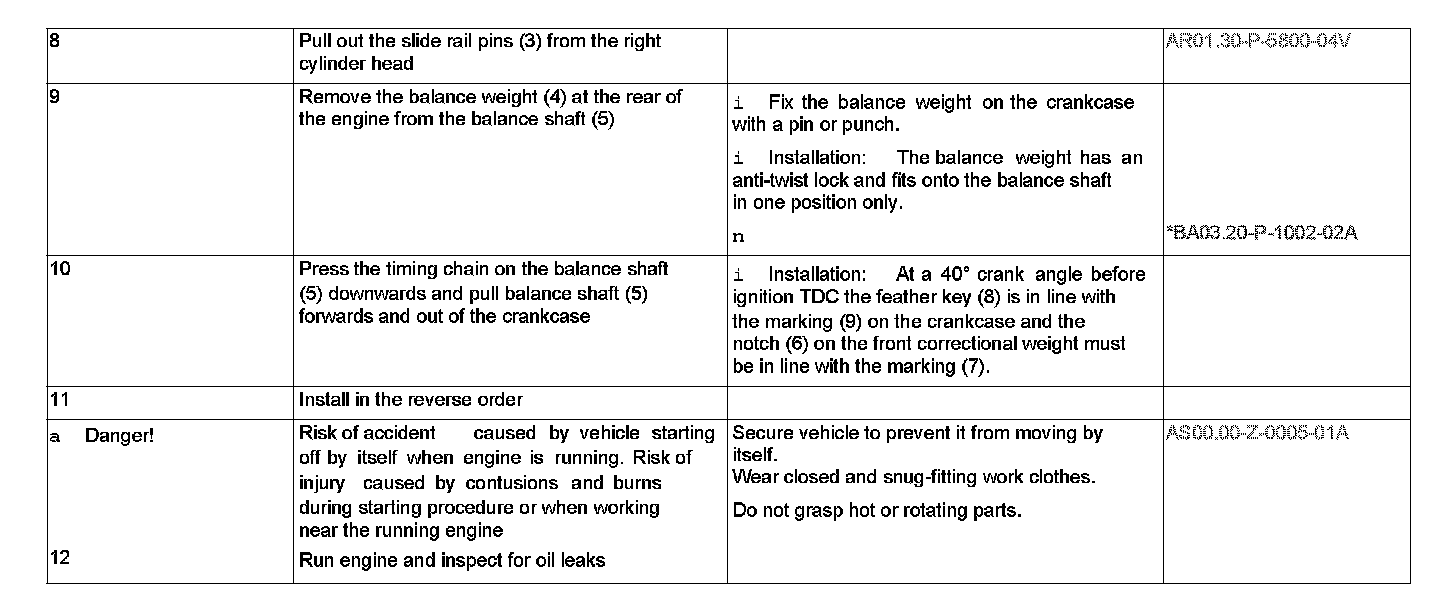

Steps 8 - 12:

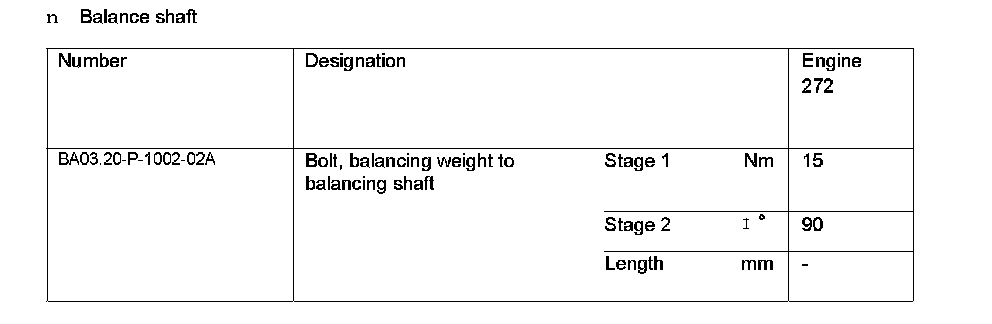

Balance Shaft:
AR03.20-P-1000TS Removing/installing the balancing shaft
- Engine removed and transmission taken off engine
