Home >> Mercedes Benz >> 2008 >> E 350 4MATIC Wagon (211.287) V6-3.5L (272.972) >> Repair and Diagnosis >> Body and Frame >> Frame >> Subframe >> Front Subframe >> Service and Repair >> Removal and Replacement >> AR33.10-P-0100TW Remove/ Install Front Axle

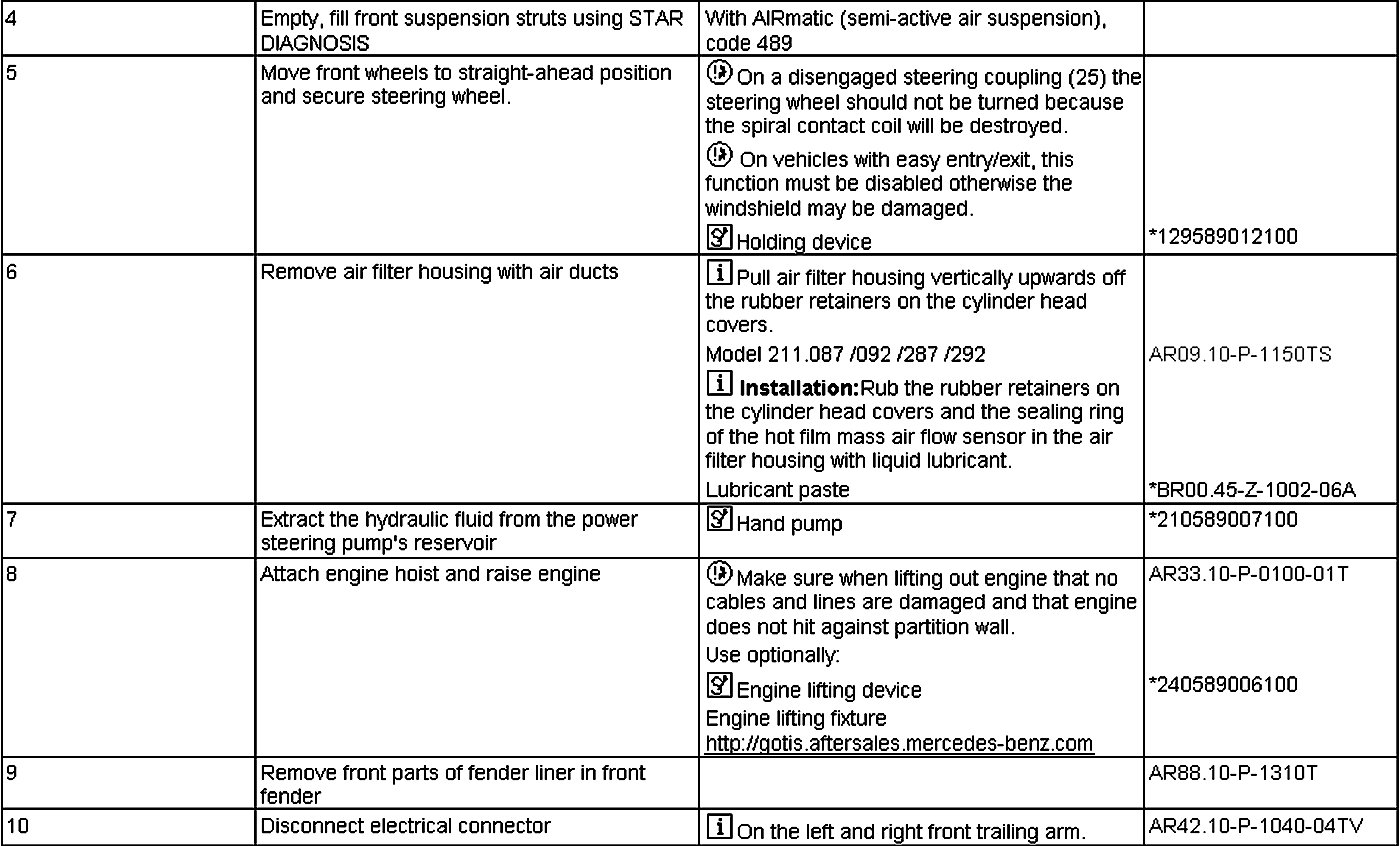

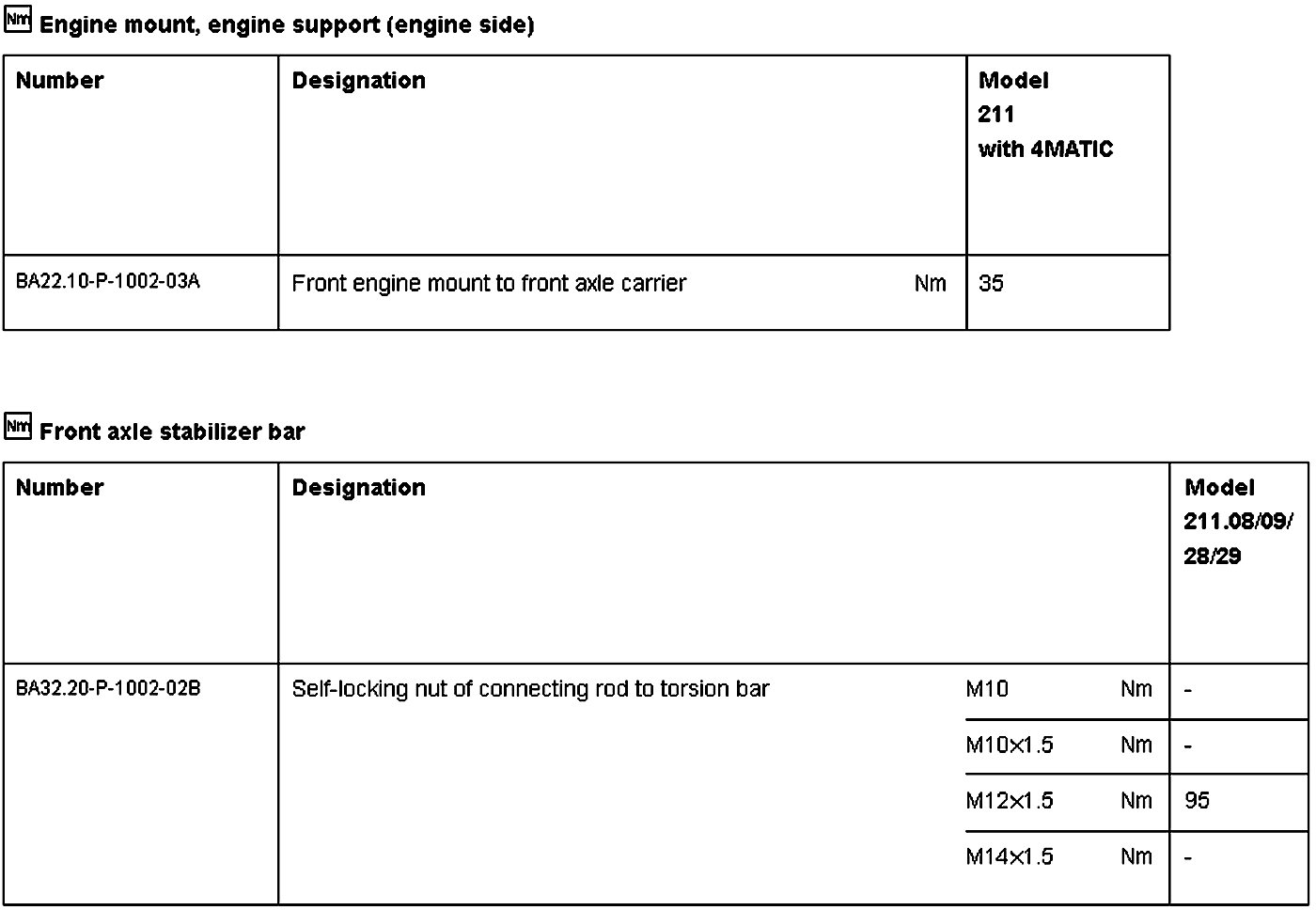

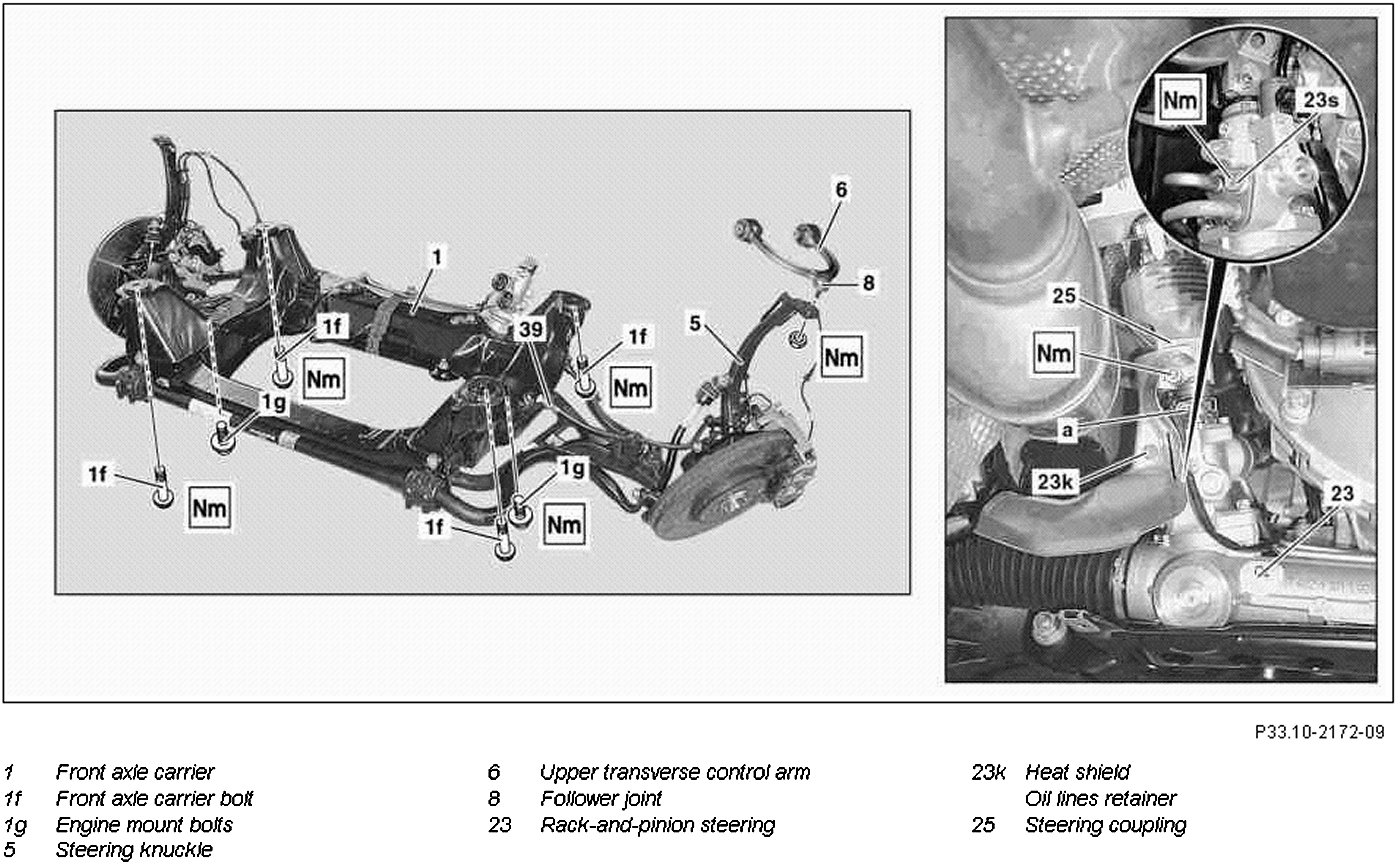

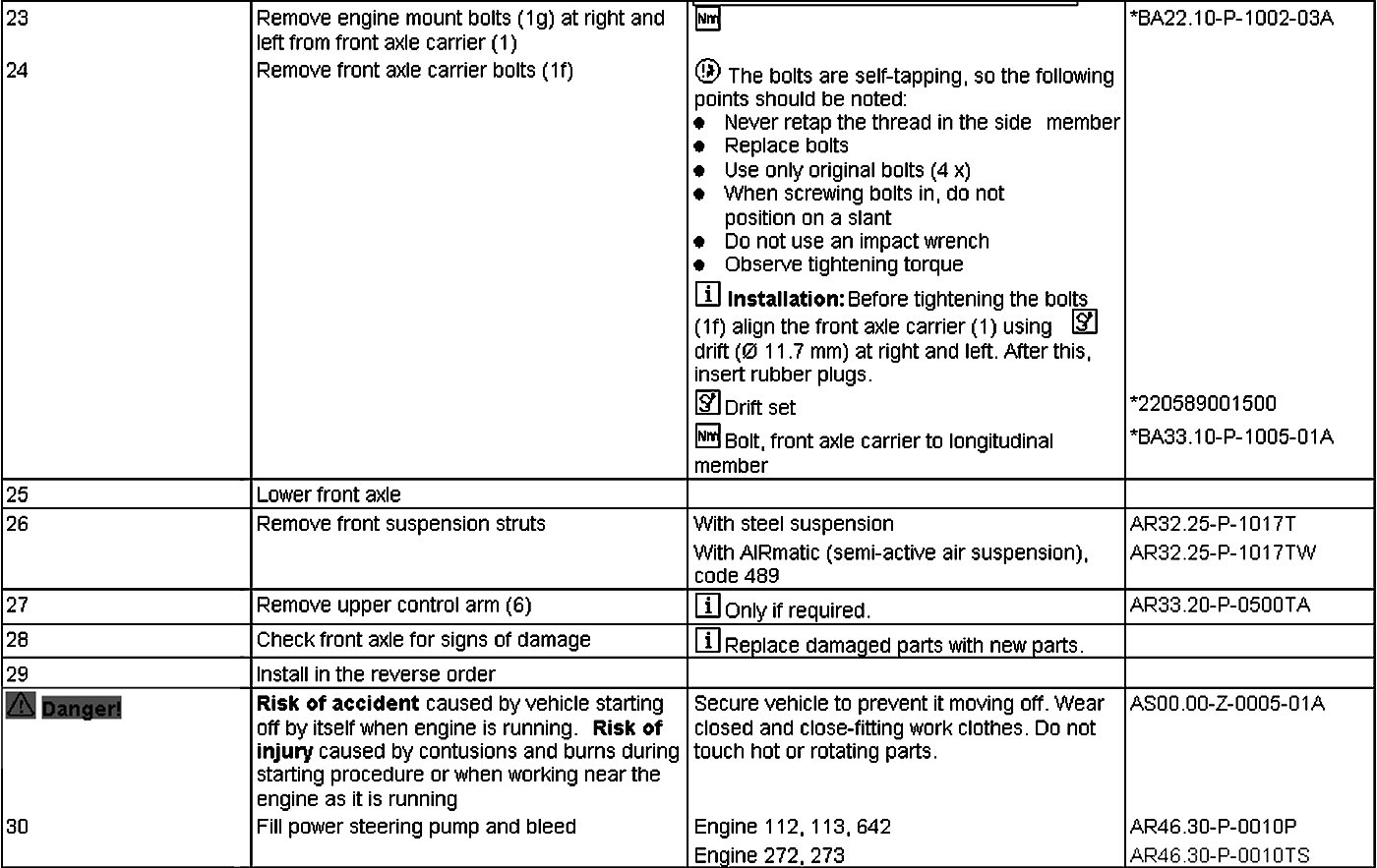

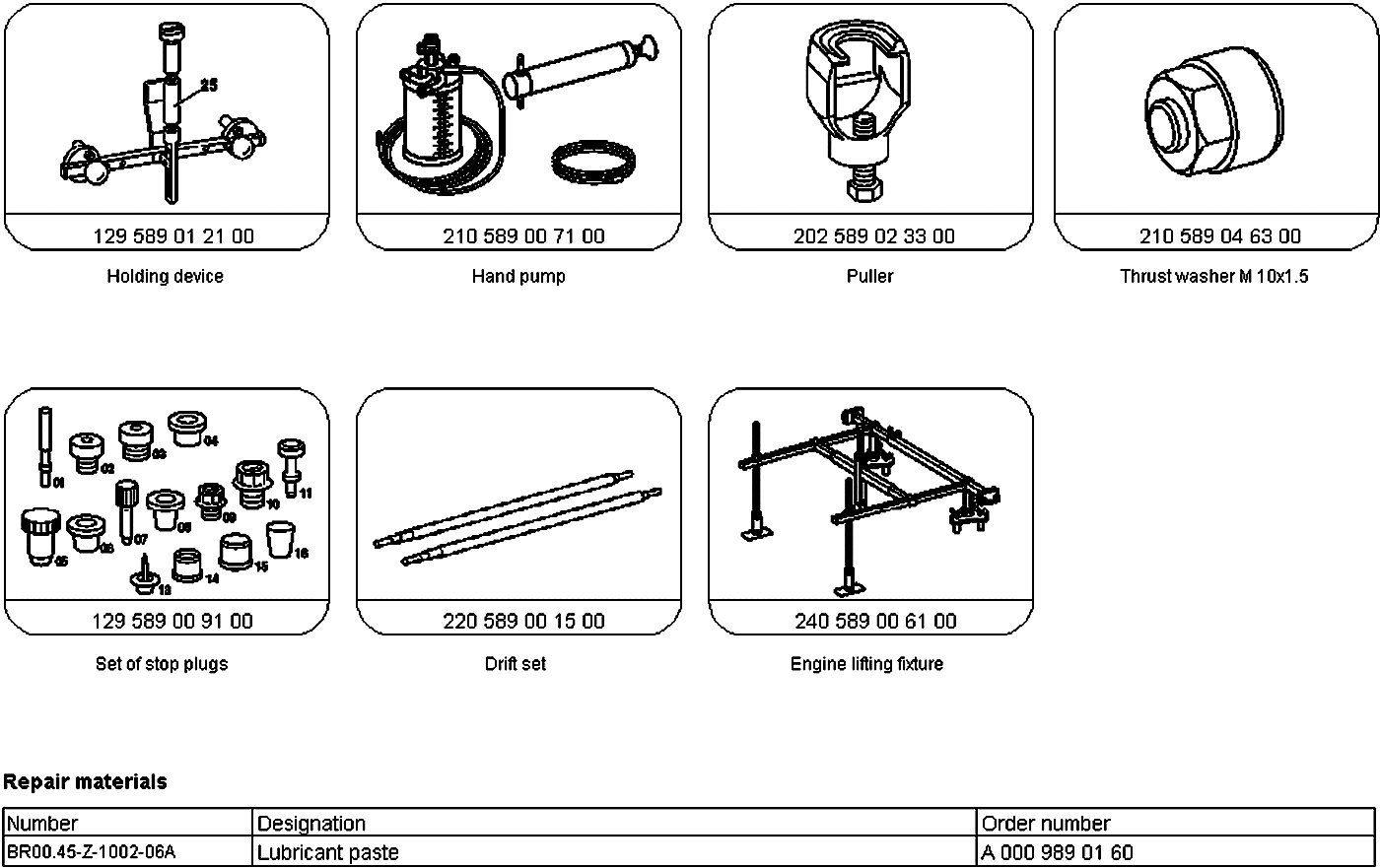

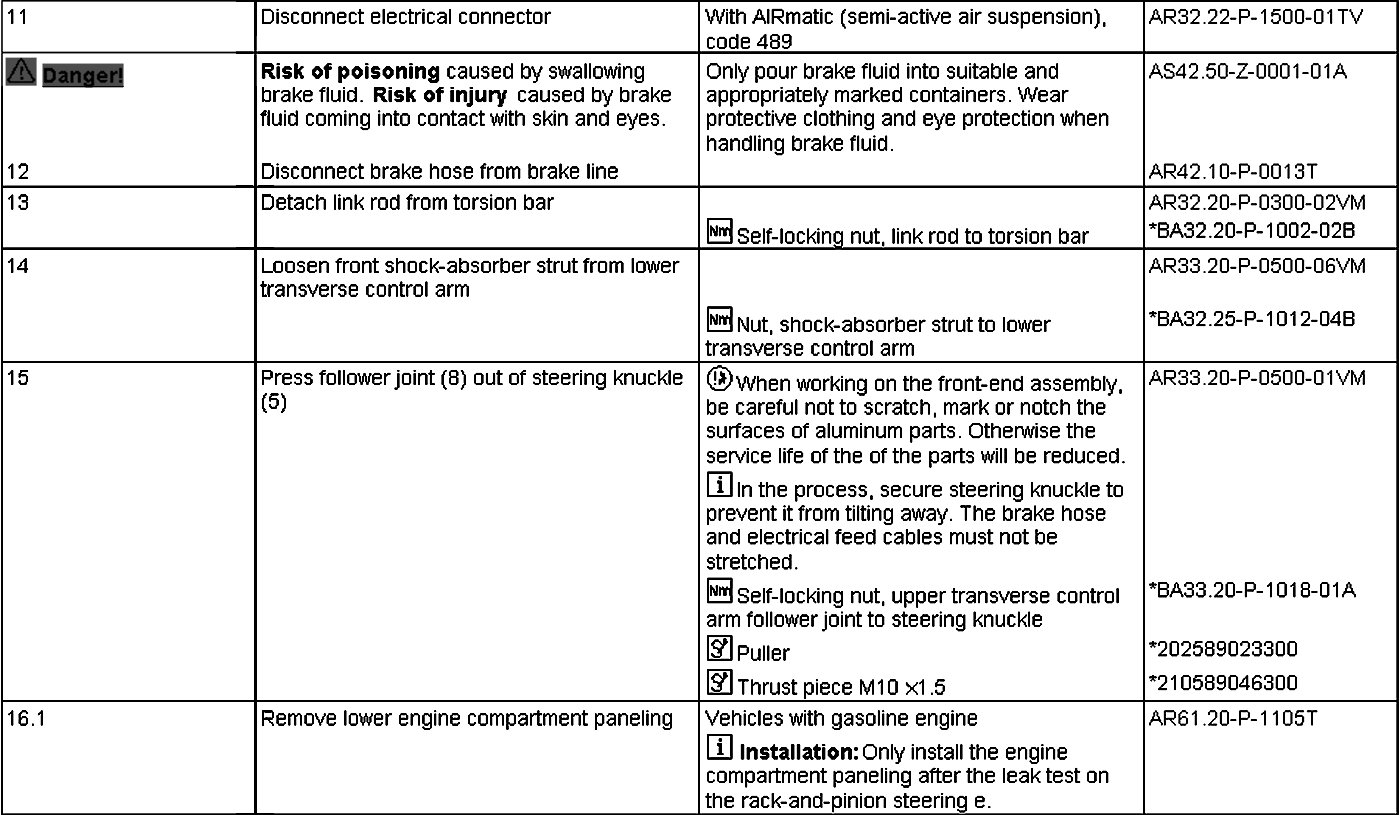

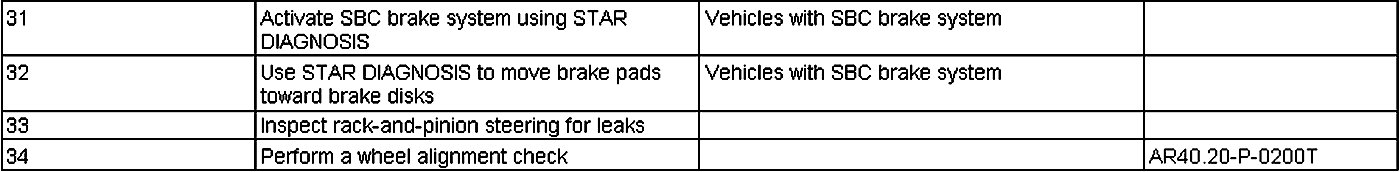

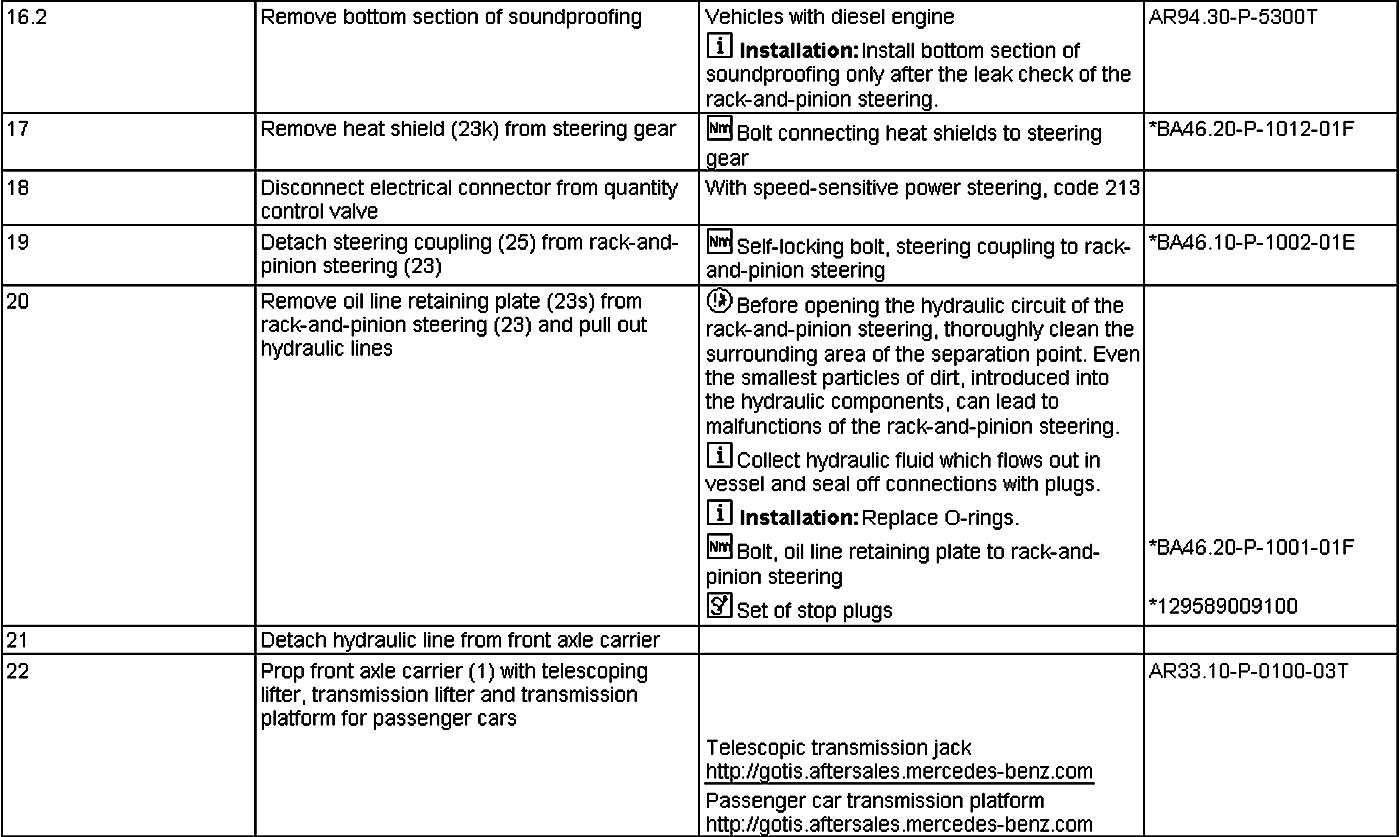

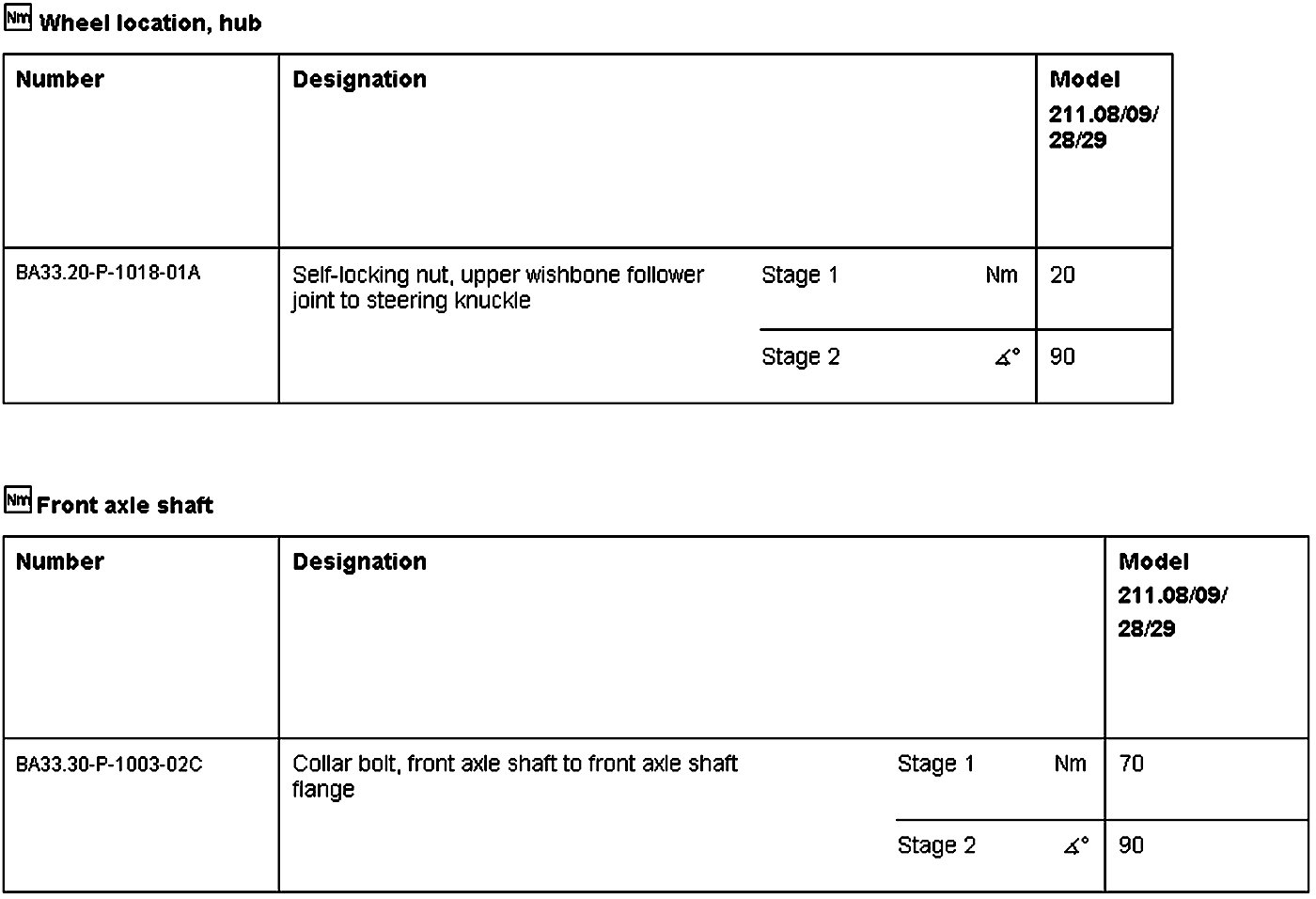

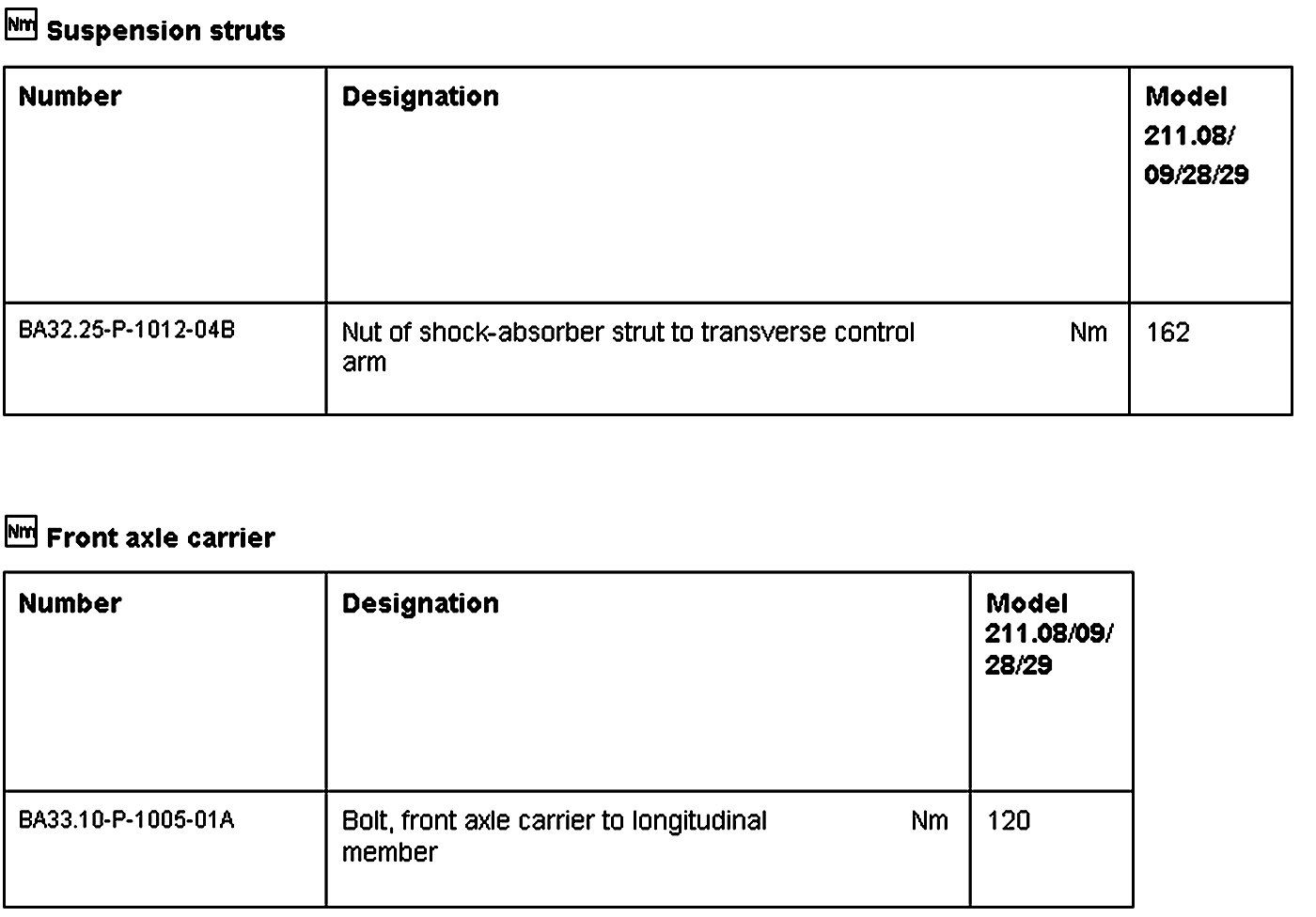

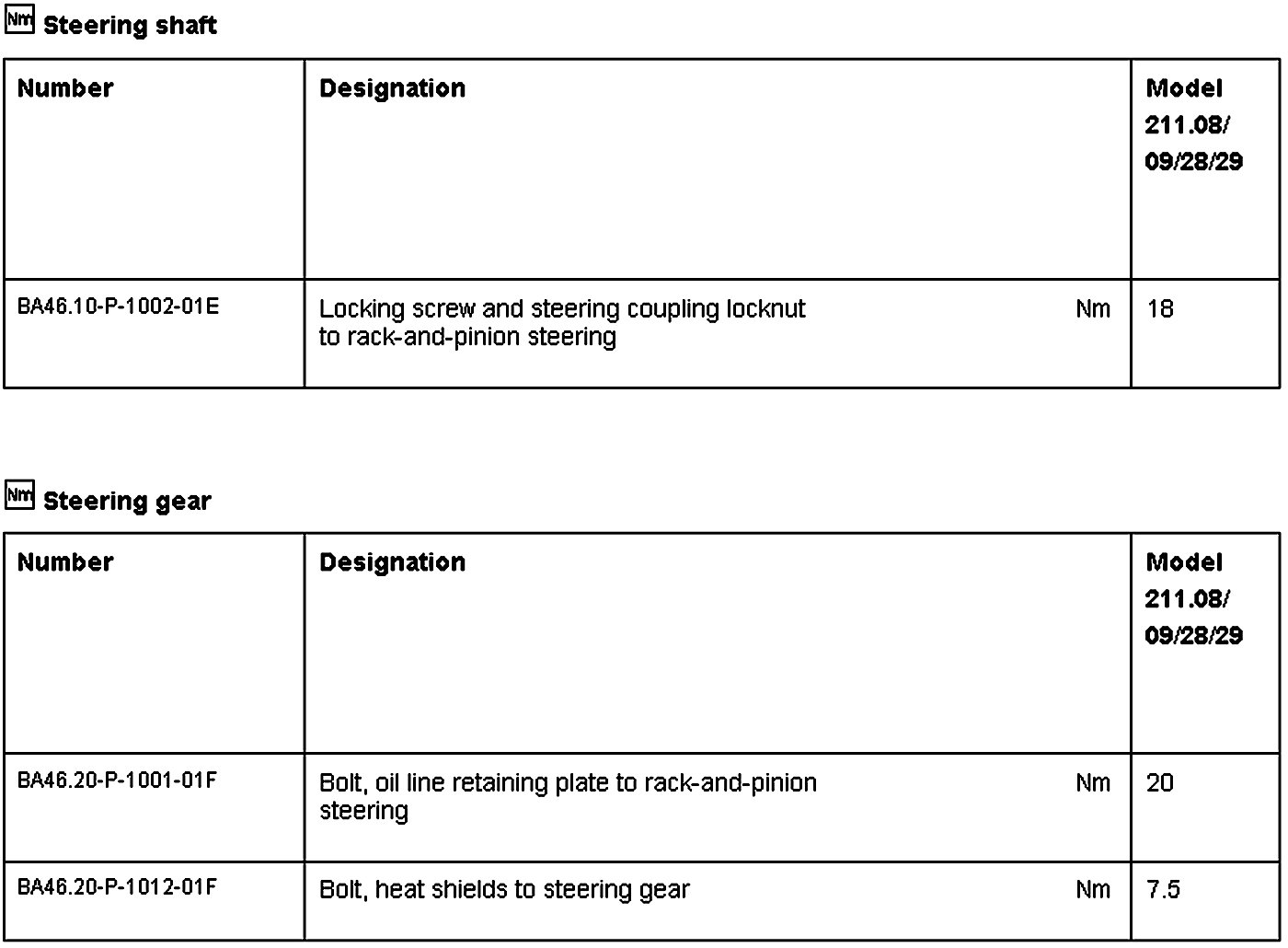

AR33.10-P-0100TW Remove/ Install Front Axle



AR33.10-P-0100TW Remove/ Install Front Axle
