FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2008
>>
E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Description and Operation
>>

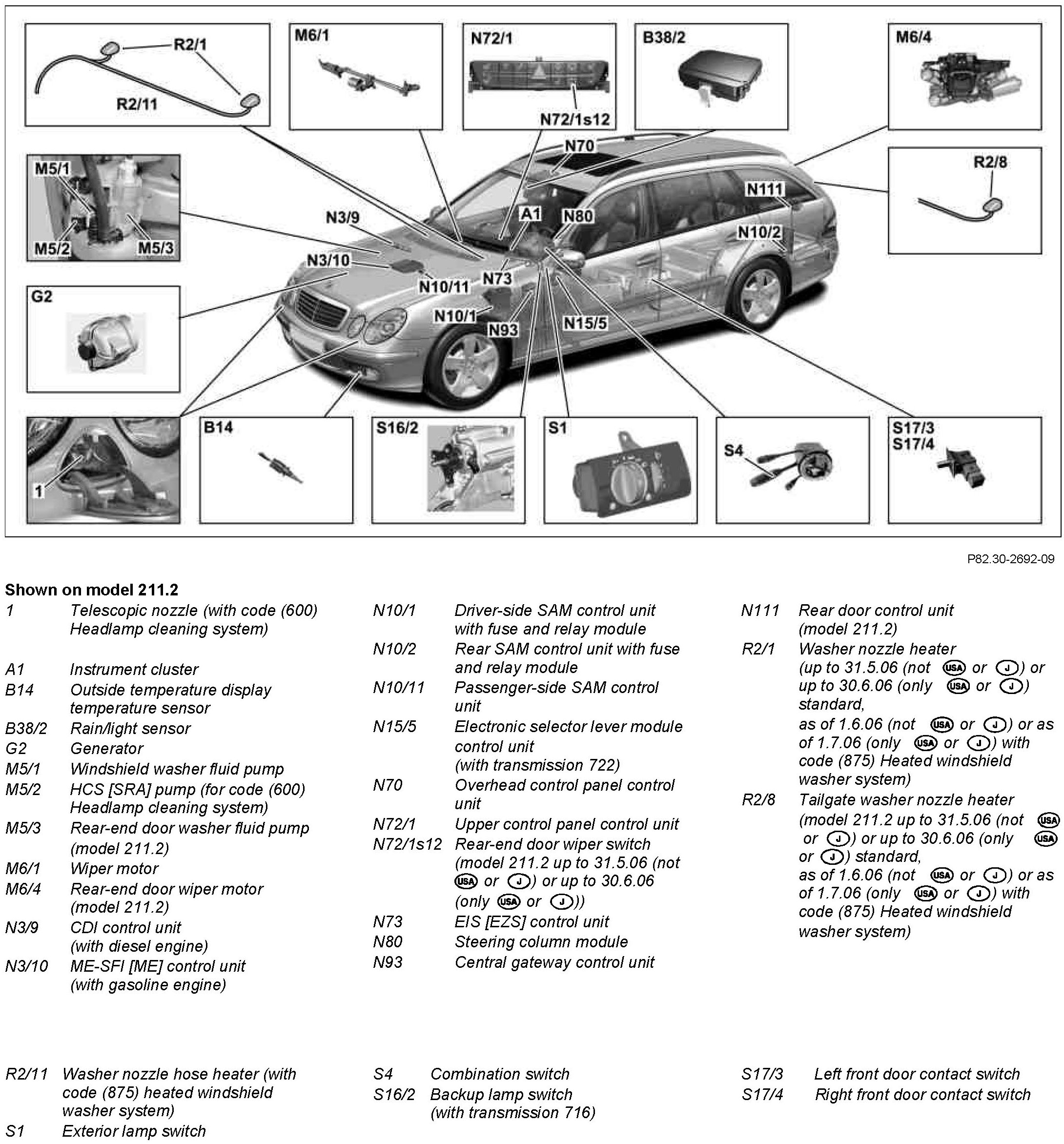

GF82.30-P-0003-01T Wiper System (WSA), Location of Components
GF82.30-P-0003-01T Wiper System (WSA), Location of Components
GF82.30-P-0003-01T Wiper System (WSA), Location Of Components
Component Identification:
