AR67.20-P-2100T Remove, Install Detachable Parts When Replacing Rear Window



AR67.20-P-2100T Remove, Install Detachable Parts When Replacing Rear Window

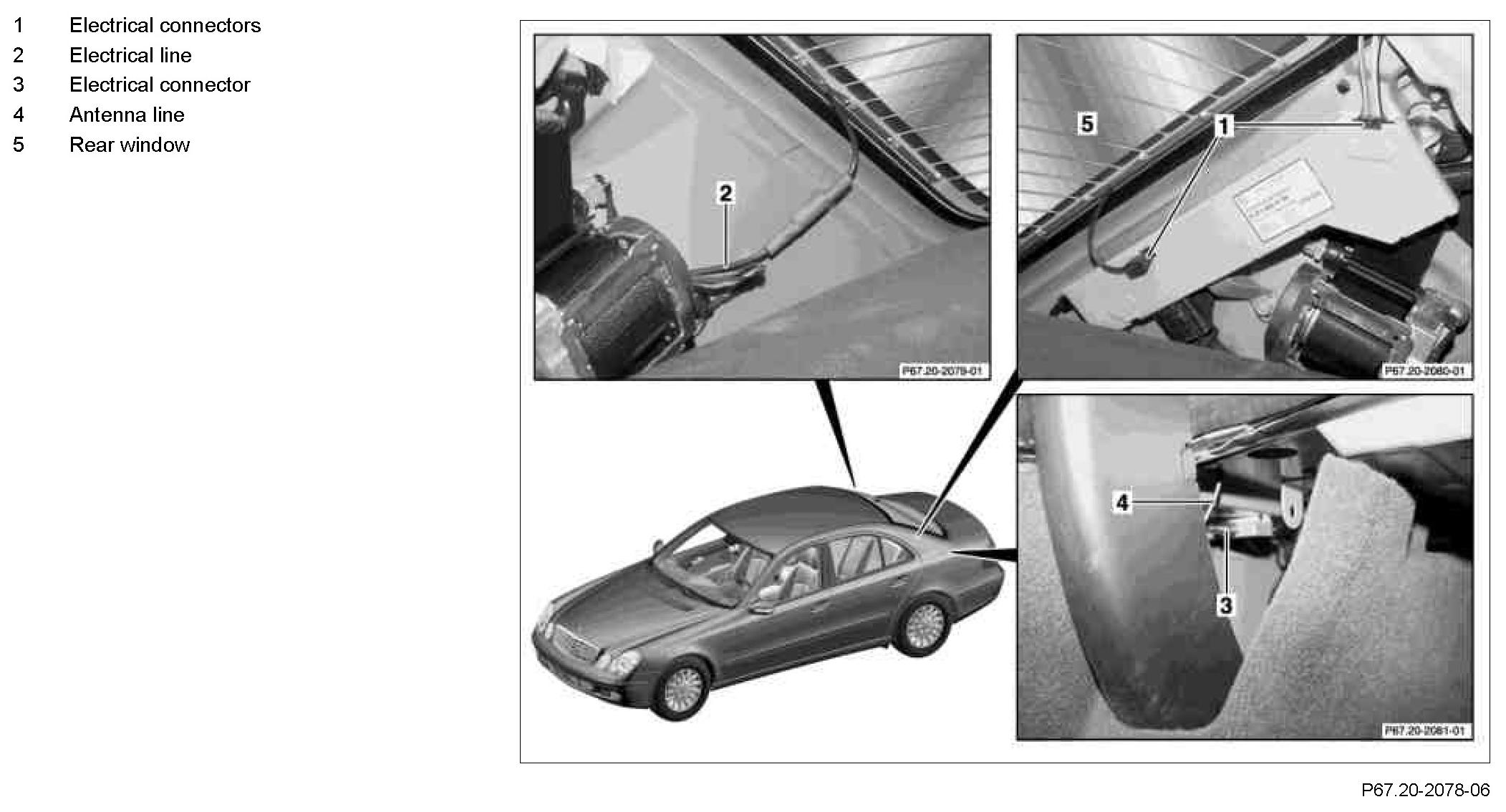

Component Identification:

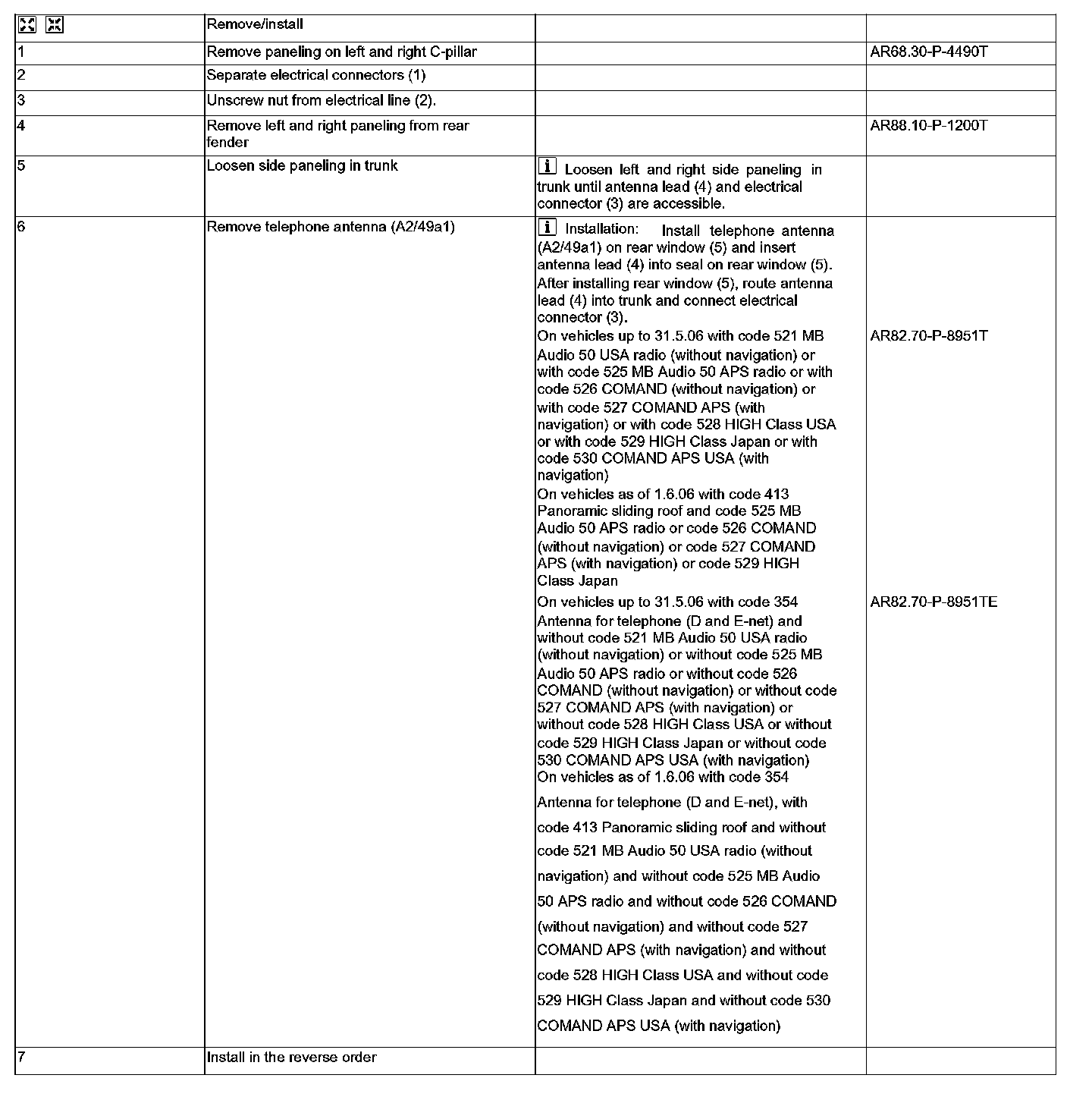

Steps 1 - 7:
