AR41.10-P-0085-02T Measure Absolute Angle at Front and Rear Propeller Shafts

AR41.10-P-0085-02T Measure absolute angle at front and rear propeller shafts
The vehicle must be on its wheels for the measurement. All four angles should be measured in succession without interruption. An angle that has already been measured can be measured a second time if required. To do this, with the Measurement menu displayed, press the STEP button repeatedly until the display indicates Ready to measure the relevant angle.

Measurement - Angle 2: front propeller shaft

Component Identification:

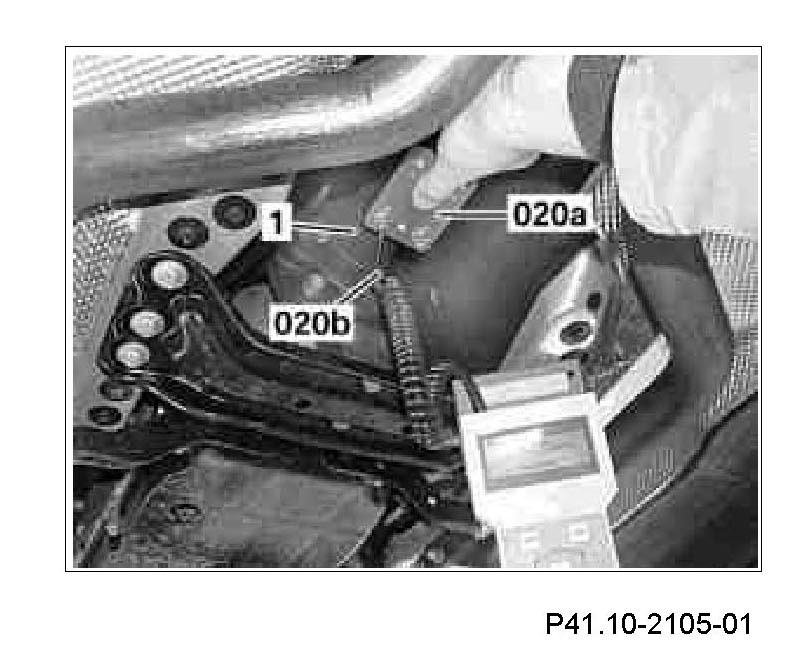

1 Clean contact surfaces for sensor (020a) on front propeller shaft (1)
2 Position sensor (020a) horizontally on front propeller shaft (1) and press on firmly.

The spiral cable (020b) of the sensor (020a) must point in the direction of travel for each measurement. Otherwise the measurement will be inaccurate. If the sensor (020a) on the front propeller shaft (1) is not attached horizontally, the error message "Y-position error, sensor position ??" appears. The measured angle cannot be saved.

Shown on model 211 with engine 112

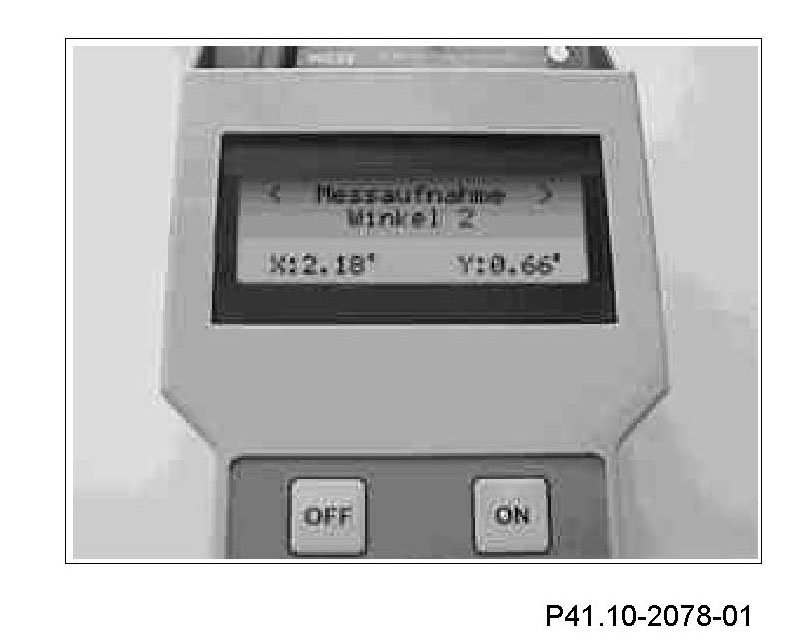

Measurement Values Screen For Angle 2: Display E.G. 2.18 Degrees:

The value measured is shown on the display.

3 Press SAVE button.

The values are saved.

Measurement values screen for angle 2: display e.g. 2.18 degrees

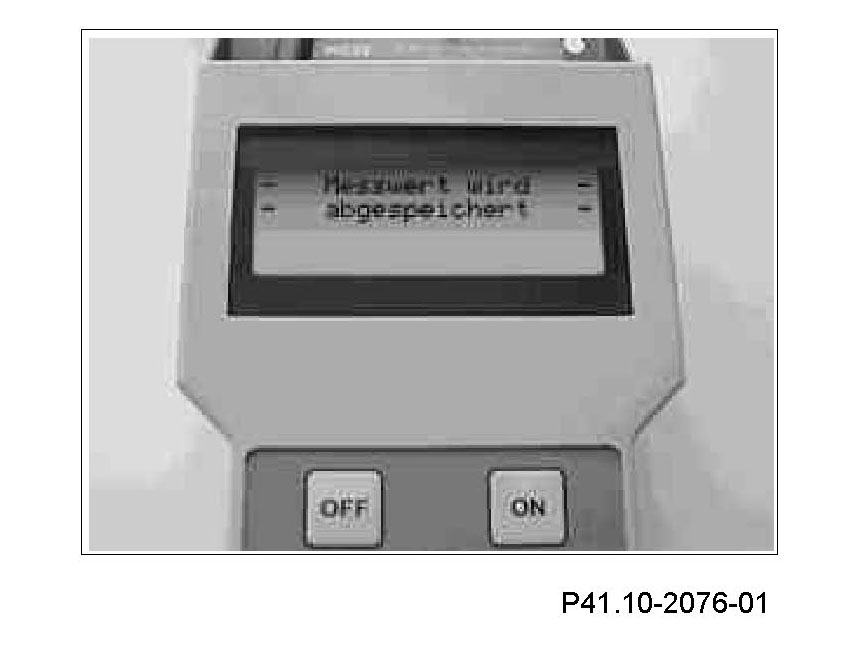

Confirmation Screen:

A confirmation message appears briefly.

Confirmation screen

Ready Screen For Angle 3:

The meter then indicates that it is ready to measure the next angle (angle 3).

4 Remove sensor (020a) from front propeller shaft (1).

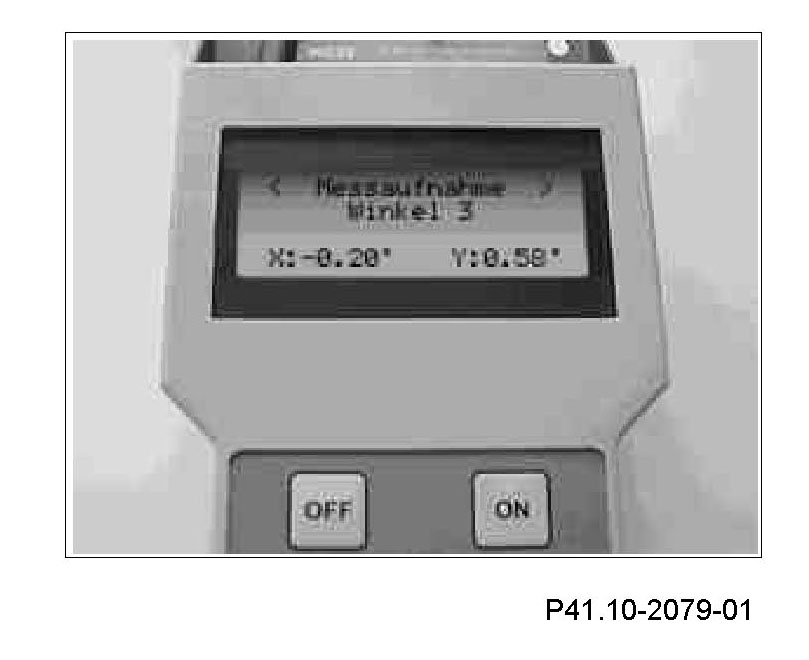

Ready screen for angle 3

Measurement - Angle 3: rear propeller shaft

Component Identification:

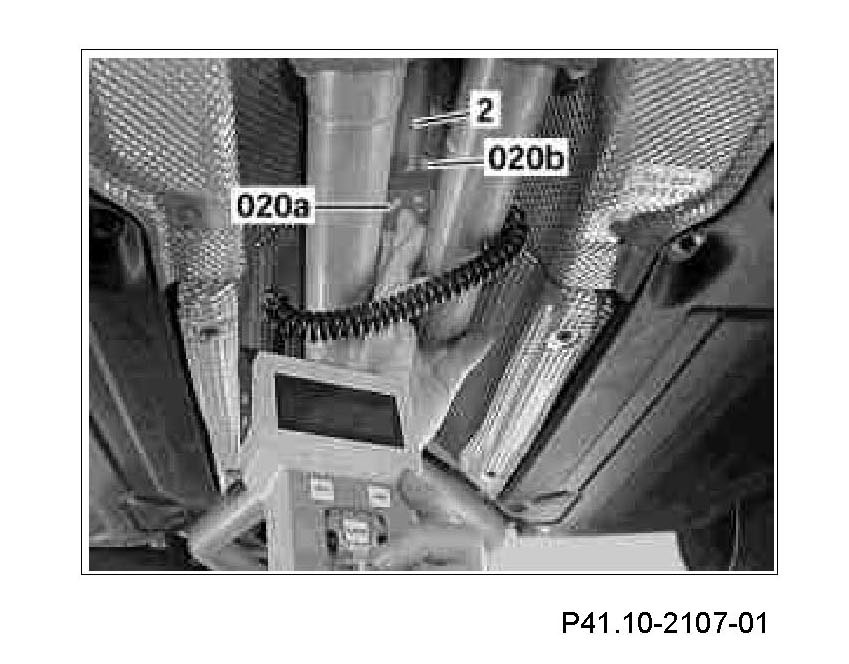

5 Clean contact surfaces for sensor (020a) on rear propeller shaft (2).
6 Position sensor (020a) horizontally on rear propeller shaft (2) and press on firmly.

The spiral cable (020b) of the sensor (020a) must point in the direction of travel for each measurement. Otherwise the measurement will be inaccurate. If the sensor (020a) is not positioned horizontally on the rear propeller shaft (2), the error message "Y-positional error - sensor ??" appears on the display. The measured angle cannot be saved.

Illustration shows model 211 with engine 112

Illustration shows model 211 with engine 647

Component Identification:

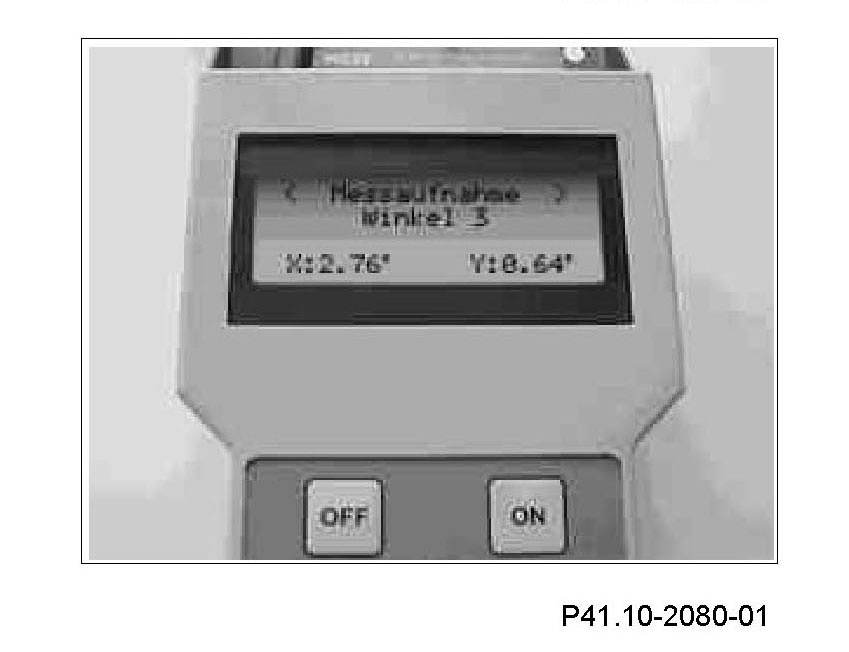

Measurement Values Screen For Angle 3: Display E.G. 2.76 Degrees:

The value measured is shown on the display.

7 Press SAVE button.

The values are saved.

Measurement values screen for angle 3: display e.g. 2.76 degrees

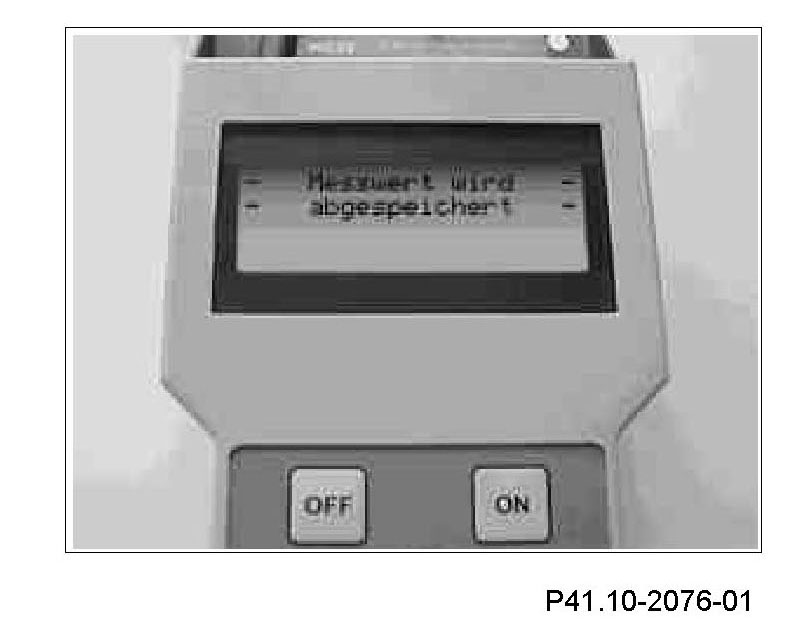

Confirmation Screen:

A confirmation message appears briefly.

Confirmation screen

Ready Screen For Angle 4:

The meter then indicates that it is ready to measure the next angle (angle 4).

8 Remove sensor (020a) from rear propeller shaft (2).

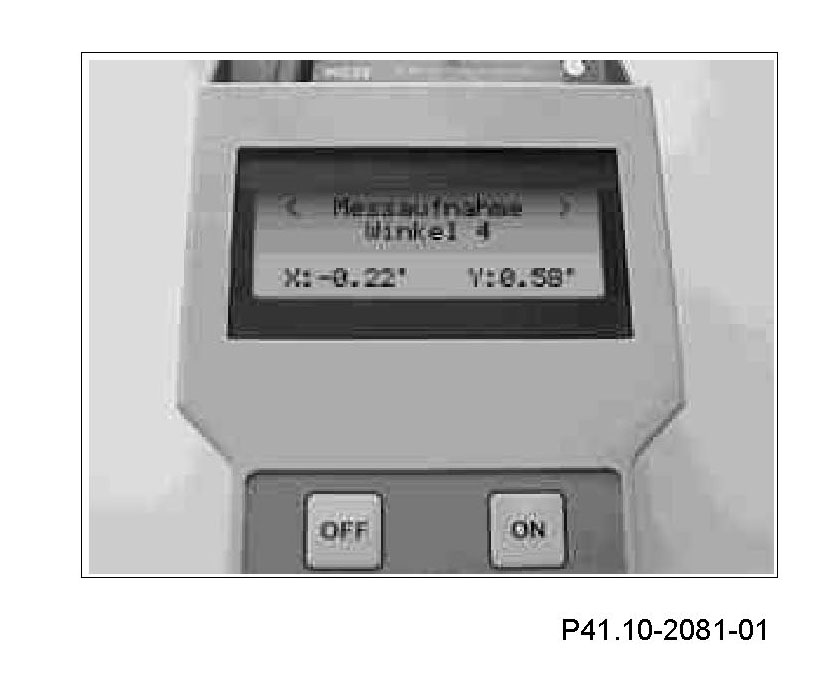

Ready screen for angle 4
