AR41.10-P-0050-07TI Connect Front Propeller Shaft to Transmission

AR41.10-P-0050-07TI Connect Front Propeller Shaft to Transmission
- TRANSMISSION 722.9









Replace self-locking nuts to prevent loosening and thus damage to the propeller shaft.

1 Fill cavities of centering sleeve with multipurpose grease.
2 Attach front propeller shaft to flexible coupling on transmission.

Note installation position.

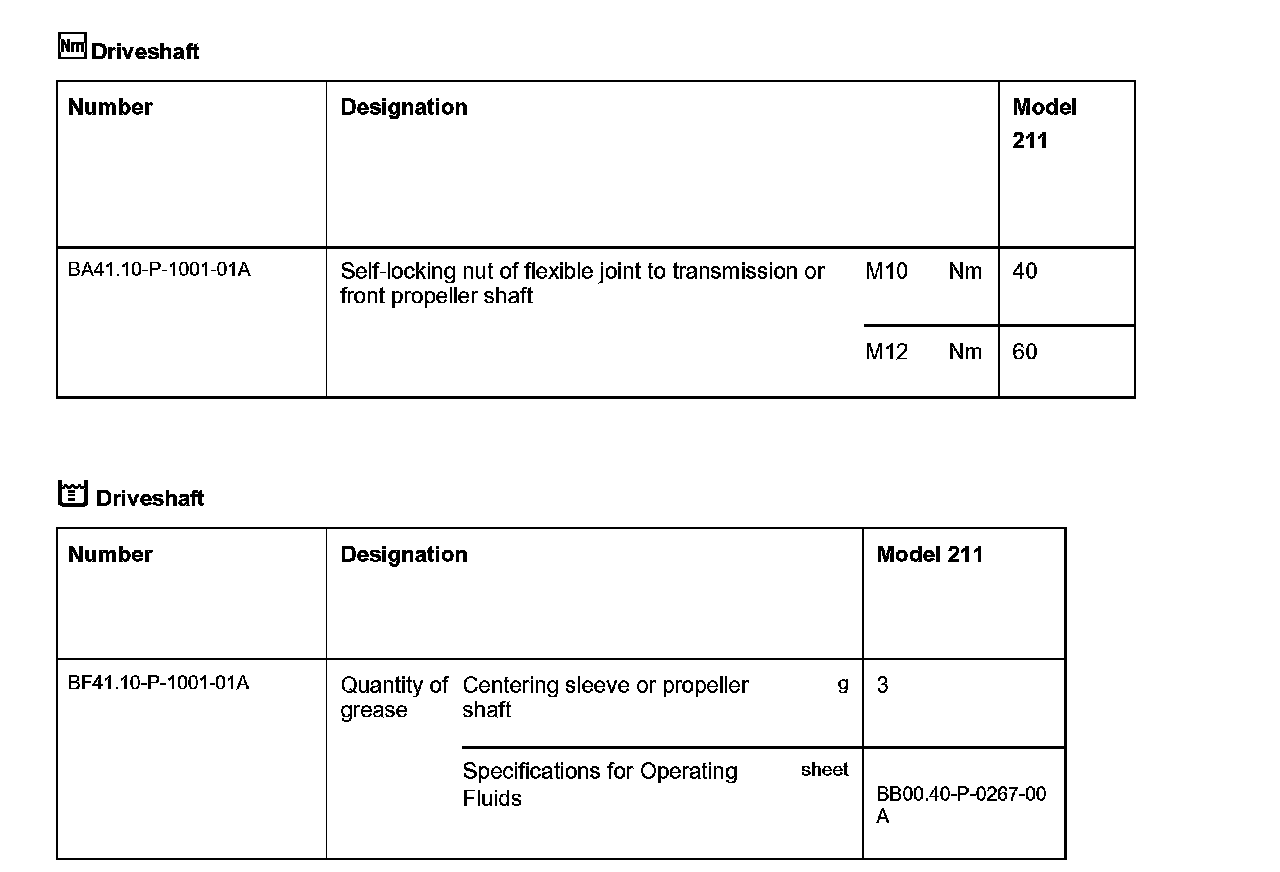

3 Tighten bolts on propeller shaft.

Use open end wrench to counterhold nuts.

Shown on model 211 with 722.9
