AR41.10-P-0050-04I Connecting Rear Propeller Shaft to Rear Axle Center Assembly

AR41.10-P-0050-04I Connecting rear propeller shaft to rear axle center assembly

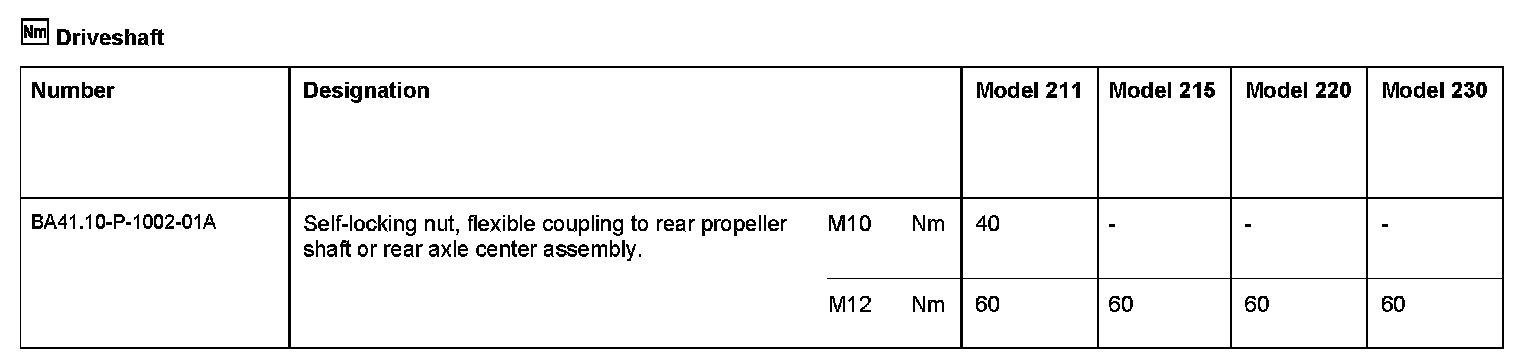

Driveshaft:

Component Identification:

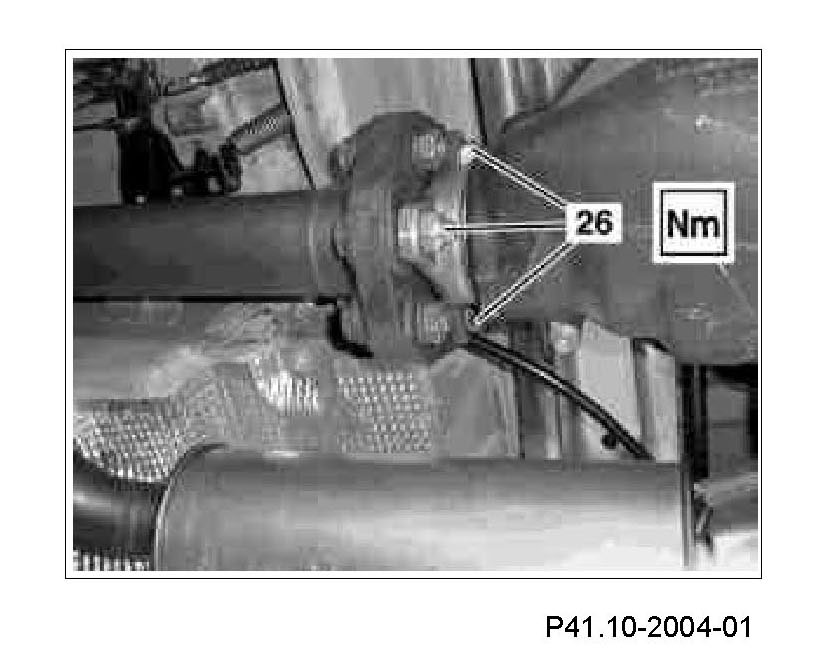

Replace self-locking nuts (26).

1 Mount rear propeller shaft on rear axle center assembly

Models 211, 220.028/128 with vibration damper

Component Identification:

Shown on model 220.028
