AR41.10-P-0200-03T Press In Guide Sleeve

AR41.10-P-0200-03T Press in guide sleeve

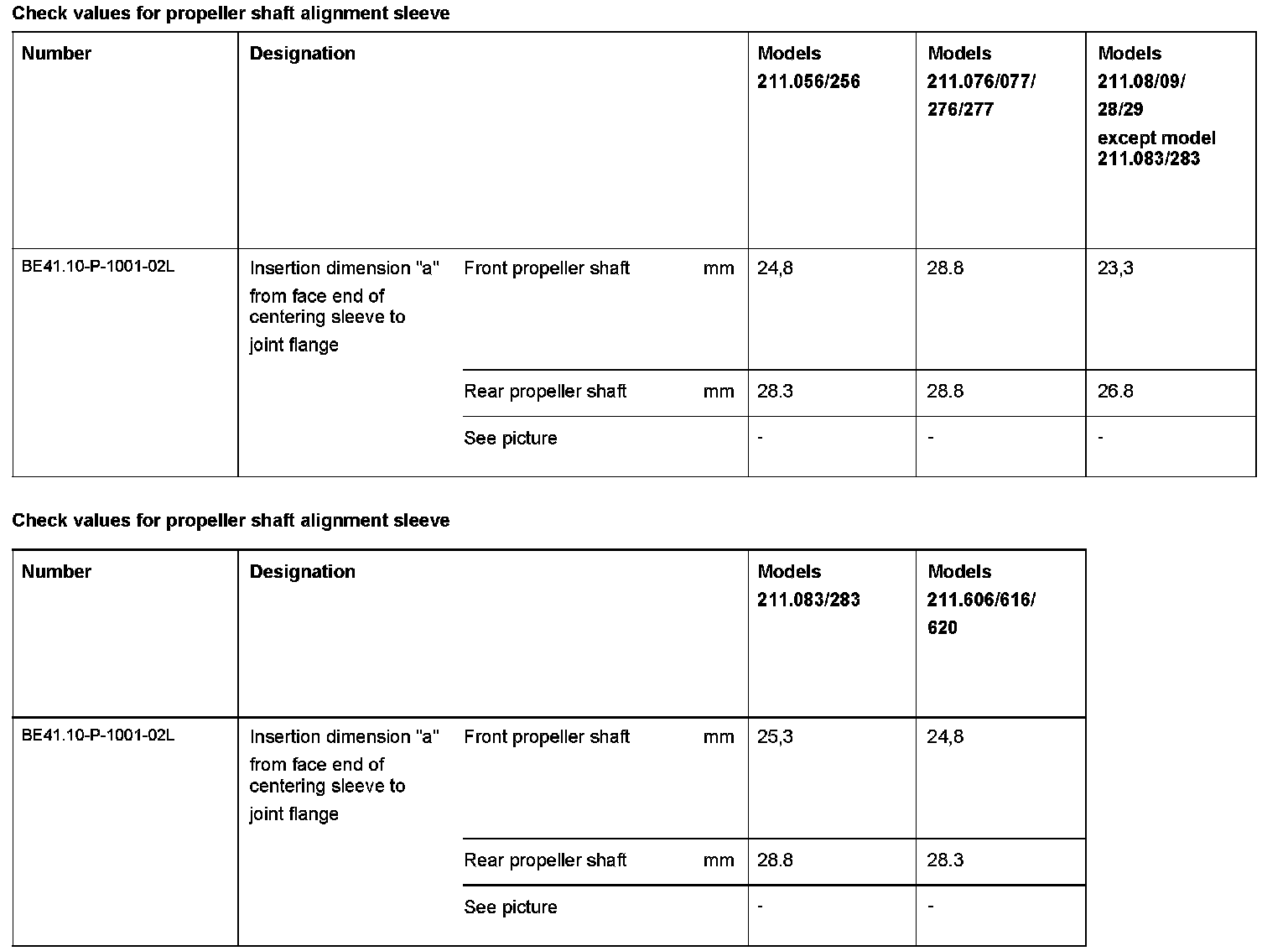

Check Values For Propeller Shaft Alignment Sleeve:

Component Identification:

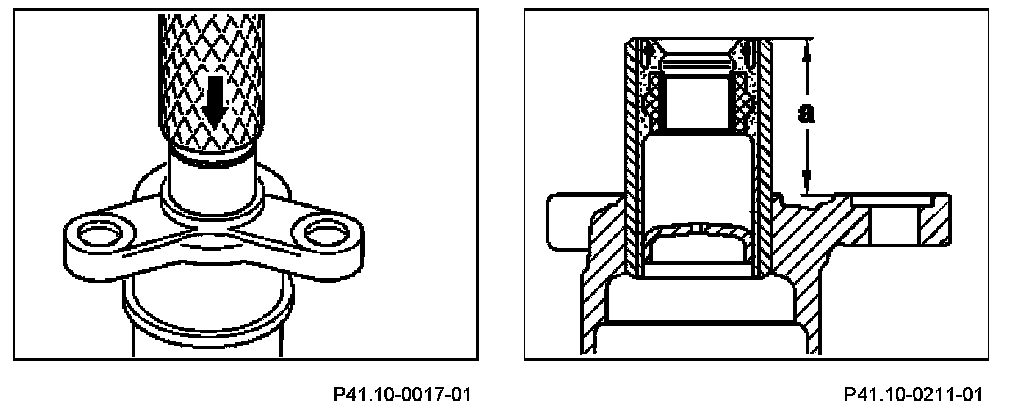

1 Use a suitable drift to drive in the new guide sleeve.

Observe press-in dimension (a) from the end face of the centering sleeve to the joint flange.

Depending on the version of flexible disk (for example, on vehicles with vibration damper) it may lead to a deviation between the measured and the specified press-in dimension "a". In this case the measured press-in dimension (a) is to be taken into account before removal.
