AR41.10-P-0085-01T Measure Absolute Angle at Transmission

AR41.10-P-0085-01T Measure absolute angle at transmission
- 204 with TRANSMISSION 711.6
- 211 with TRANSMISSION 716

Selection menu screen:

Electronic driveline inclinometer

1 Press the STEP button.
"Articulation angle" "Measurement' is selected.

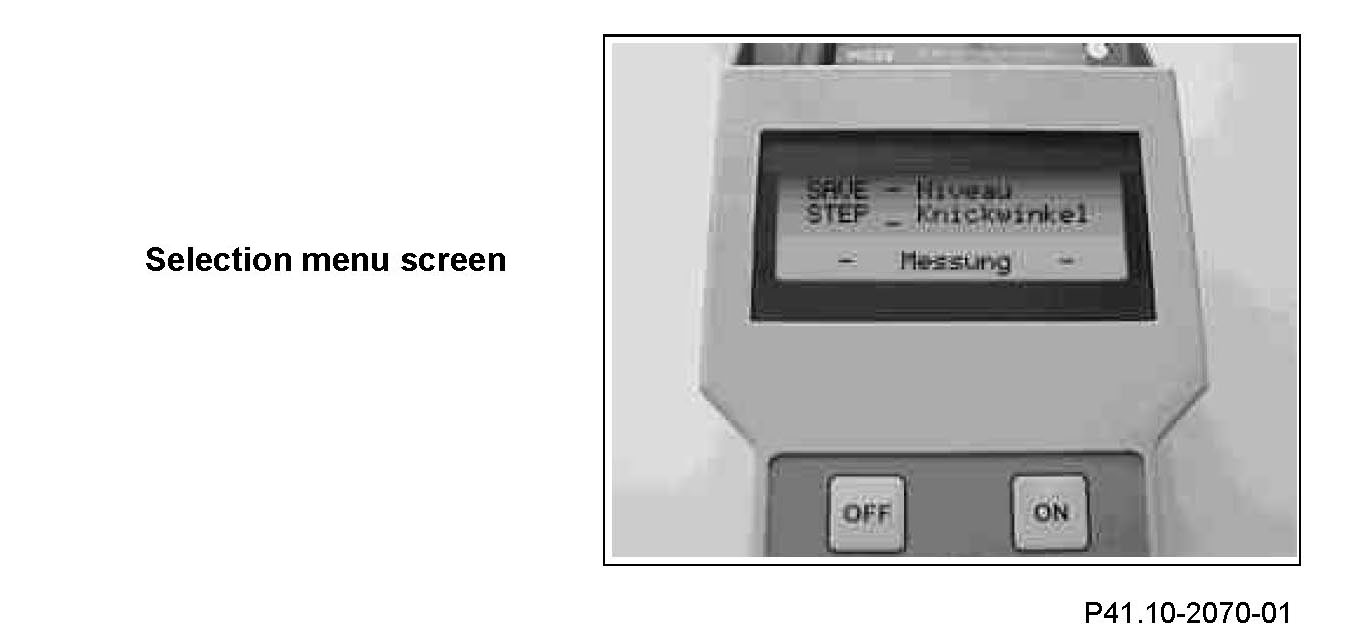

Selection menu screen

Main menu screen:

Measurement - Angle 1
2 Press STEP button while main menu is displayed.
"Measurement" is selected.

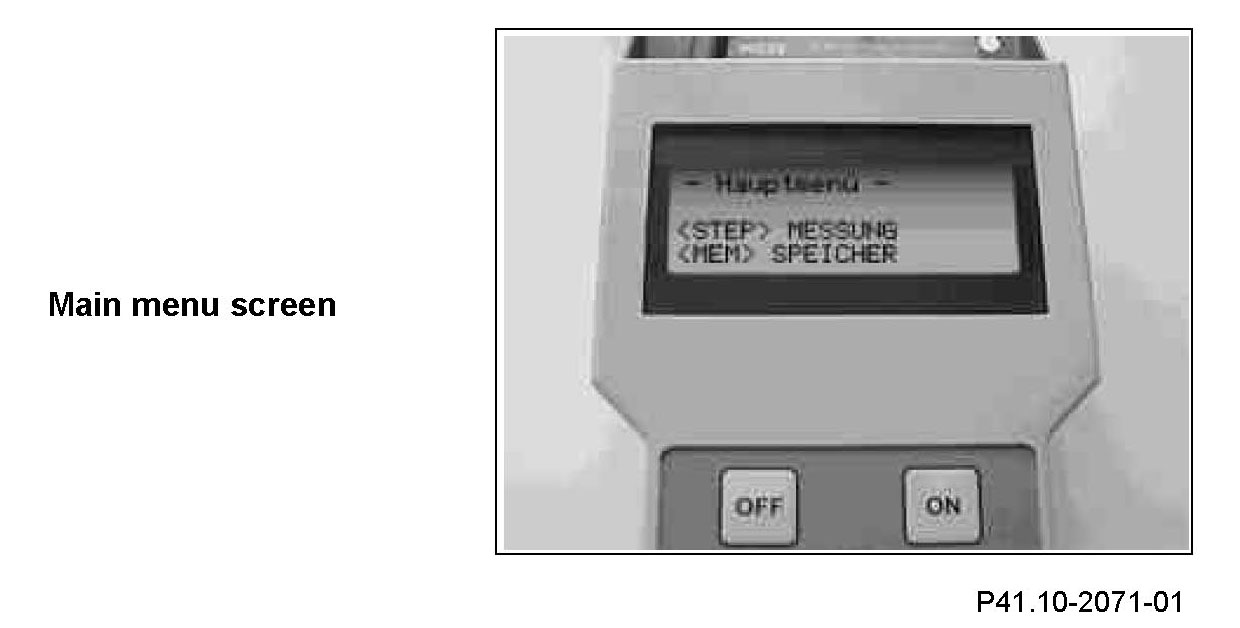

Main menu screen

Component Identification:

The vehicle must be on its wheels for the measurement.

Start measurement of inclination angle at transmission end.

All four angles should be measured in succession without interruption.

An angle that has already been measured can be measured a second time if required. To do this, with the Measurement menu displayed, press the STEP button repeatedly until the display indicates Ready to measure the relevant angle.
3 Clean contact surfaces for sensor (arrows) on transmission.
4 Position sensor (020a) centrally on the three contact surfaces on the transmission (arrows) and press on firmly.
The spiral cable (020b) of the sensor (020a) must point in the direction of travel for each measurement. Otherwise the measurement will be inaccurate.

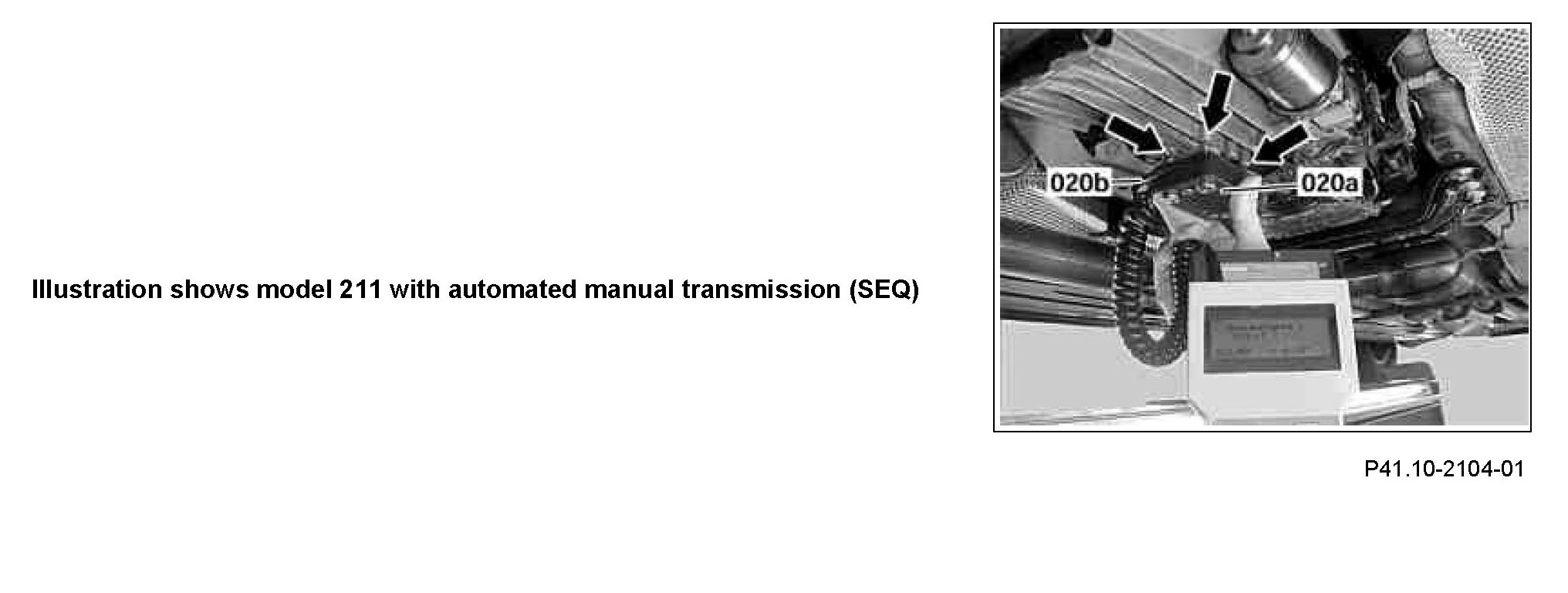

Illustration shows model 211 with automated manual transmission (SEQ)

Measured values screen for angle 1:

The meter is ready to take a measurement. The value measured is shown on the display.
5 Press SAVE button.
The values are saved.

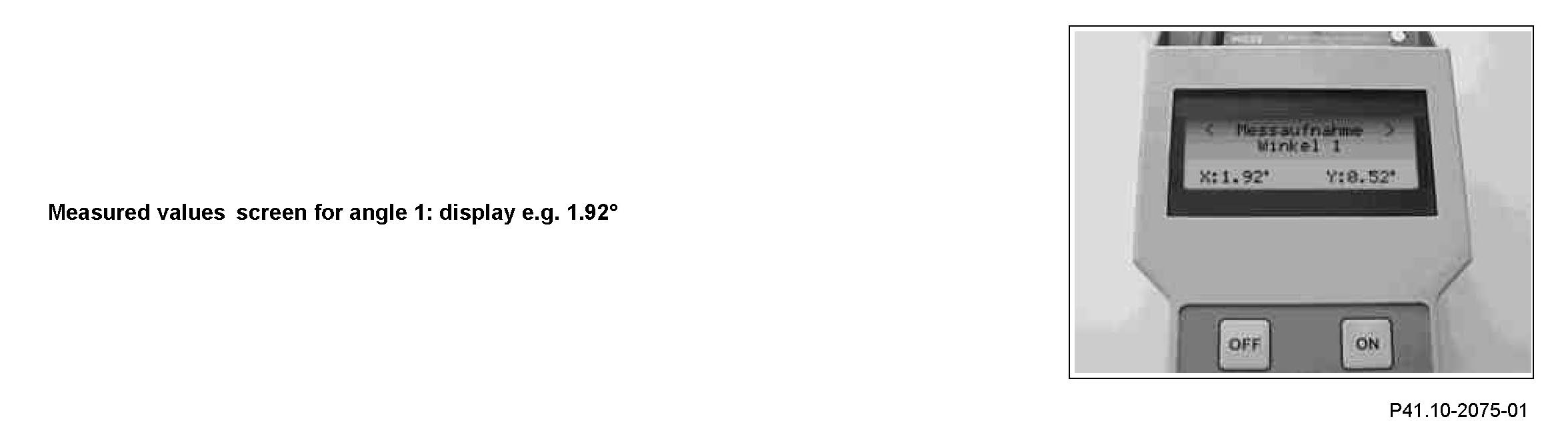

Measured values screen for angle 1: display e.g. 1.92 degrees

Confirmation screen:

A confirmation message appears briefly.

Confirmation screen

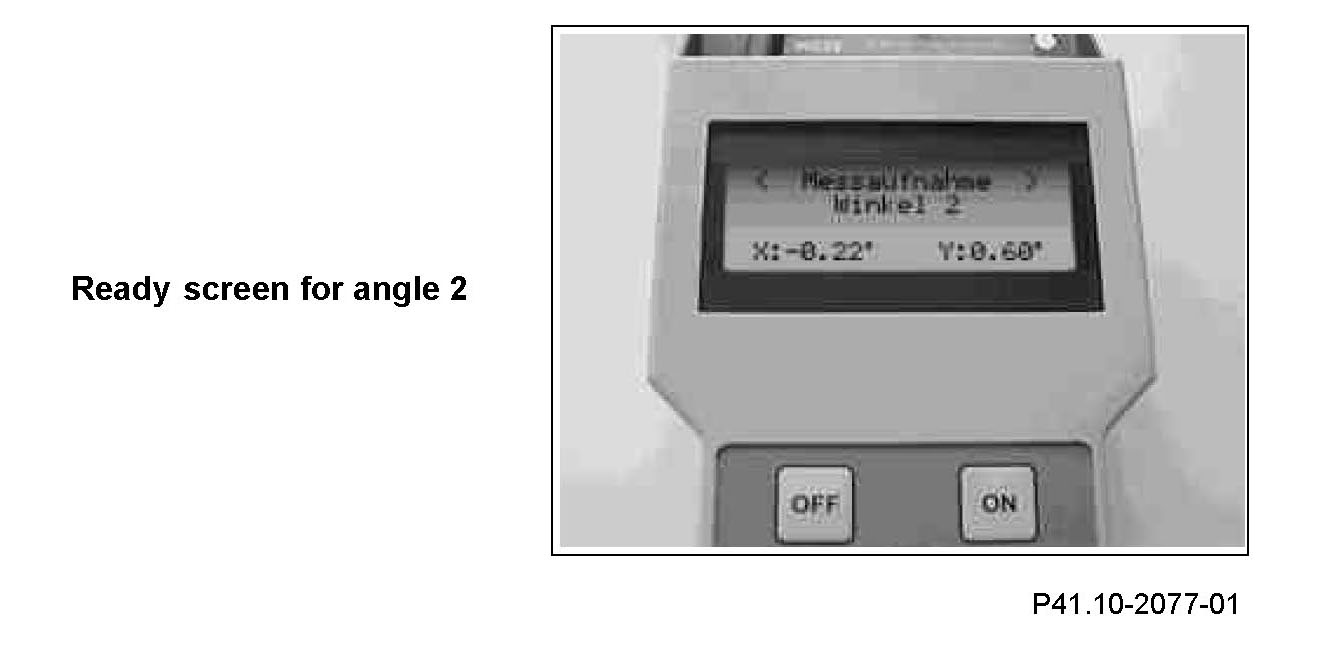

Ready screen for angle 2:

The display then indicates Ready for next measurement for angle 2.
6 Remove sensor (020a) from transmission.

Ready screen for angle 2
