AR41.10-P-0050-05DA Connect Sections of Propeller Shaft Long-Life Grease (NLGI Grade 2)

AR41.10-P-0050-05DA Connect sections of propeller shaft Long-life grease (NLGI grade 2)





1 Coat the splined profile with Molykote(R) grease before assembly.
2 Reconnect front and rear sections of propeller shaft. The humps on the front propeller shaft must be between the two humps on the linkage arm (arrows).

Ensure correct seat of rubber sleeve at large diameter.

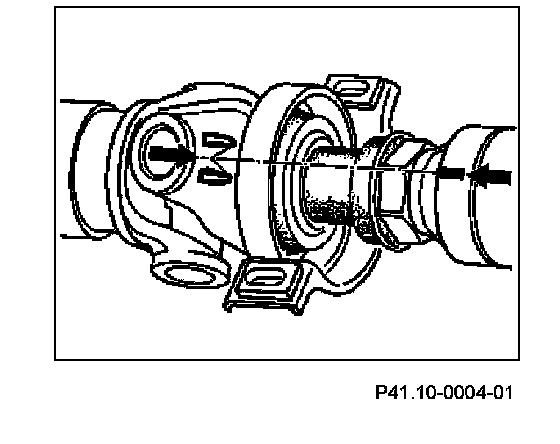

Position of propeller shaft without clamp connection

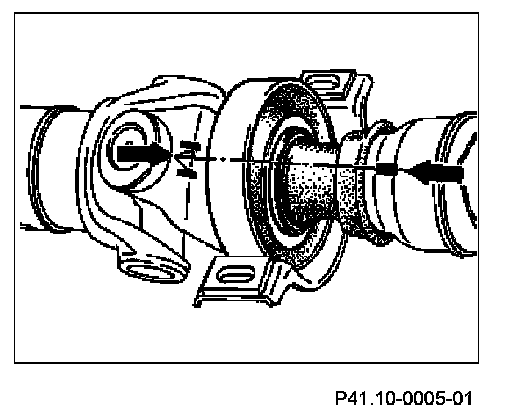

Position of propeller shaft with clamp connection
