AR41.10-P-0100-02DA Pressing grooved ball bearing out and in at rubber mount of propeller shaft

AR41.10-P-0100-02DA Pressing grooved ball bearing out and in at rubber mount of propeller shaft

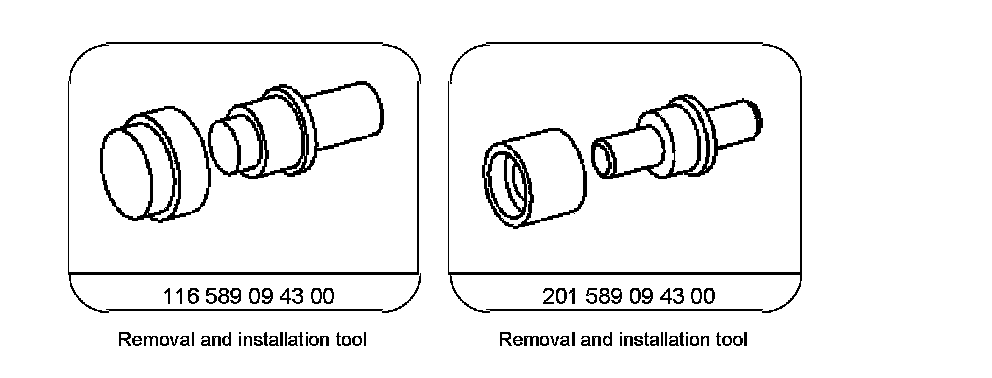

Special Tools:

Component Identification:

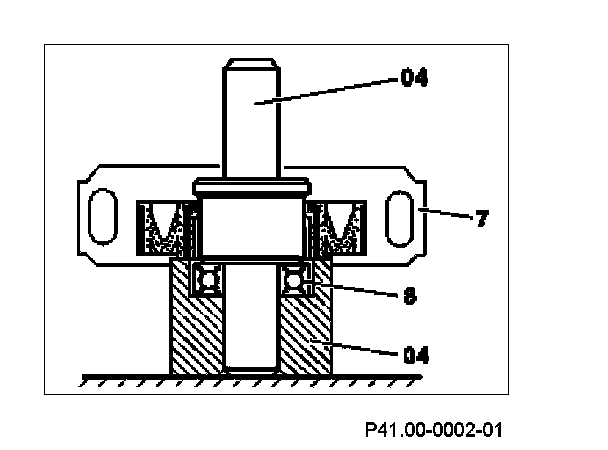

Press out grooved ball bearing
1 Using the press out/in (tool 04), pry the grooved ball bearing (8) out of the rubber mount (7).

116 589 09 43 00 use with grooved ball bearing inside dia. of 30 mm.
201 589 09 43 00 use with grooved ball bearing inside dia. of 25 mm.

Component Identification:

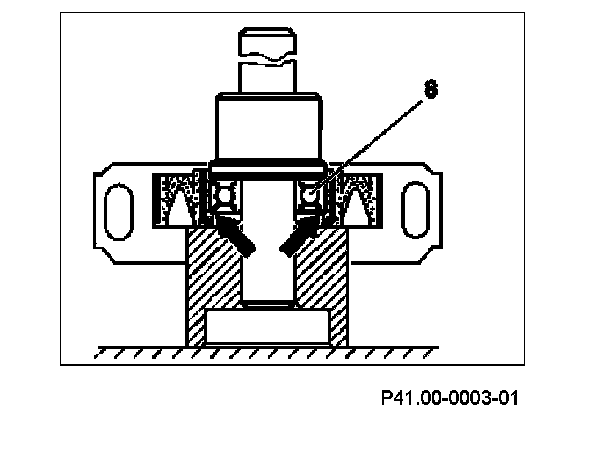

Press in grooved ball bearing
2 Press grooved ball bearing (8) into the rubberized bearing seat up to the contact surface (arrows) using removal tool and press-in tool (04).

Ensure that the grooved ball bearing (8) is properly seated.
