AR41.10-P-0100T Remove/Install Propeller Shaft Intermediate Bearing and Replace Grooved Ball Bearing



AR41.10-P-0100T Remove/install propeller shaft intermediate bearing and replace grooved ball bearing

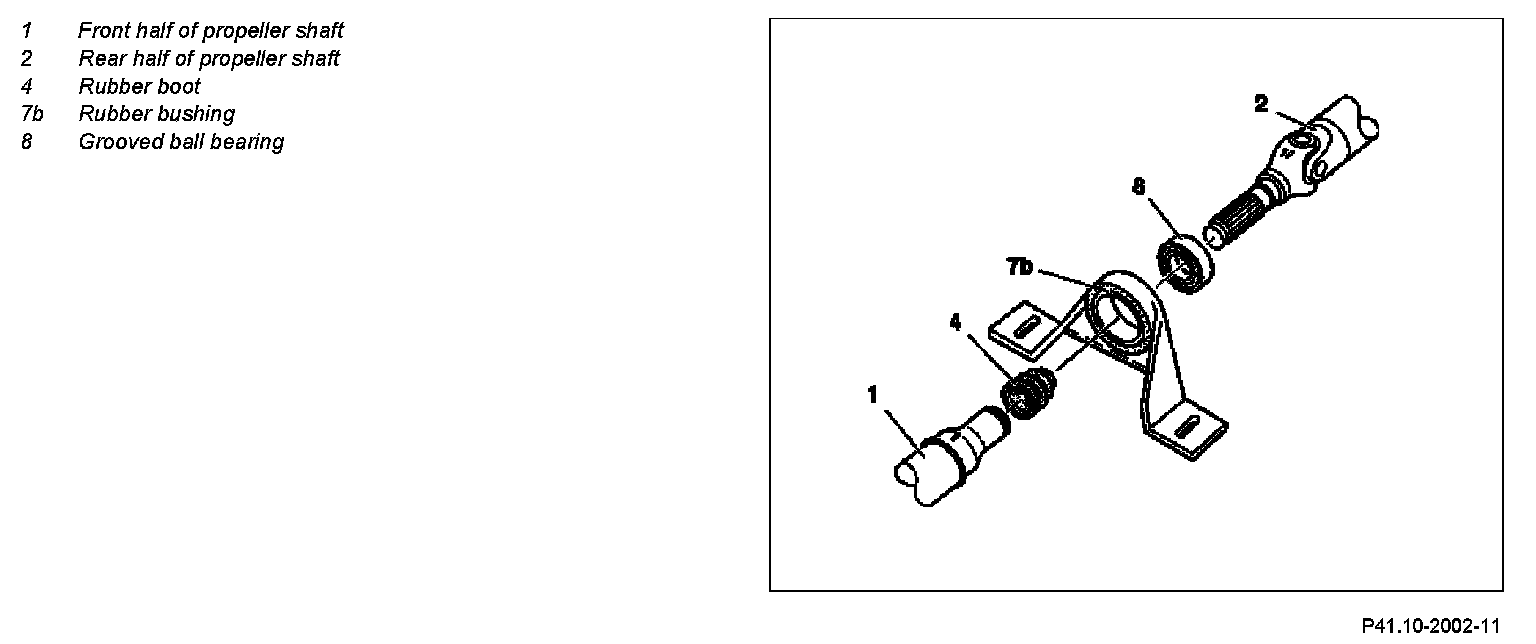

Component Identification:

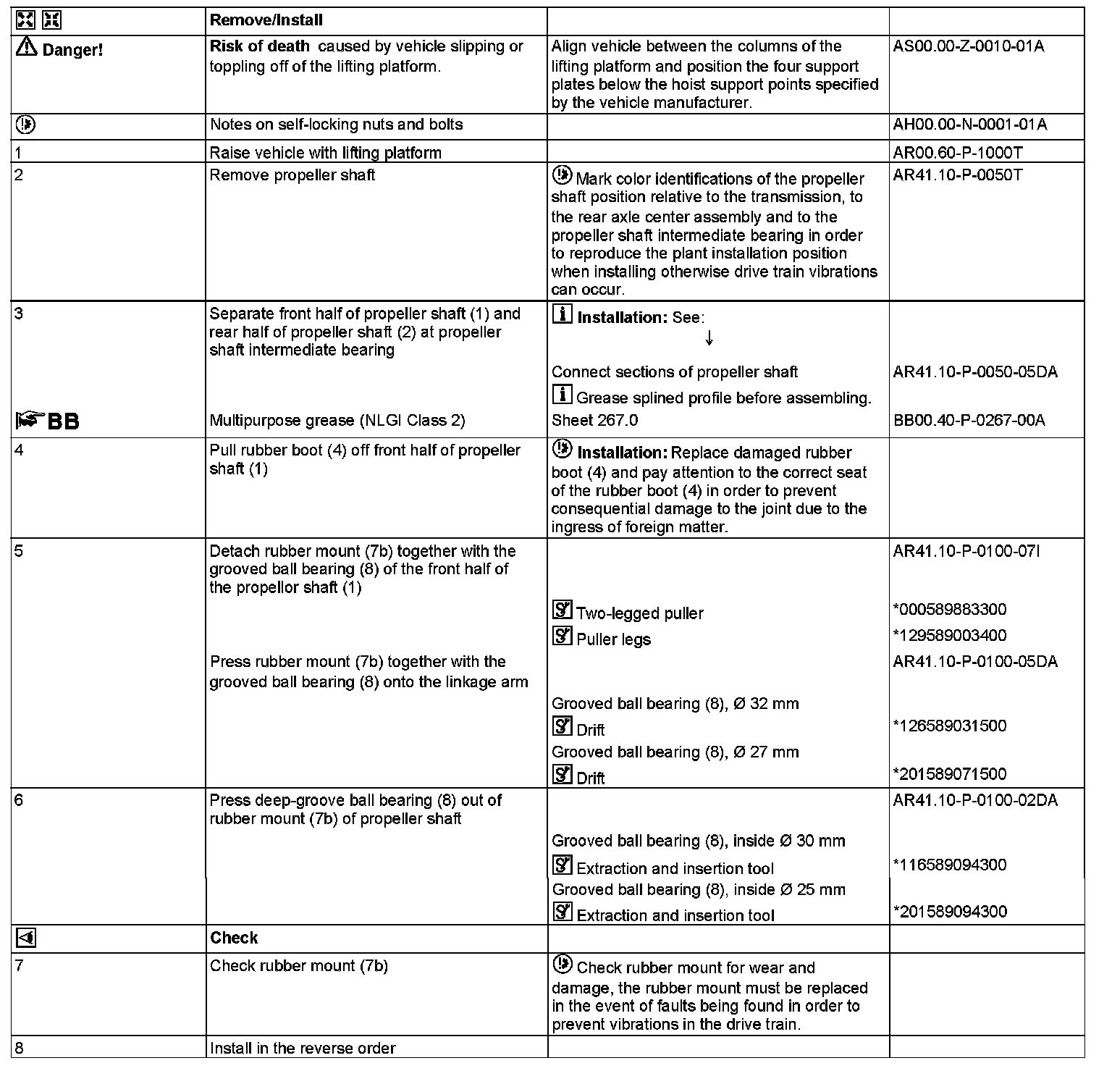

Steps 1-8:

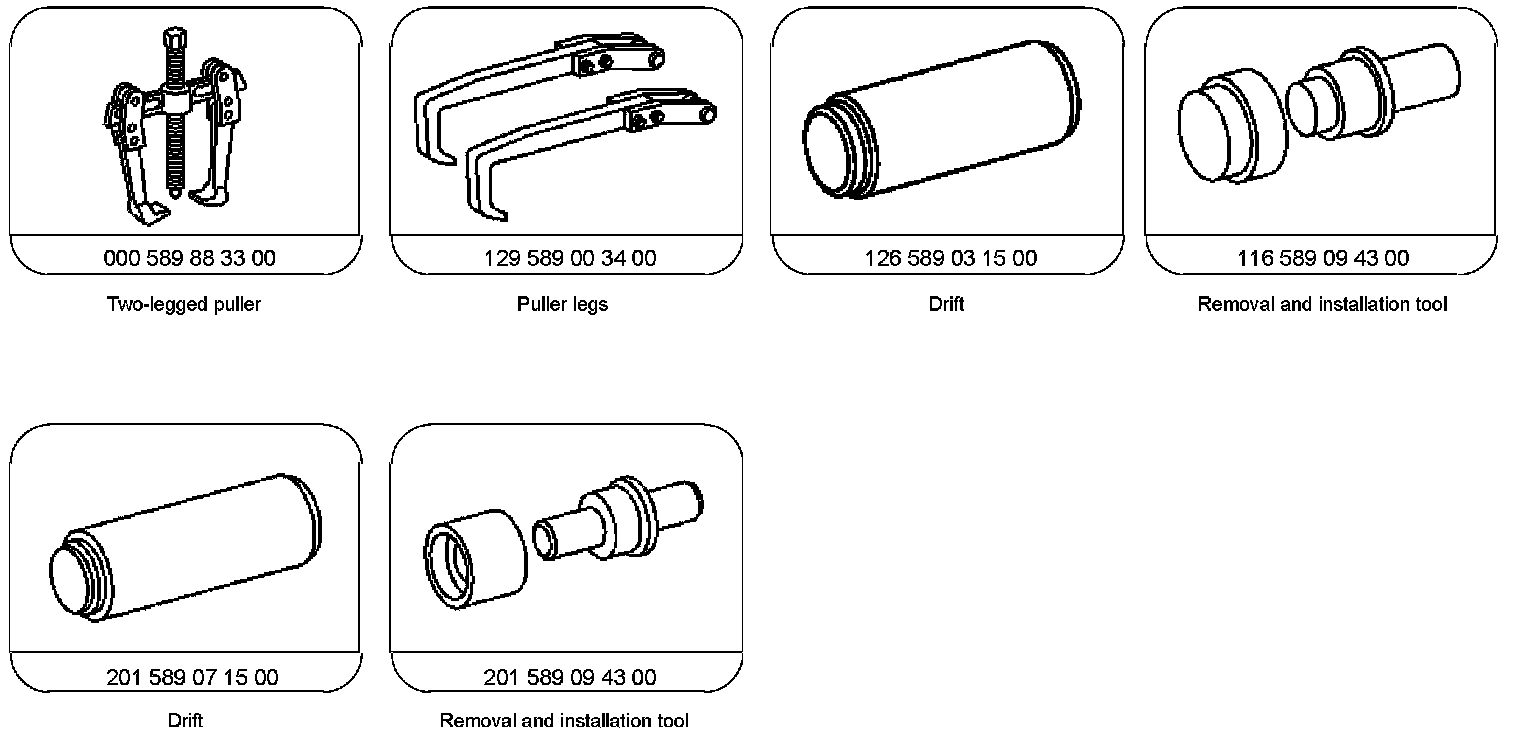

Special Tools:
