AR41.10-P-0100-7I Pulling Off Rubber Mount With Grooved Ball Bearing

AR41.10-P-0100-7I Pulling off rubber mount with grooved ball bearing

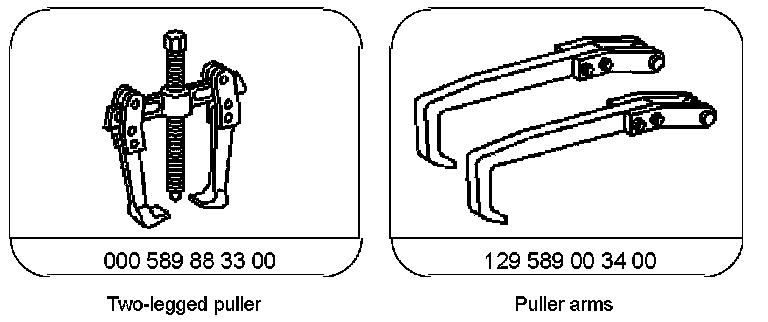

Special Tools:

Component Identification:

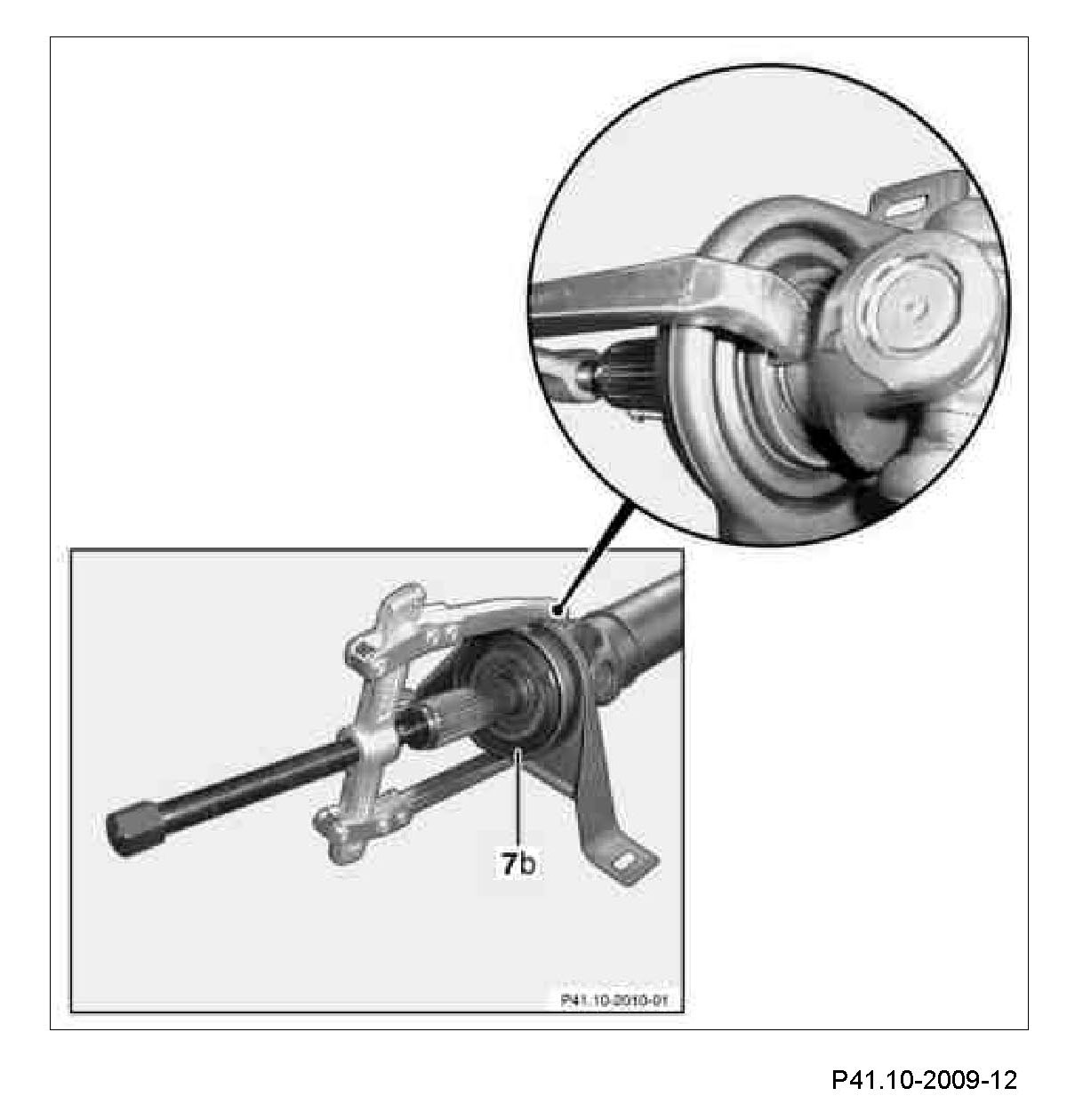

1 Position puller with pulling arms (see magnified section).
2 Pull rubber mount (7b) together with grooved ball bearing off the joint fork.

Shown on linkage arm in model 220
