AR41.10-P-0100-05DA Pressing Rubber Mount With Grooved Ball Bearing Onto Joint Fork

AR41.10-P-0100-05DA Pressing rubber mount with grooved ball bearing onto joint fork

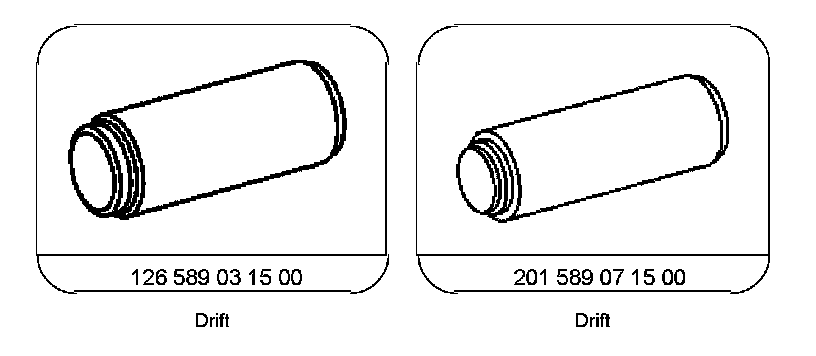

Special Tools:

Component Identification:

The open side of the grooved ball bearing must point backwards.

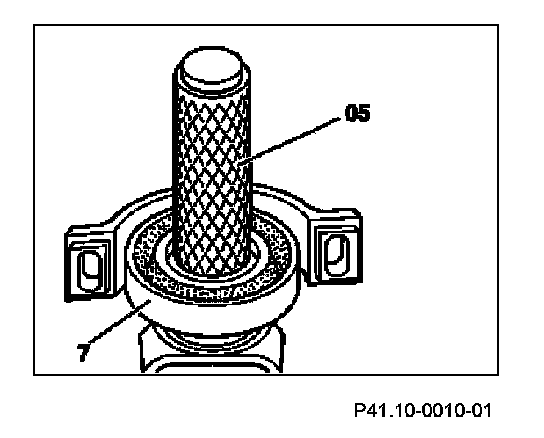

1 Press rubber mount (7) with grooved ball bearing onto linkage arm using drift (05). 126 589 03 15 00 use with grooved ball bearing dia. of 32 mm. 201 589 07 15 00 use with grooved ball bearing dia. of 27 mm.
