GF26.60-P-4000-03P Sequential Floor Shift, Function

GF26.60-P-4000-03P Sequential floor shift, function
- TRANSMISSION 716.6
- with CODE (424) Sequentronic automated manual transmission (SEQ)

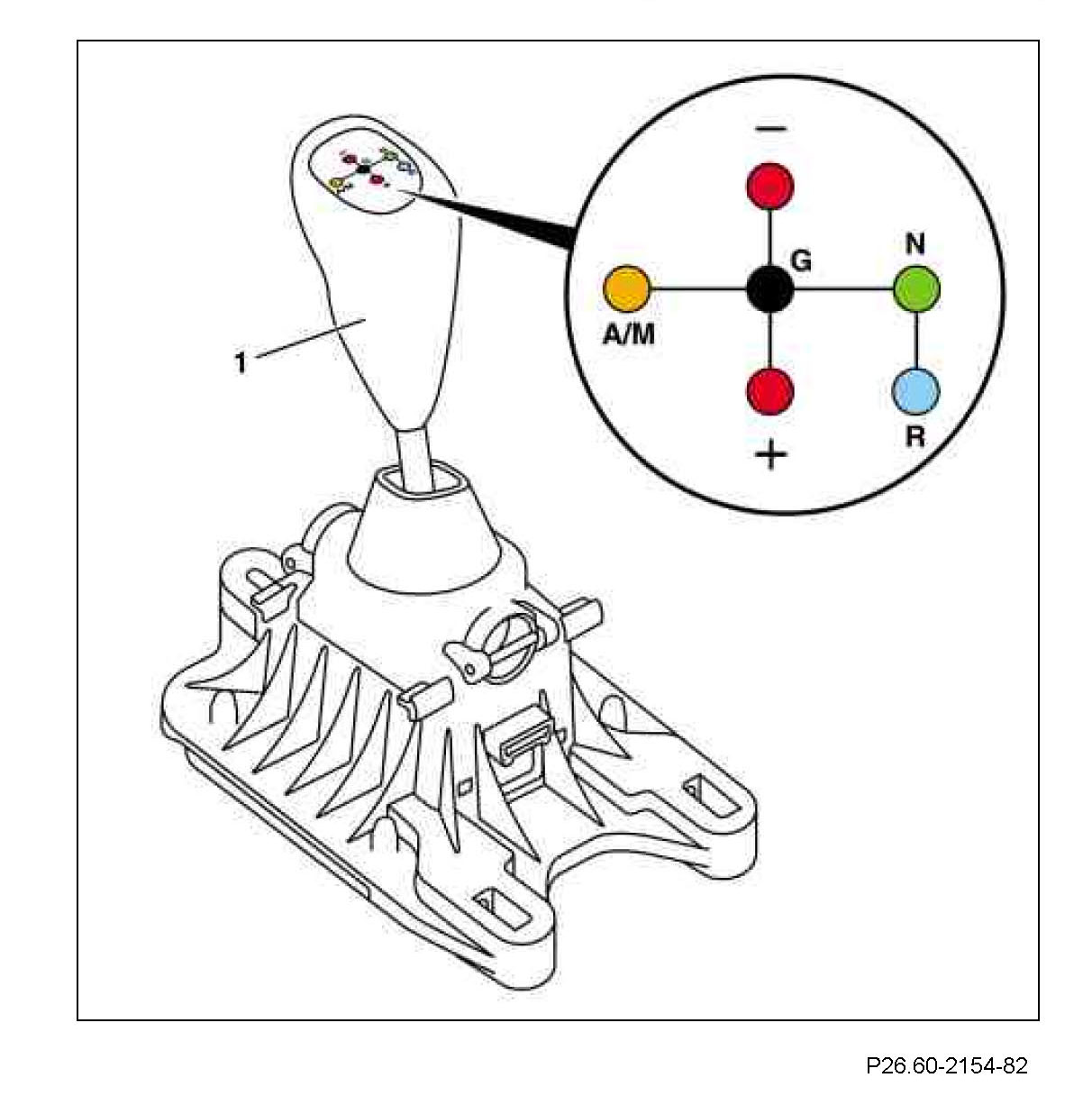

Component Identification:

Function
The shift lever has "stable" and "unstable" positions.

Stable positions:
^ G (basic position)
^ N (neutral position)
^ R (reverse gear)

Unstable positions
^ + (upshift button)
^ - (downshift button)
^ A/M (autoshift/manual mode button)

The driver selects the next gear up by tapping the shift lever in the direction indicated by the "+" symbol. A downshift by one gear is initiated by tapping the shift lever (1) in the direction indicated by the "-" symbol.

The plausibility of the driver's shift request is tested by the automated manual transmission control module (N15/6). When the gearshift has been executed, the gear currently engaged in the transmission is shown in the display in the instrument cluster (A1).

Note
There is no specific park position as there is in an automatic transmission. Either 1st or reverse is engaged when the vehicle is parked.
