Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatically Shifted Manual Transmission/Transaxle >> Shift Actuator >> Hydraulic Accumulator >> Service and Repair >> AR26.60-P-0015T Remove/Install Pressure Reservoir

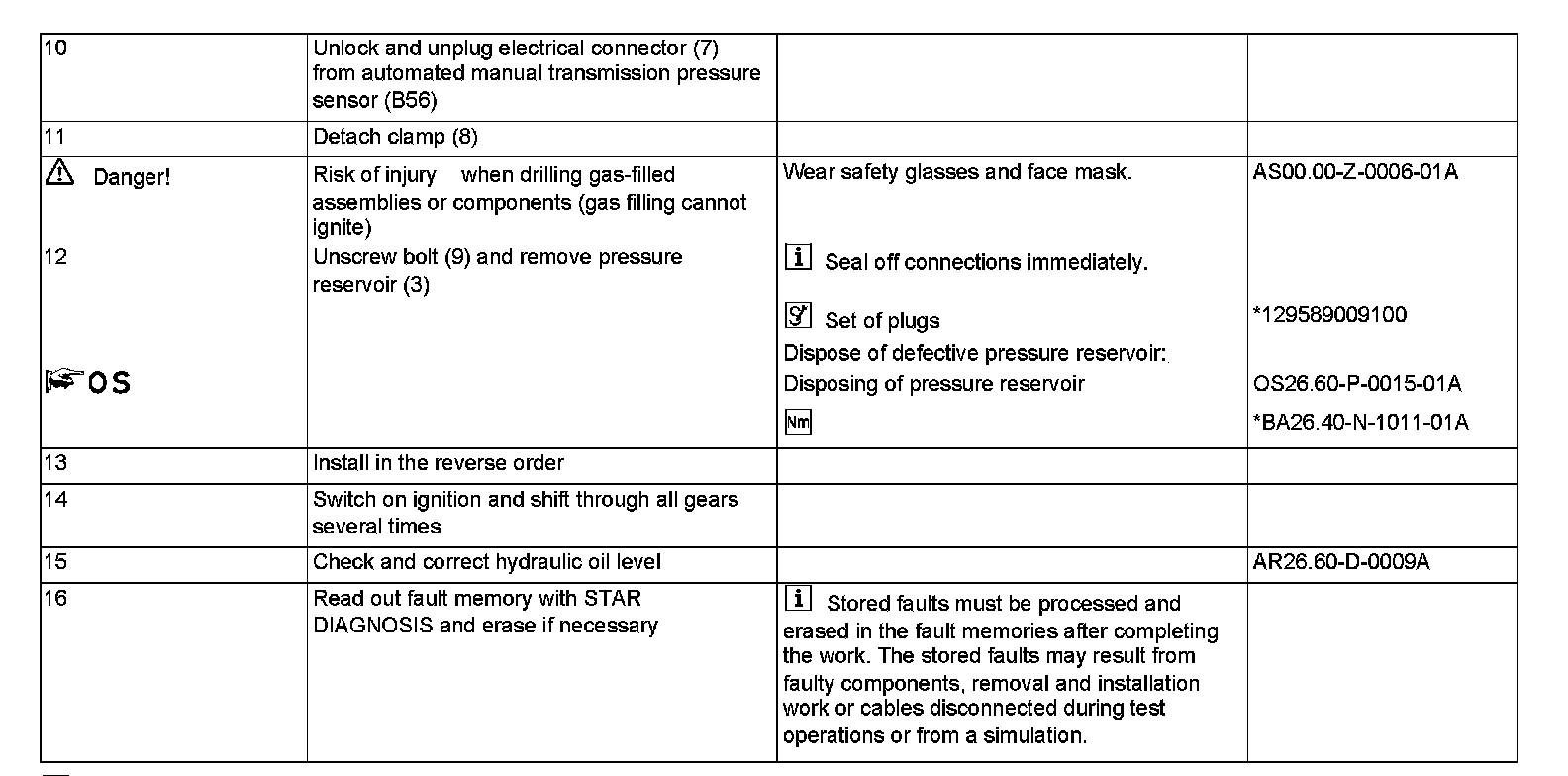

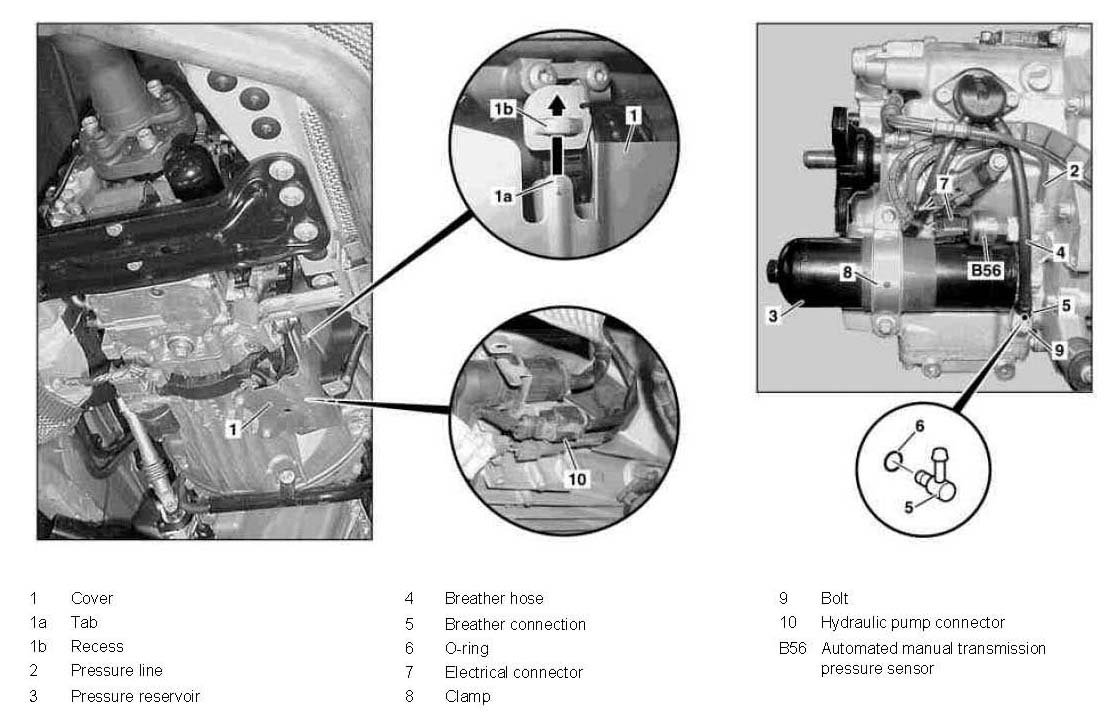

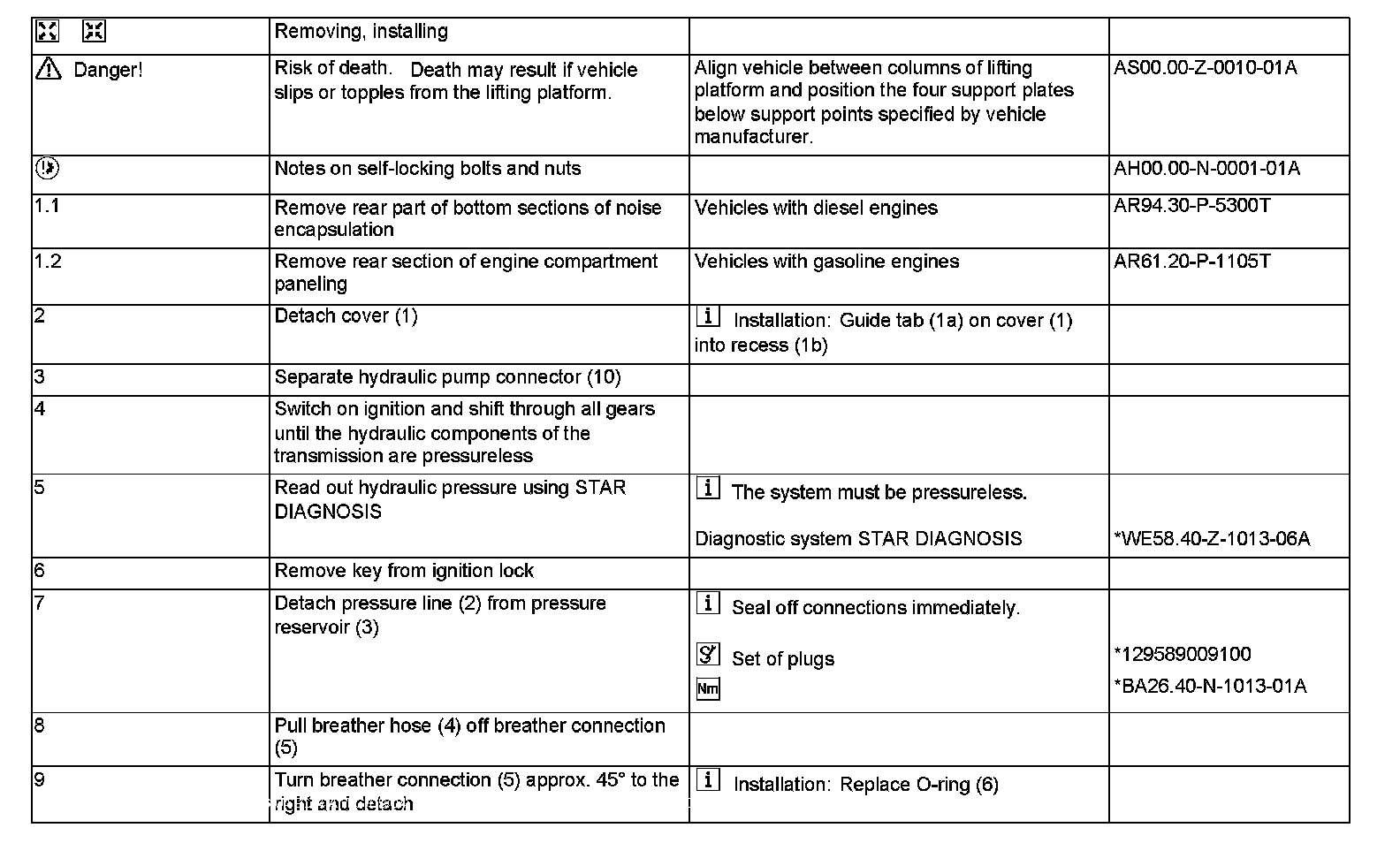

AR26.60-P-0015T Remove/Install Pressure Reservoir




AR26.60-P-0015T Remove/Install Pressure Reservoir
- with CODE (424) Sequentronic (SEQ) manual transmission
