GF26.60-P-4003-02A Hydraulic Pressure Reservoir, Design



GF26.60-P-4003-02A Hydraulic pressure reservoir, design
- TRANSMISSION 716.6
- with CODE (424) Sequentronic automated manual transmission (SEQ)


Component Identification:





Structure

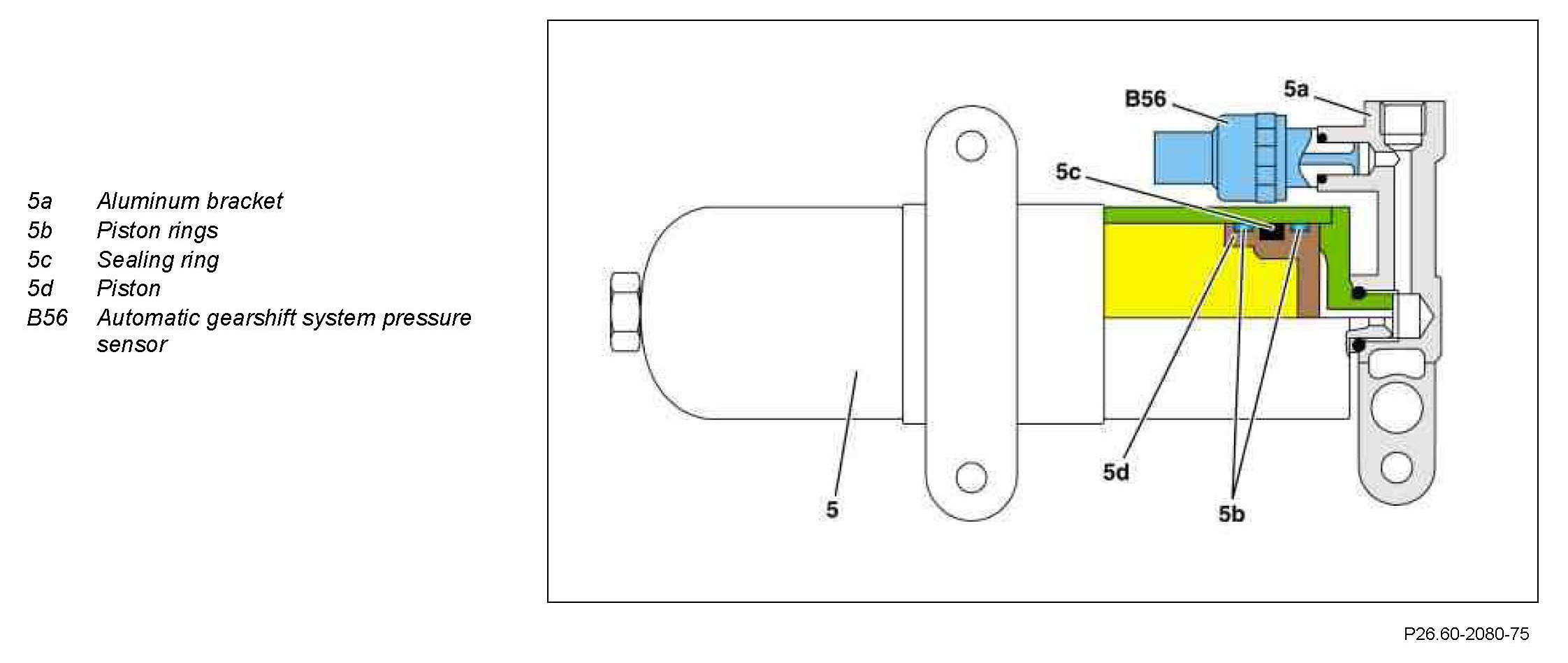

The piston accumulator unit in the hydraulic pressure reservoir (5) consists of the following components:
