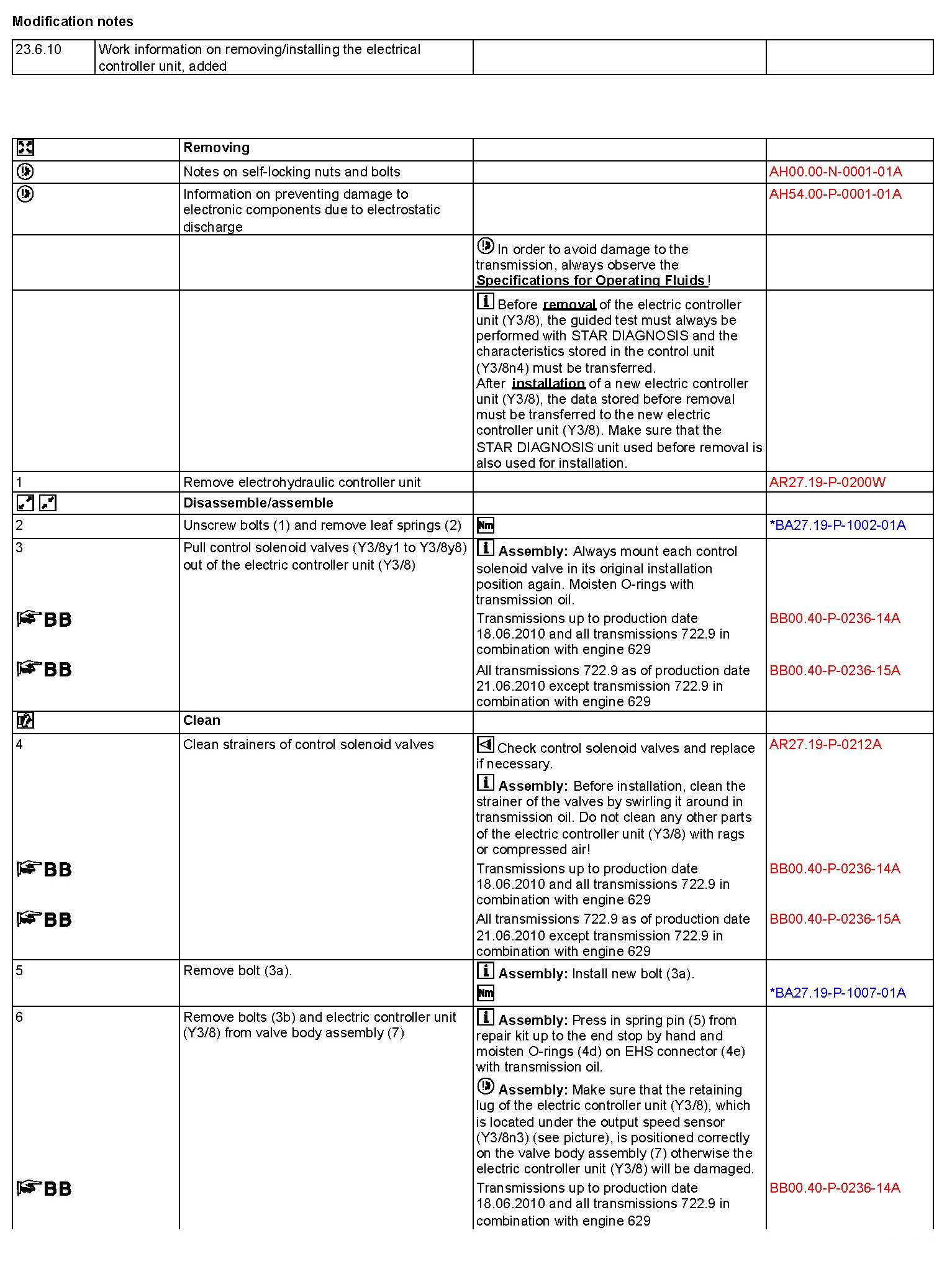

AR27.19-P-0220B Disassemble/Assemble Electrohydraulic Controller Unit

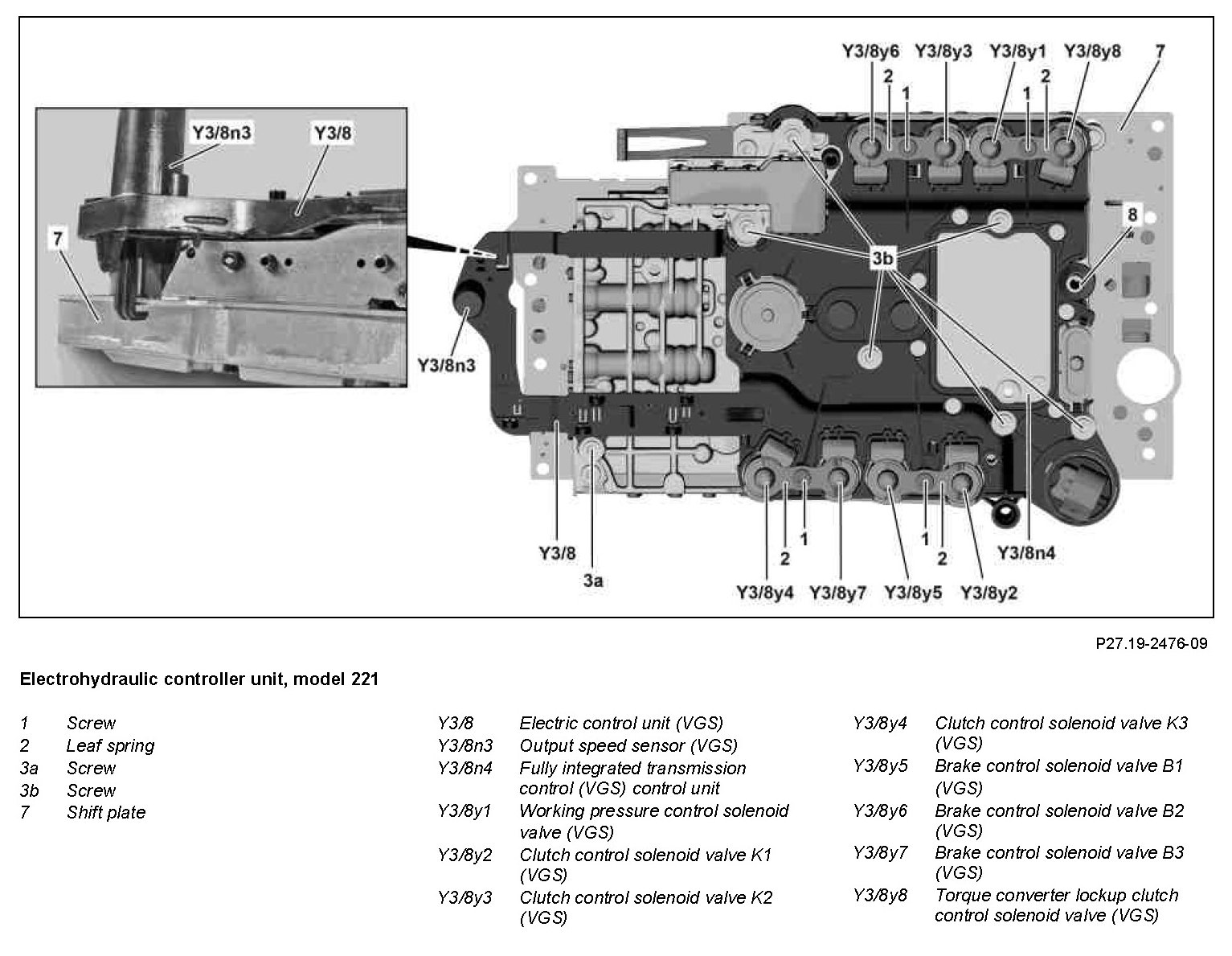

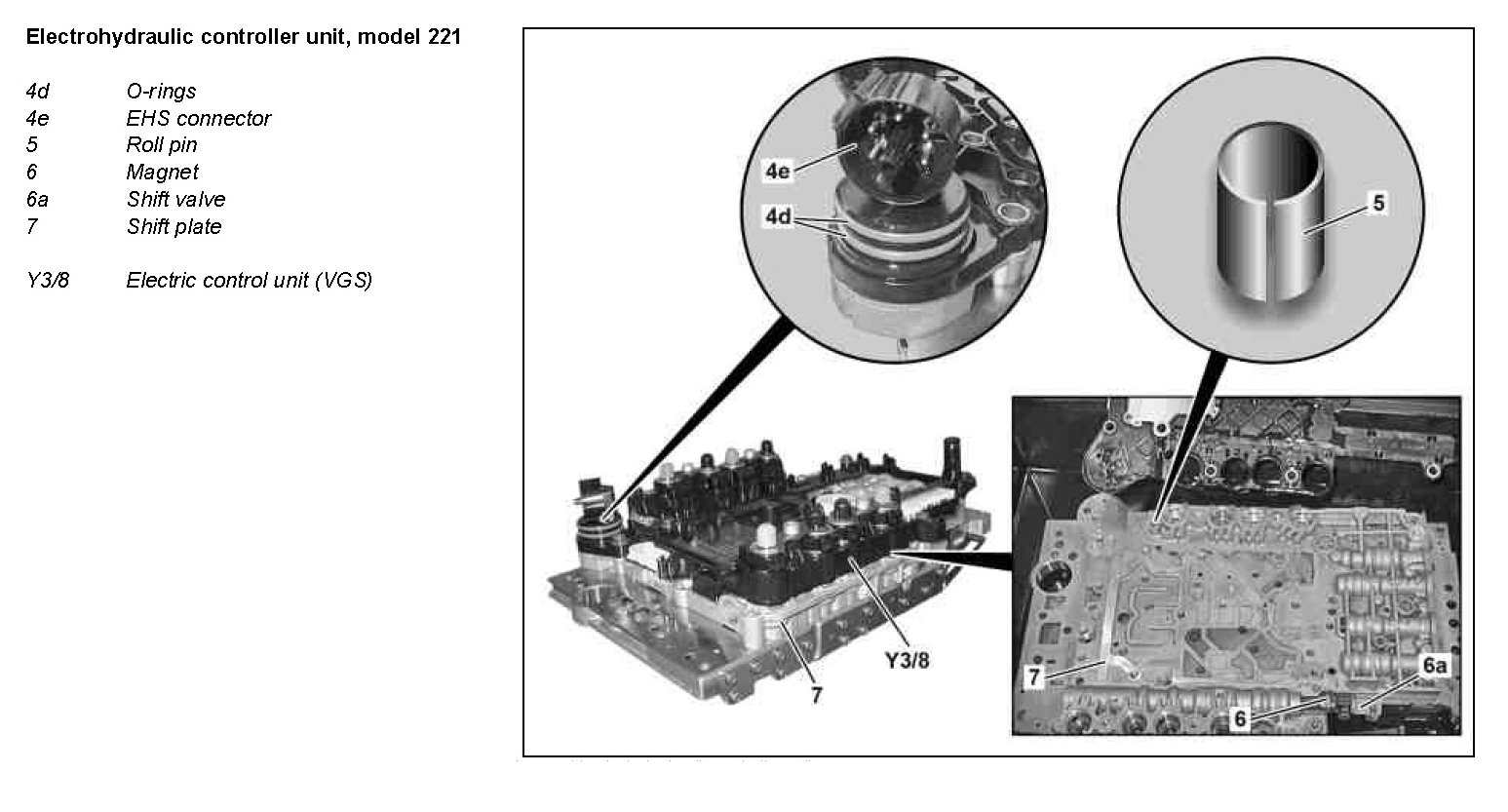

AR27.19-P-0220B Disassemble and assemble electrohydraulic controller unit
Transmission 722.9
