AR27.19-P-0212A Remove/Install Control Solenoid Valves of Electronic Controller Unit



AR27.19-P-0212A Remove/Install Control Solenoid Valves of Electronic Controller Unit
Transmission 722.9

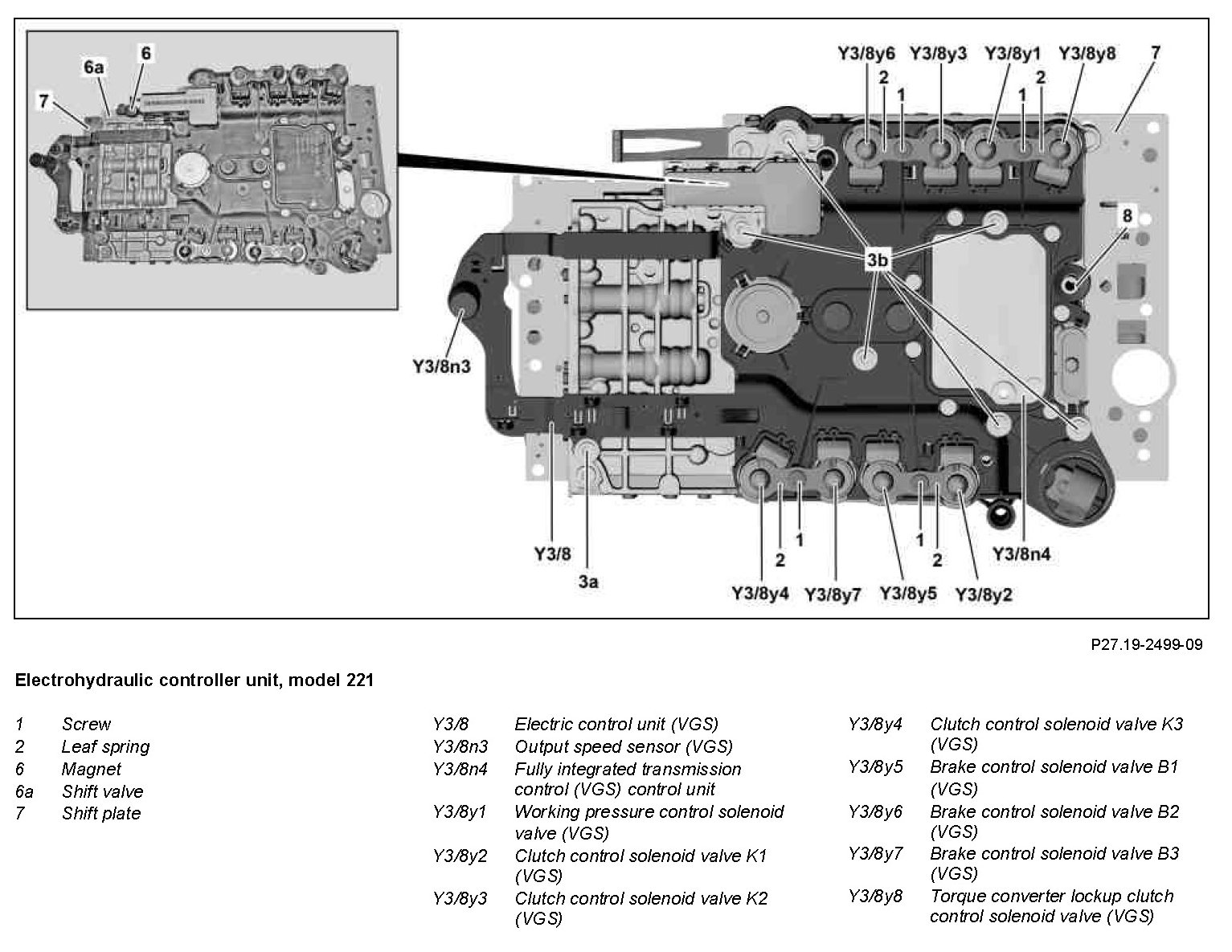

Component View:

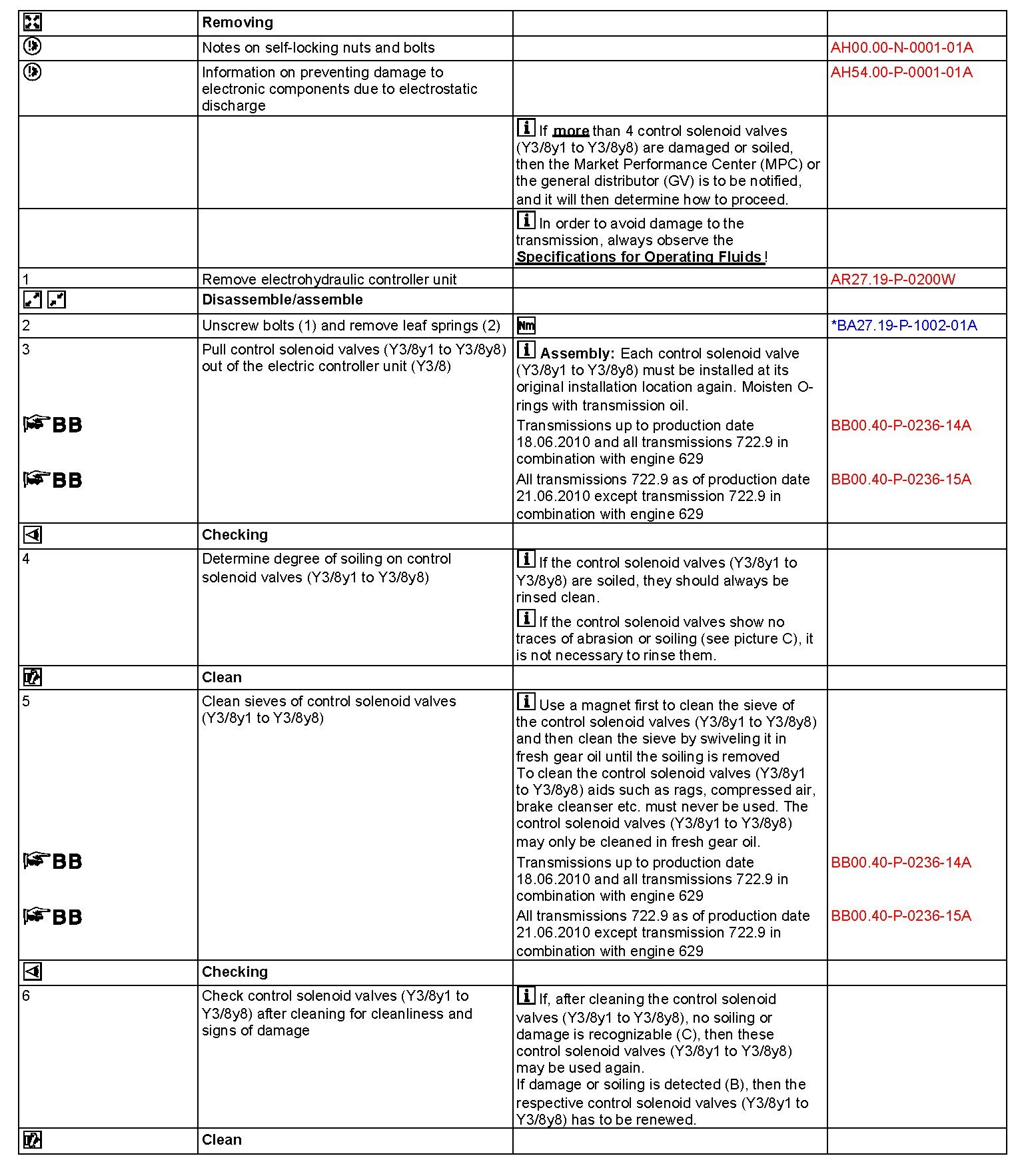

Work Steps 1 - 6:




Work Steps 7 - 11:




Torque Specifications:
