Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shifter A/T >> Description and Operation >> GF27.60-P-5100-03PZ Center Shifter Console, Design

GF27.60-P-5100-03PZ Center Shifter Console, Design



GF27.60-P-5100-03PZ Center shifter console, design
- TRANSMISSION 722.6
- 209 as of 1.6.03
- 211 as of 1.9.03
- 219

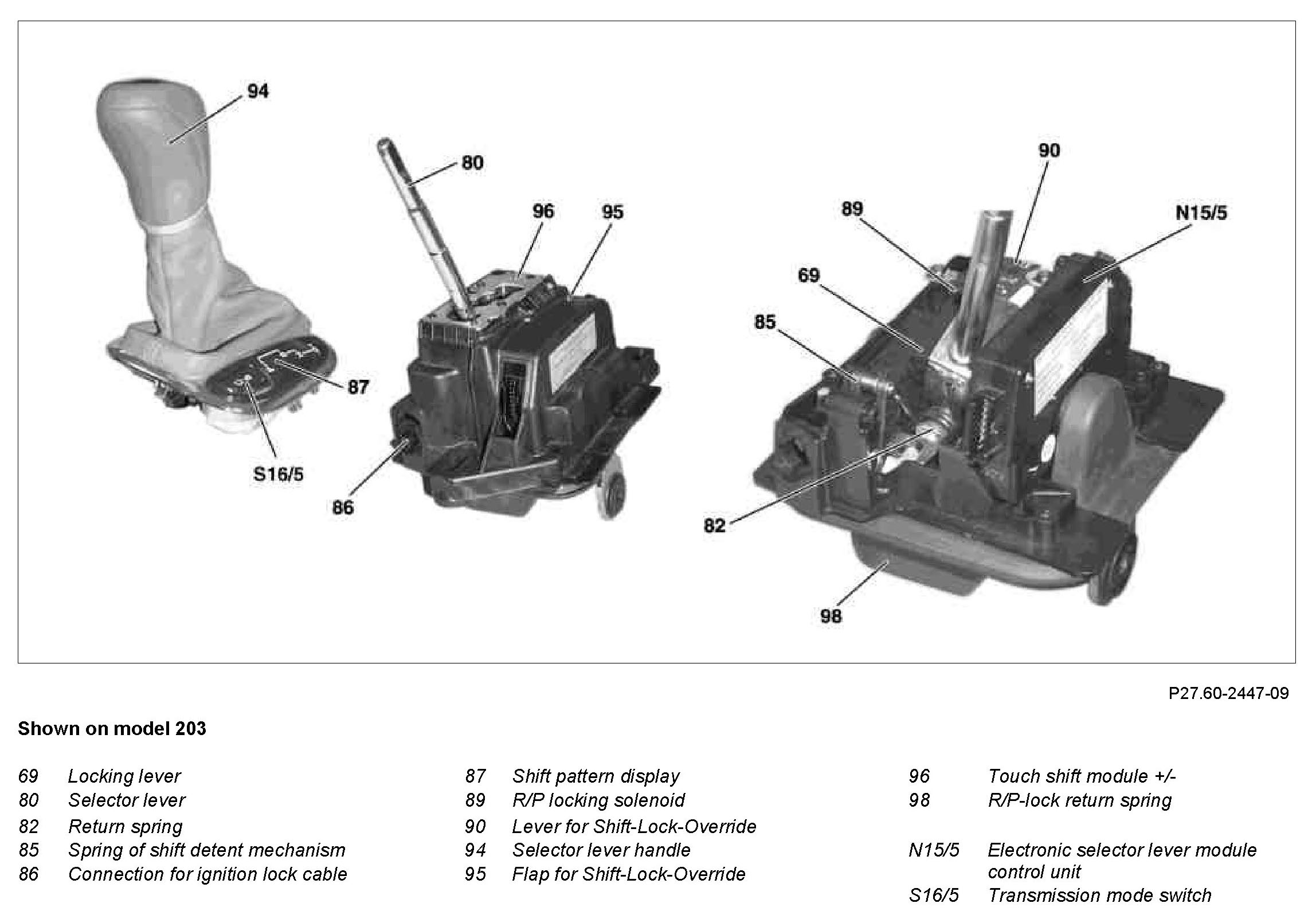

Component Identification:
