GF27.10-P-0001-05NT Automatic Transmission (AT), Selector Lever Positions

GF27.10-P-0001-05NT Automatic transmission (AT), selector lever positions
- TRANSMISSION 722.9
- except CODE (428) Steering wheel shift buttons

Component Identification:

The selector lever can be moved into 6 different positions. The driver can select 2 different transmission modes using the transmission mode switch (S16/5).

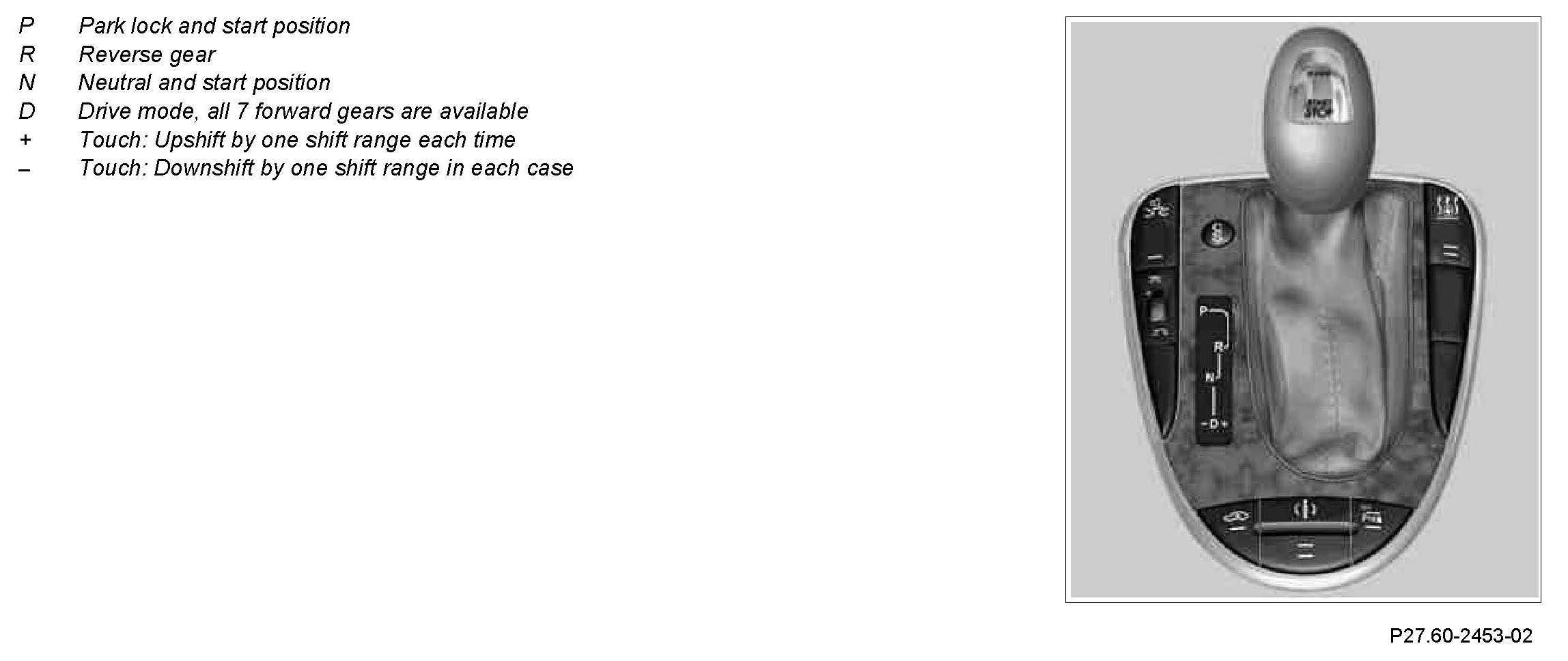

The selector lever positions have the following meanings:
P Park lock and start position.
R Reverse gear.
N Neutral and start position (power transmission does not take place, the vehicle is freely moveable).
D Drive mode, all 7 forward gears are available.
+ Touch: Upshift by one shift range each time. Press and hold down: Change from the current shift range direct to "D"
- Touch: Shift down one shift range. The selected gear is only engaged at the permitted rotational speed. Press and hold down: The transmission is shifted into a gear from which the vehicle can be easily accelerated or decelerated.

With a finite shift range, upshifting takes place close to the engine limit speed.

Transmission mode switch (S16/6)
Sport program "S":
^ Starting off in 1st gear for all driving situations.

Comfort program "C":
^ Starting off always in 2nd gear (except 1st gear shift range).
^ The gears are not driven to maximum revs.

If kickdown is actuated the gears are shifted up and down as for the sport program "S".
