GF27.10-P-0001-04PZ Automatic Transmission (AT), Location of Components, Floor Shift



GF27.10-P-0001-04PZ Automatic transmission (AT), location of components, floor shift
- TRANSMISSION 722.6
- 209.3 as of 1.6.03
- 209.4
- 211 as of 1.9.03
- 219.376

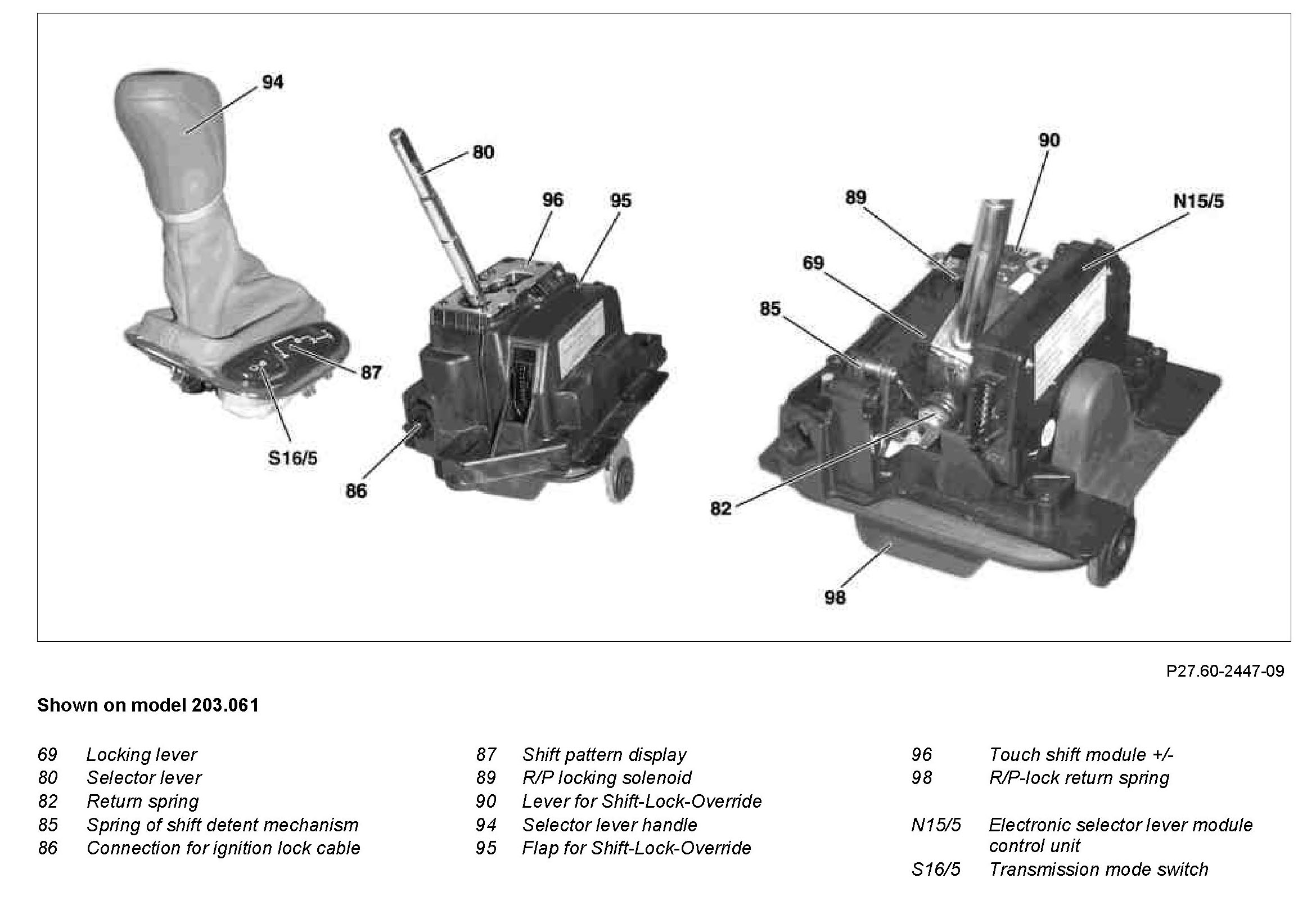

Component Identification:
