FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2008
>>
E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Description and Operation
>>

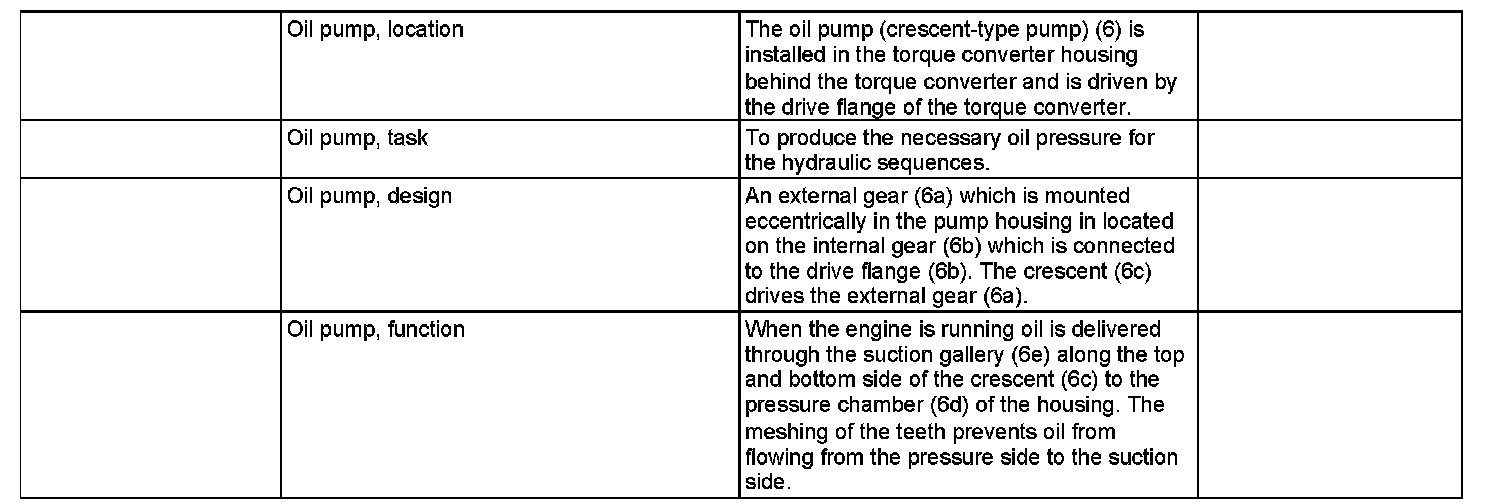

GF27.10-P-5103G Location/Task/Design/Function of Oil Pump
GF27.10-P-5103G Location/Task/Design/Function of Oil Pump
GF27.10-P-5103G Location/task/design/function of oil pump
- TRANSMISSION 722.6
Component Identification:
