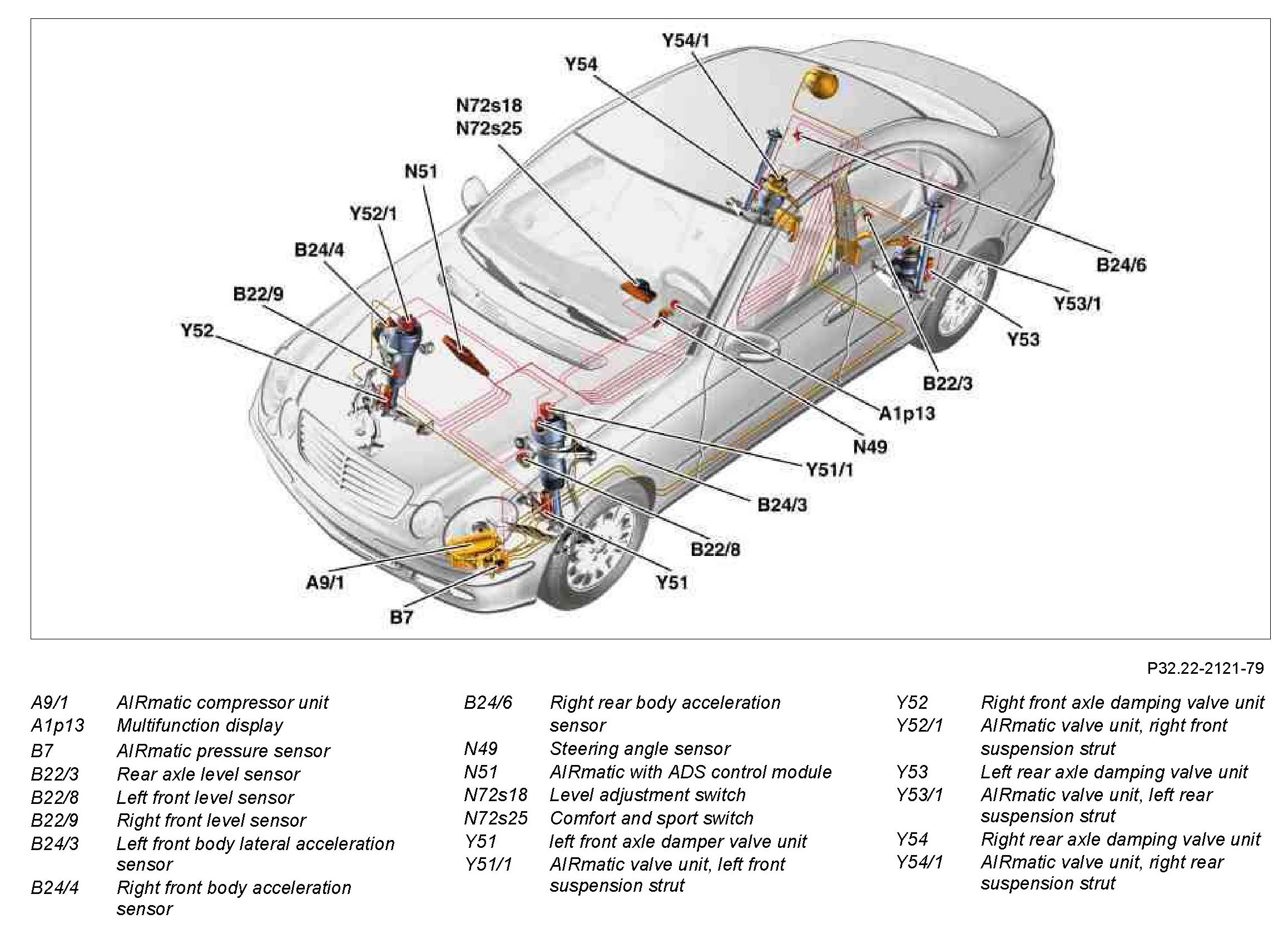

GF32.22-P-0003-03E AIRmatic - Location of the Electrical/Electronic Components



GF32.22-P-0003-03E AIRmatic - location of the electrical/electronic components
- with CODE (489a) Airmatic (semi-active air suspension)


Component Identification:
