Electrical Diagrams

Wiring Diagram AIRmatic Control Module PE32.22-U-2101DA
- with CODE (489) Airmatic (semi-active air suspension)

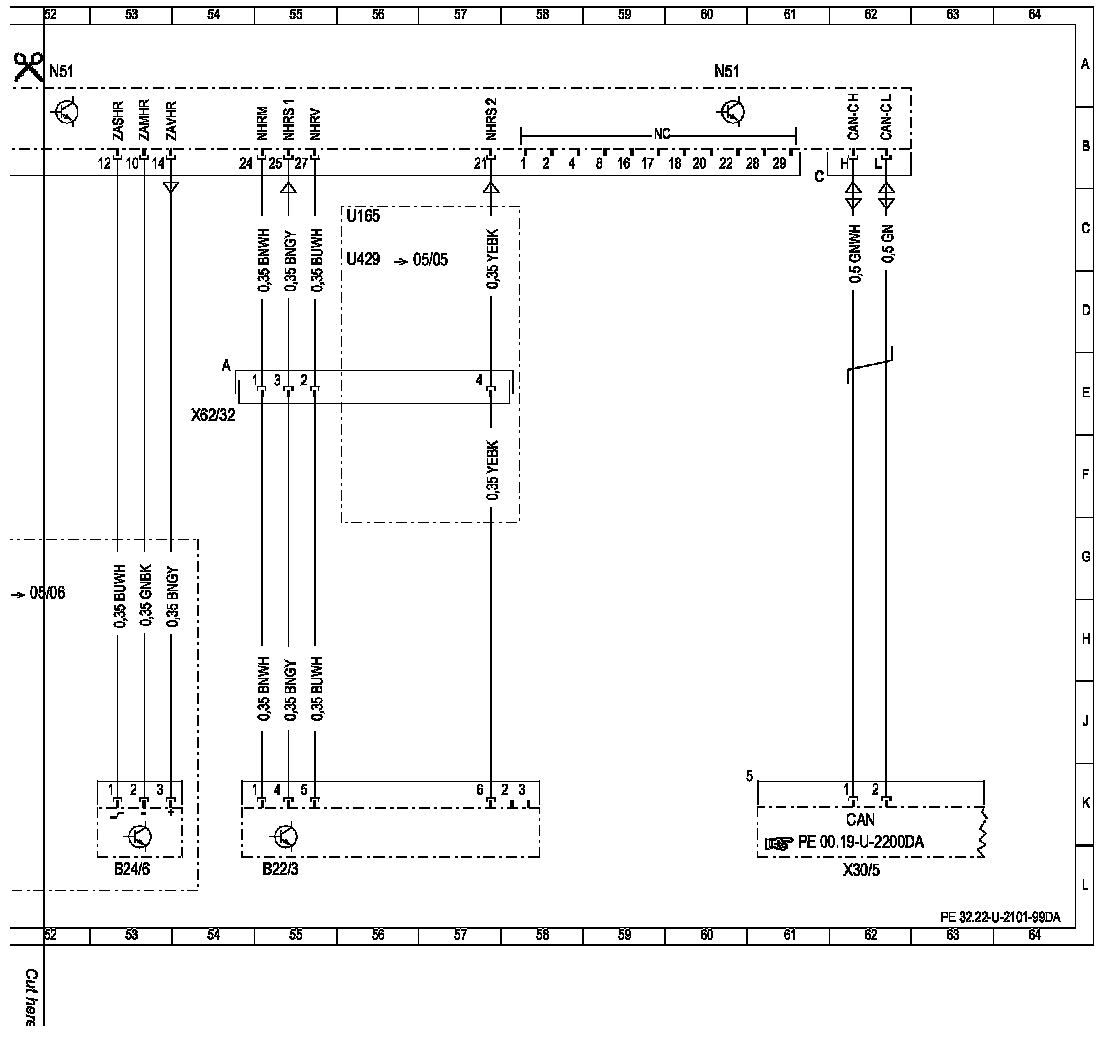

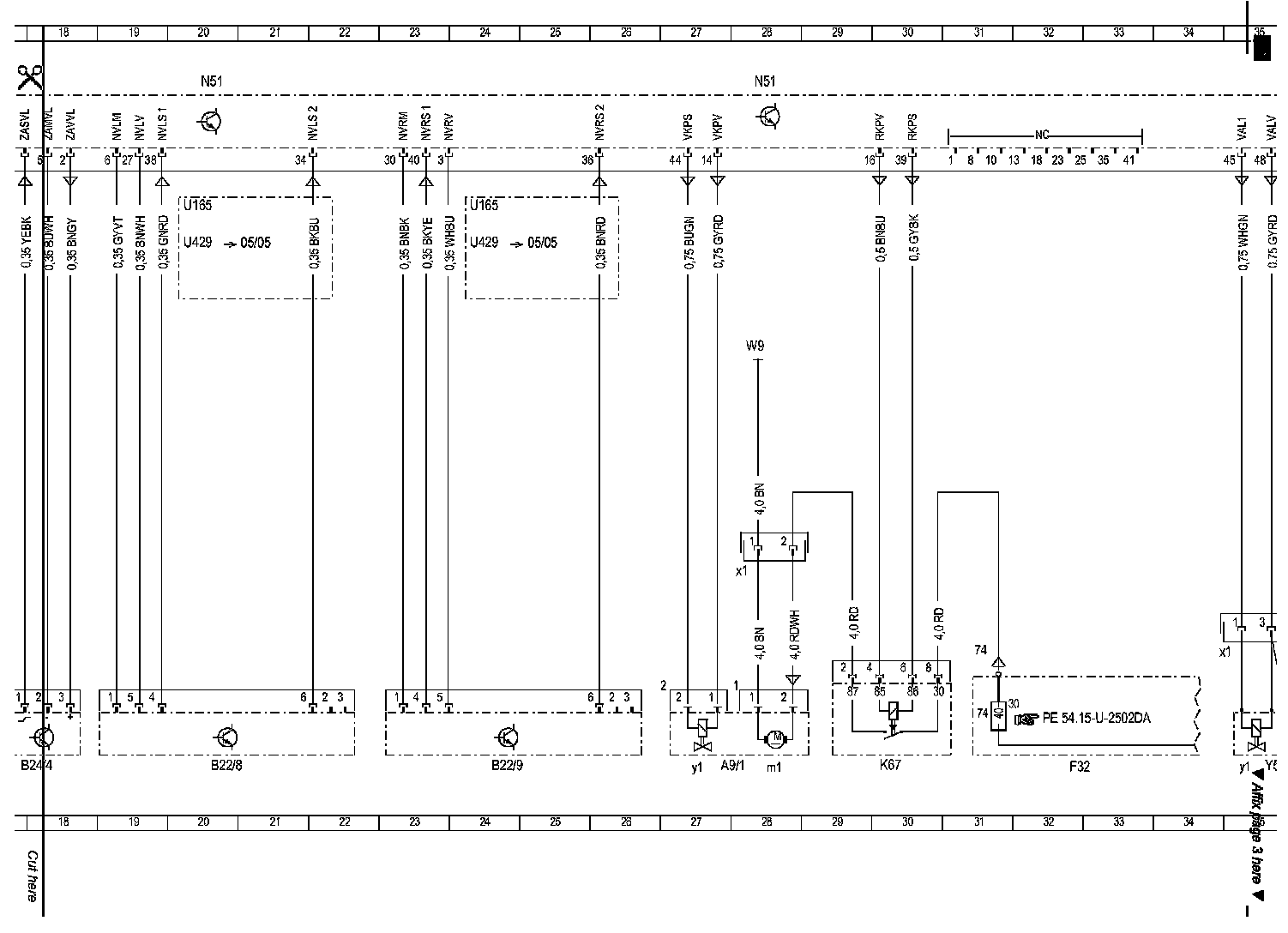

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

Component Description/Coordinates, A9/1 To Y51y1:

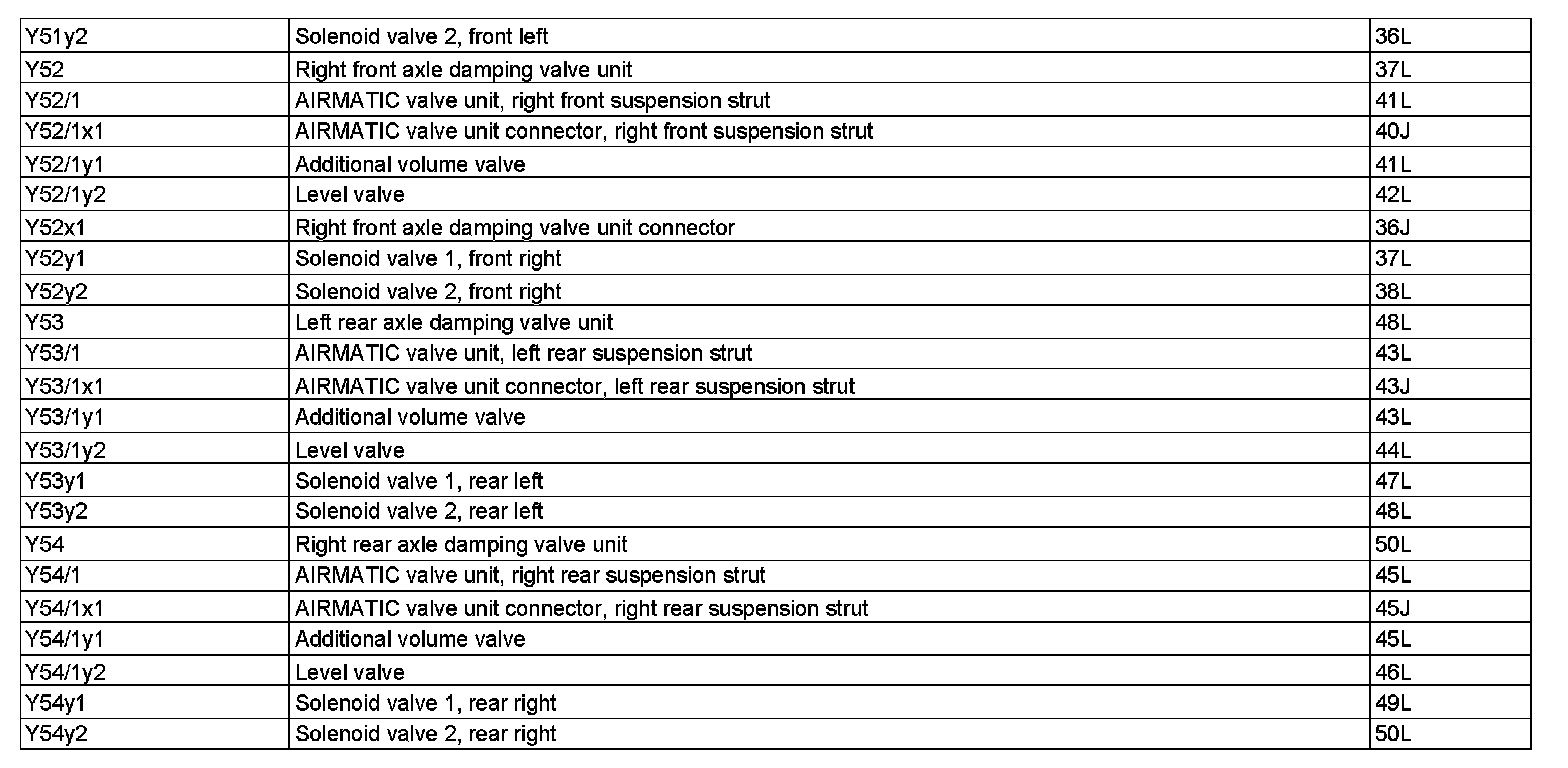

Component Description/Coordinates, Y51y2 To Y54y2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
