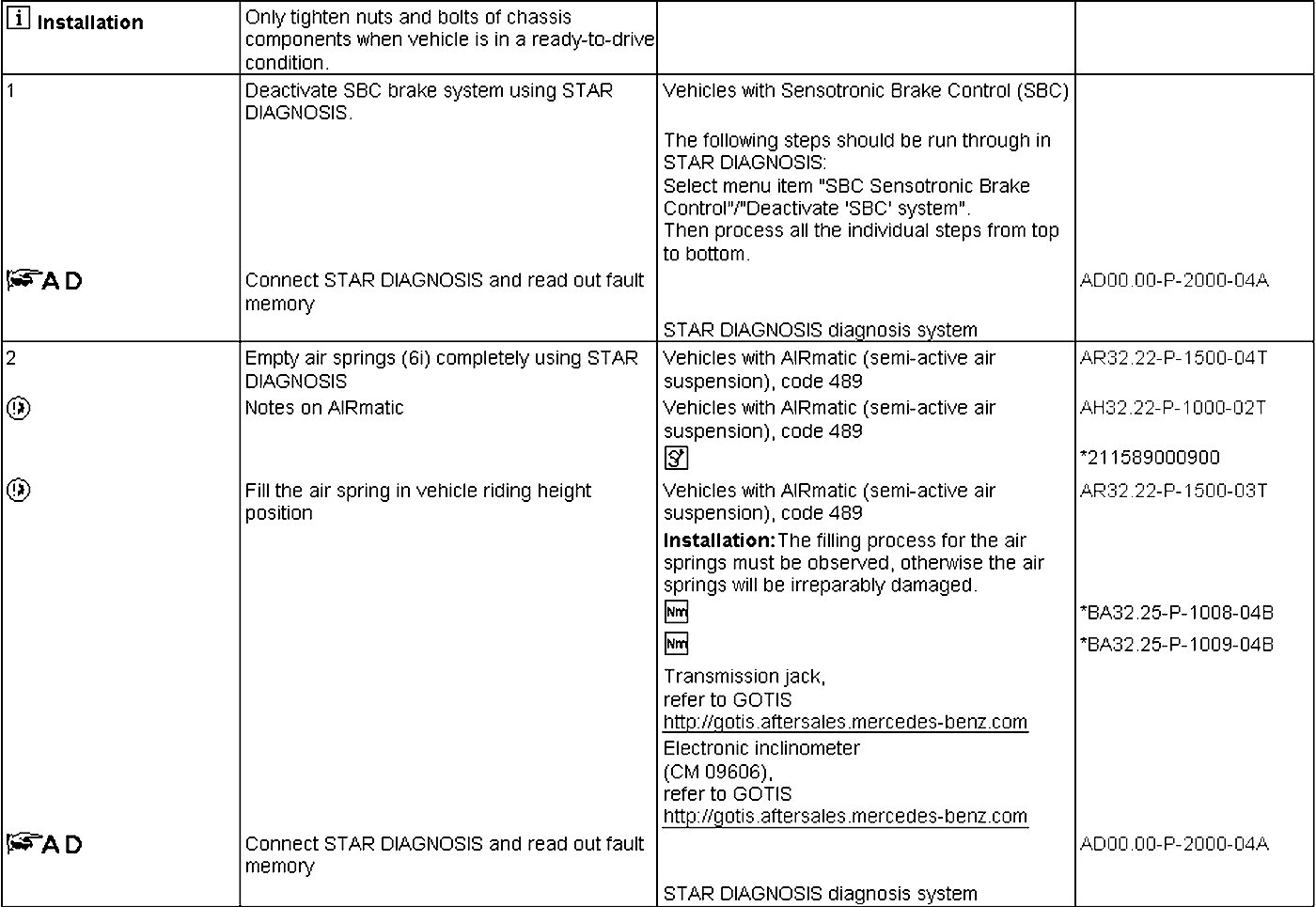

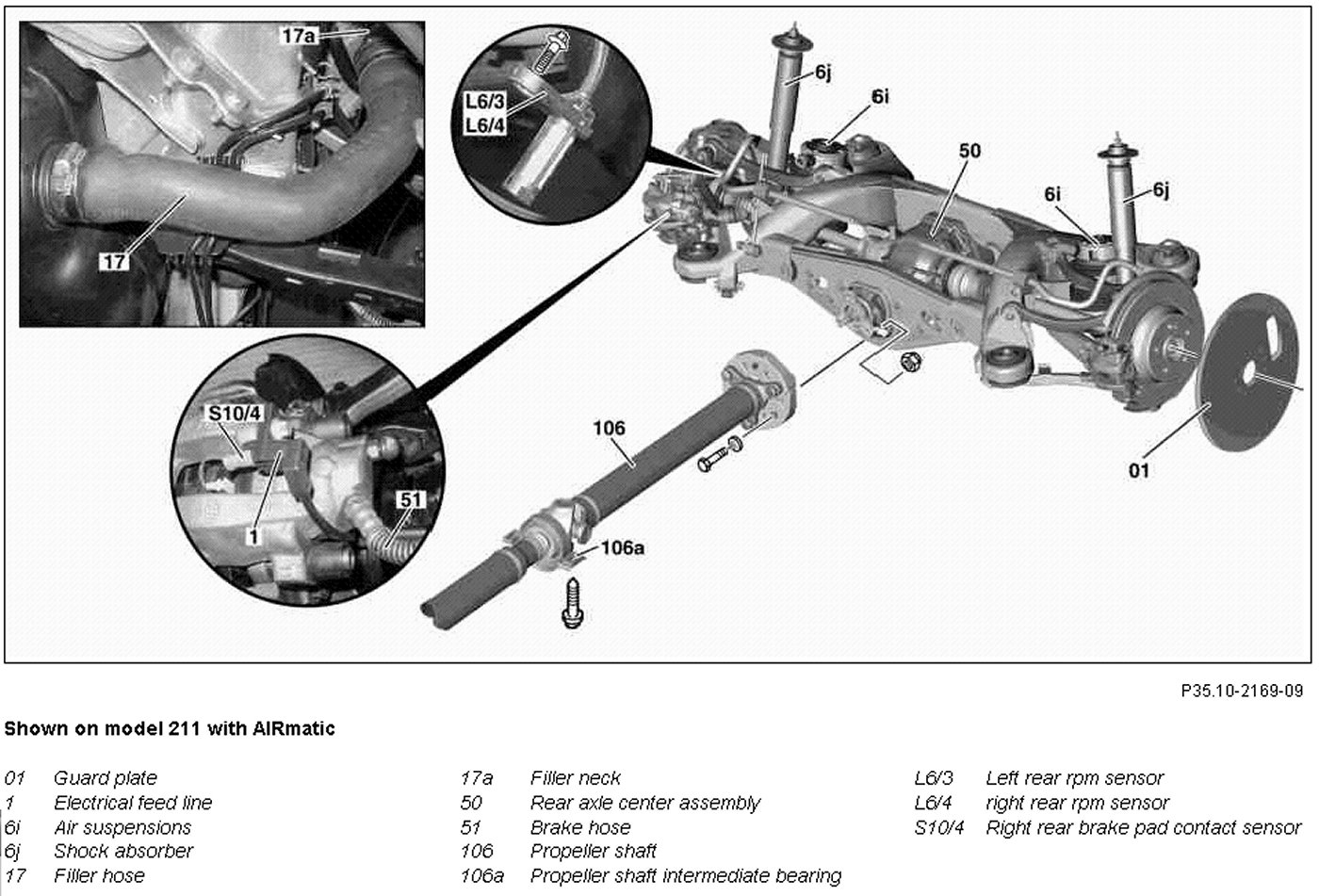

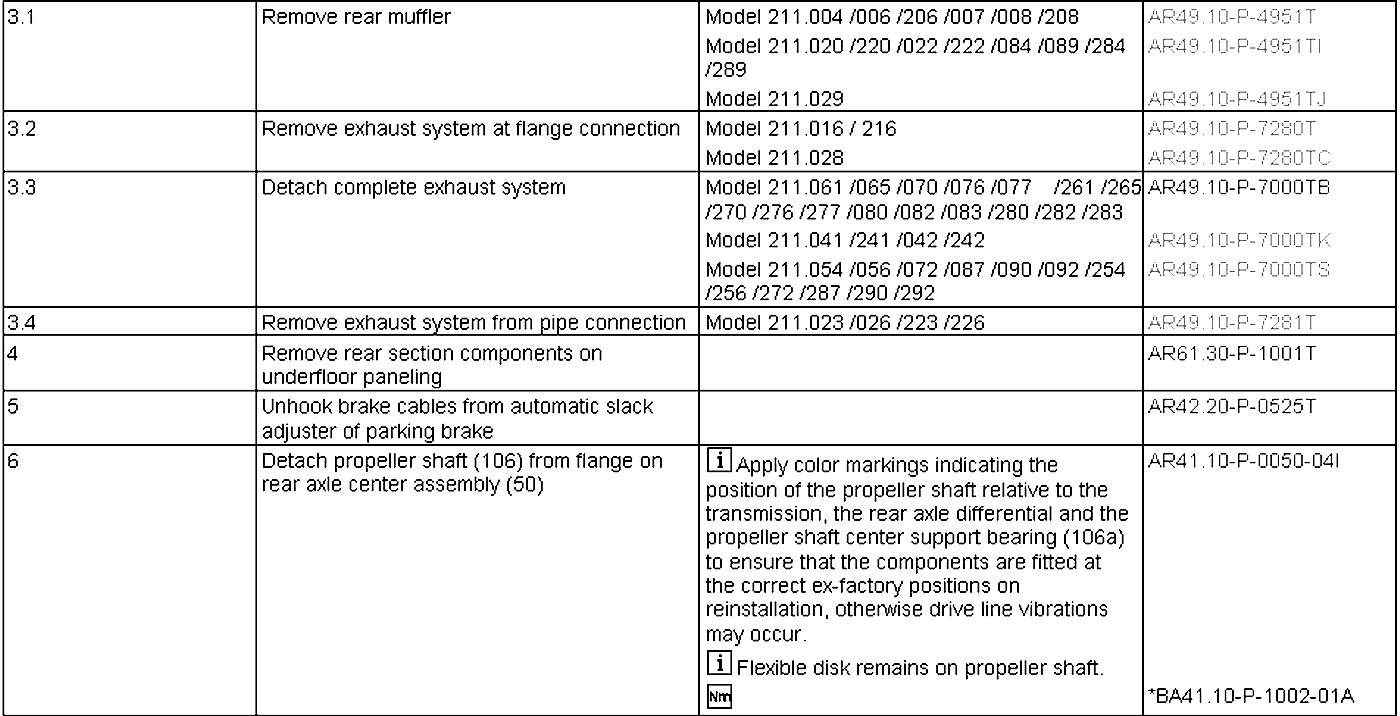

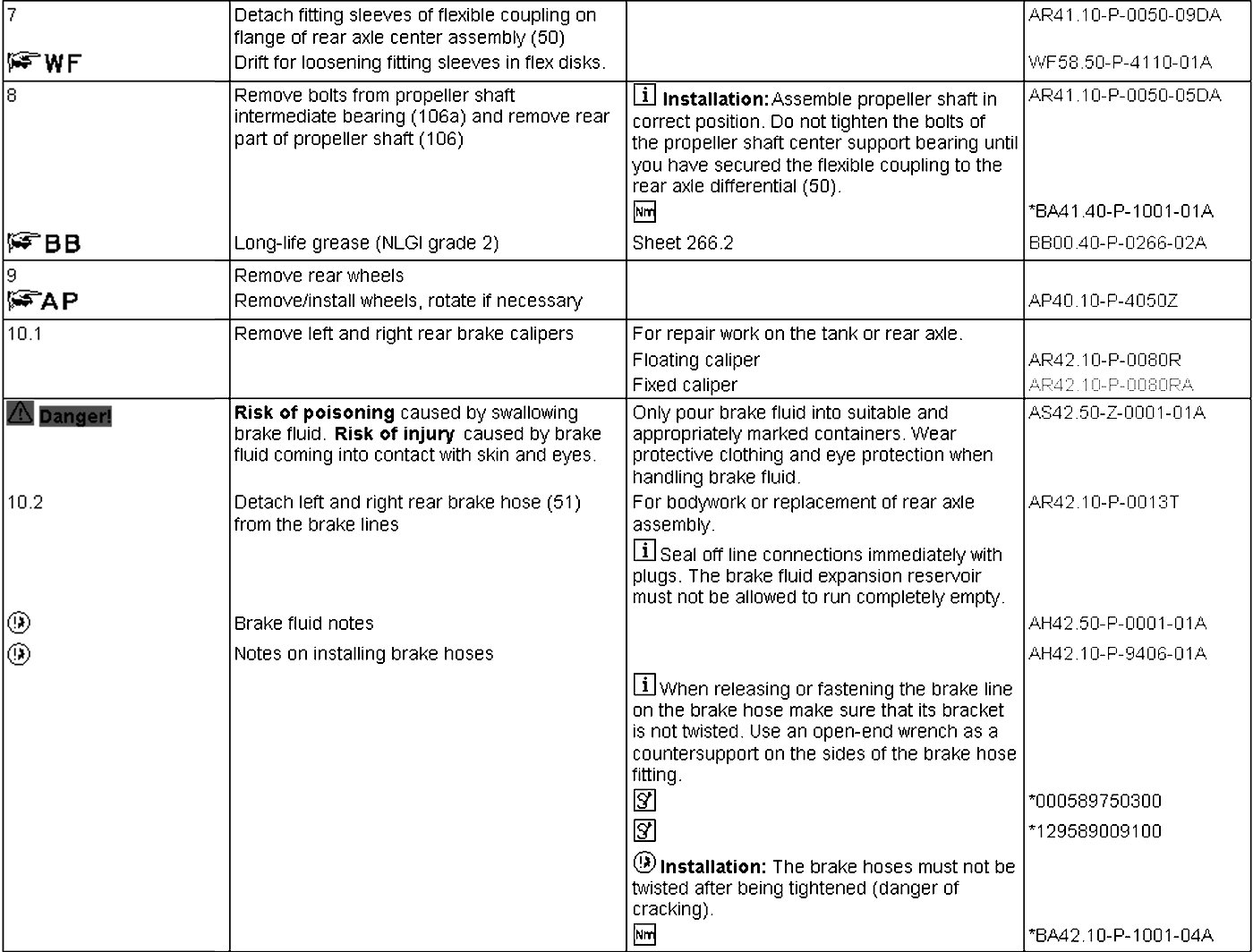

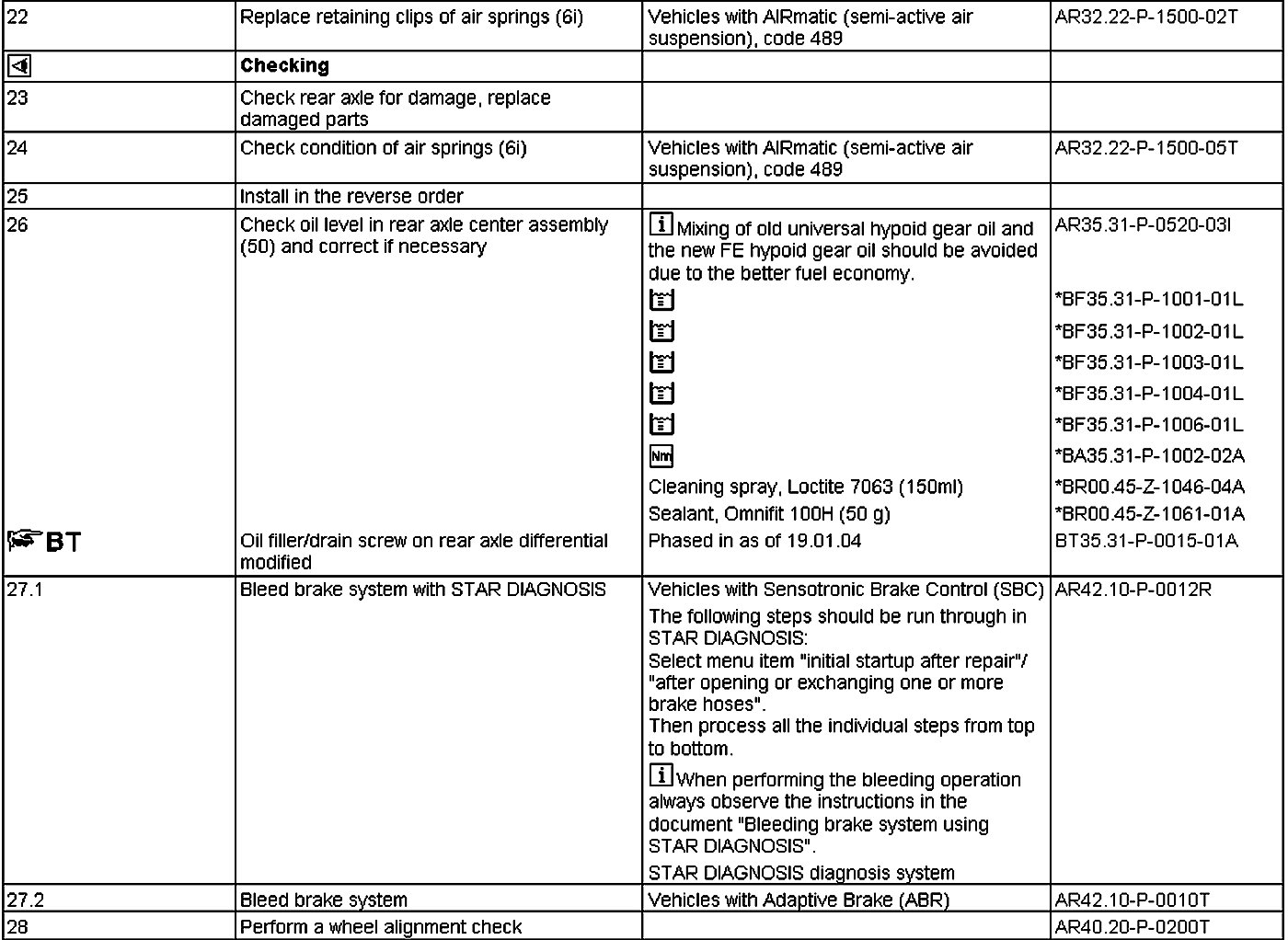

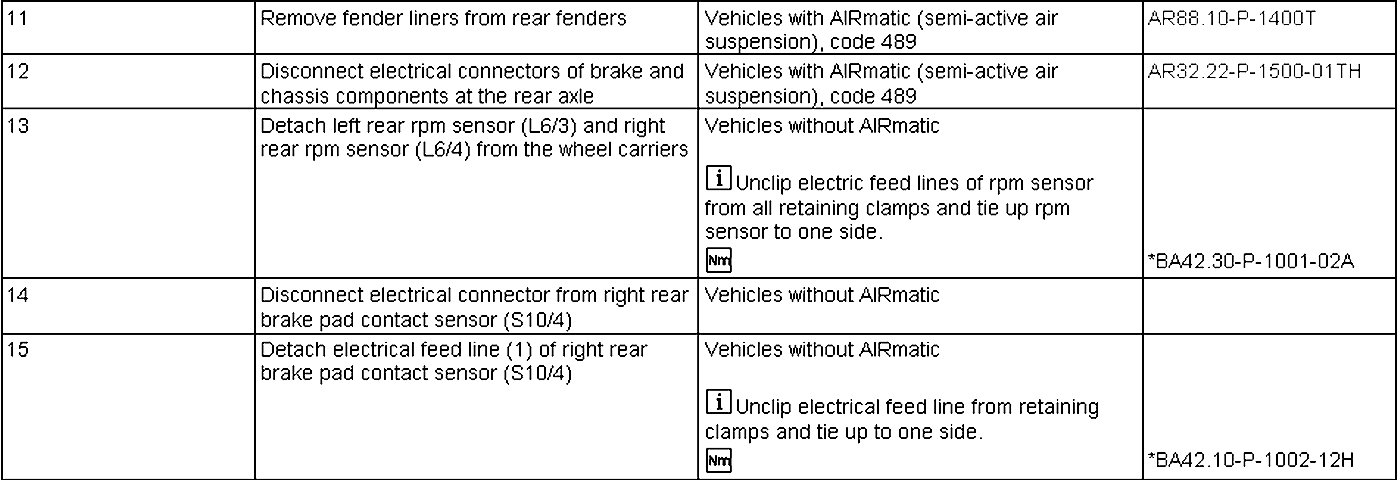

AR35.10-P-0010T Remove/ Install Complete Rear Axle w/ Airmatic (semi-active air suspension)



AR35.10-P-0010T Remove/ Install Complete Rear Axle
