Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Stabilizer Bar >> Stabilizer Link >> Service and Repair

Stabilizer Link: Service and Repair

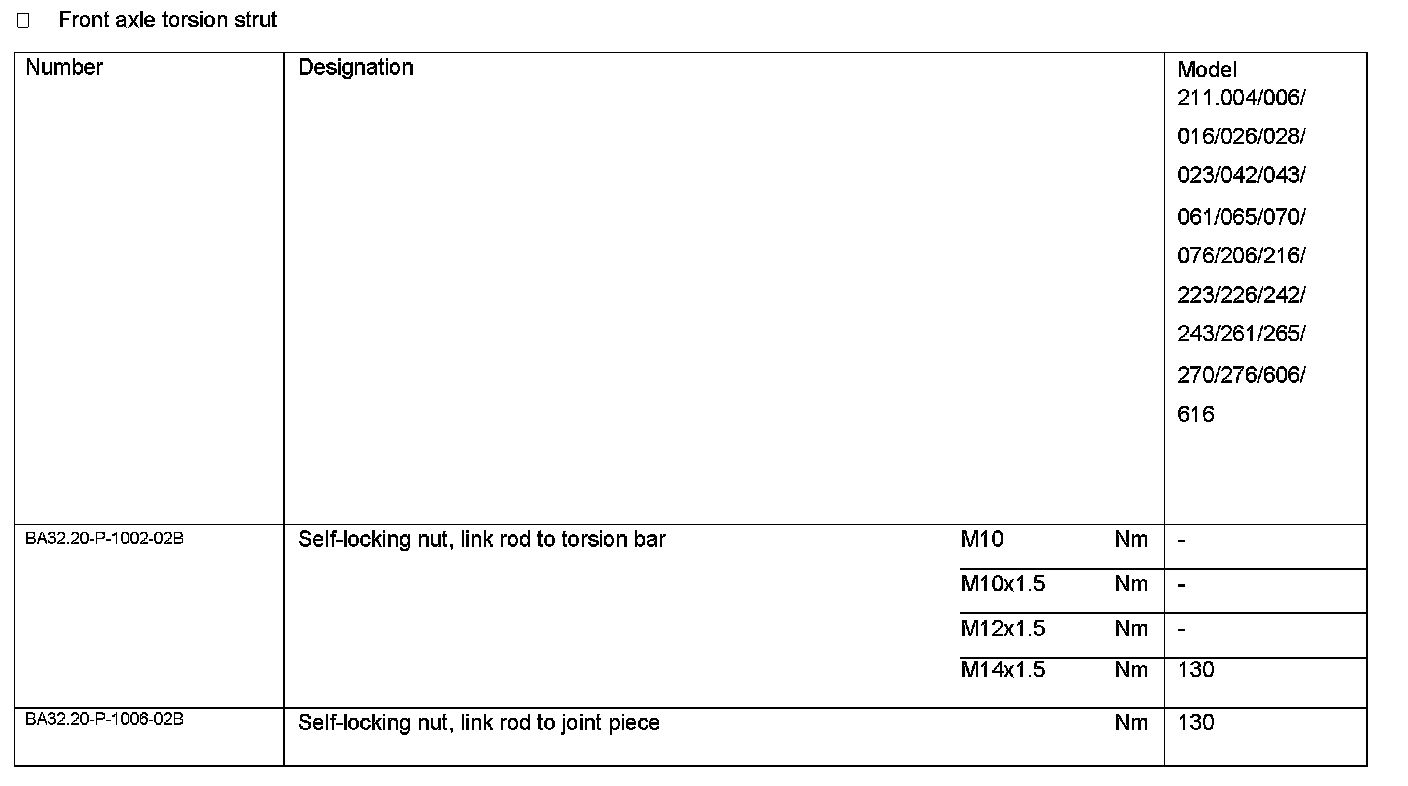

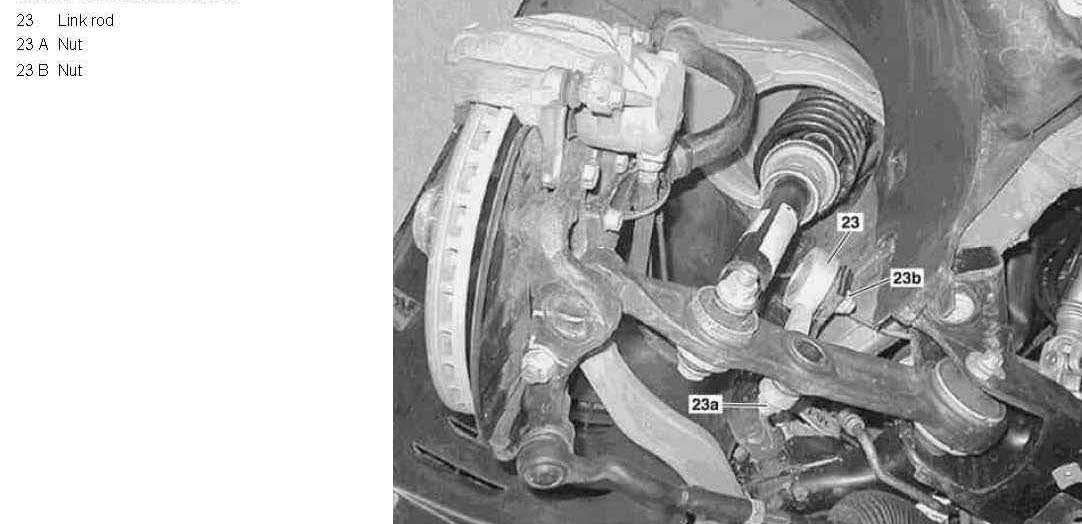

AR32.35-P-3328T Remove/Install Front Stabilizer Bar Link Rod

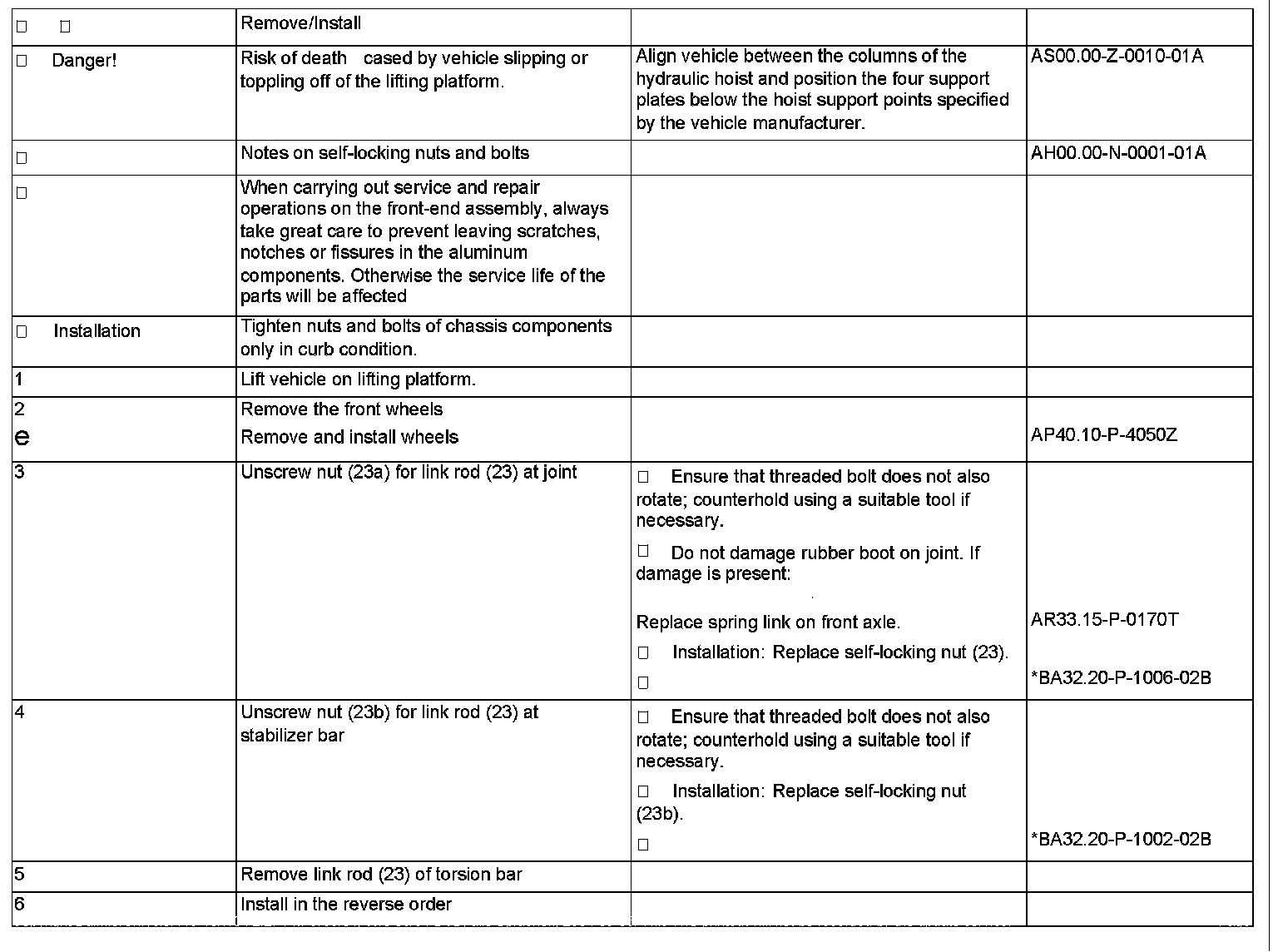

Steps 1-6:
