AR35.20-P-0114T Remove/Install Spring Control Arm and Replacement of Rubber Mount

AR35.20-P-0114T Remove/install spring control arm and replacement of rubber mount
- with CODE (489) Airmatic (semi-active air suspension) [model 211.2]

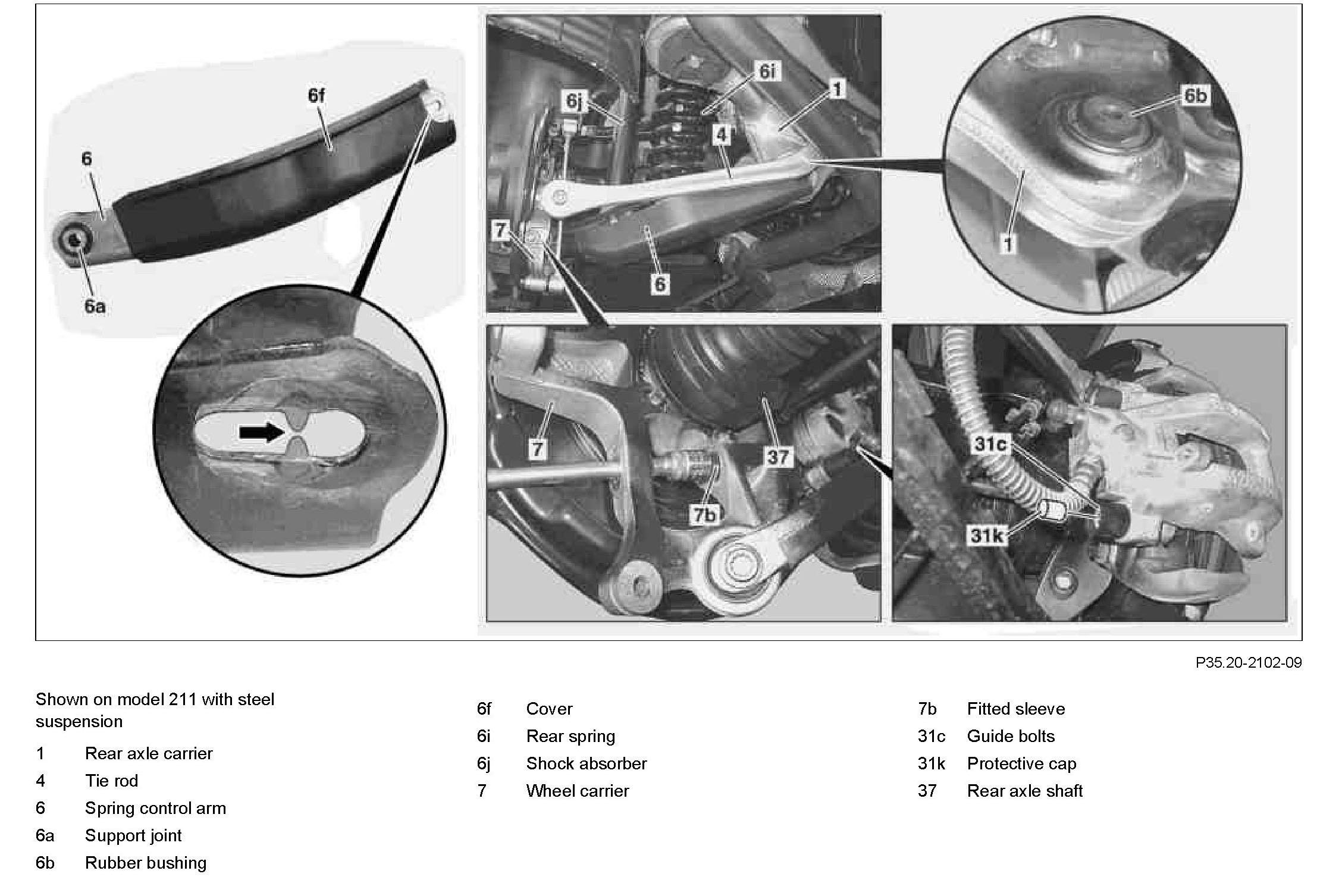

Component Identification:

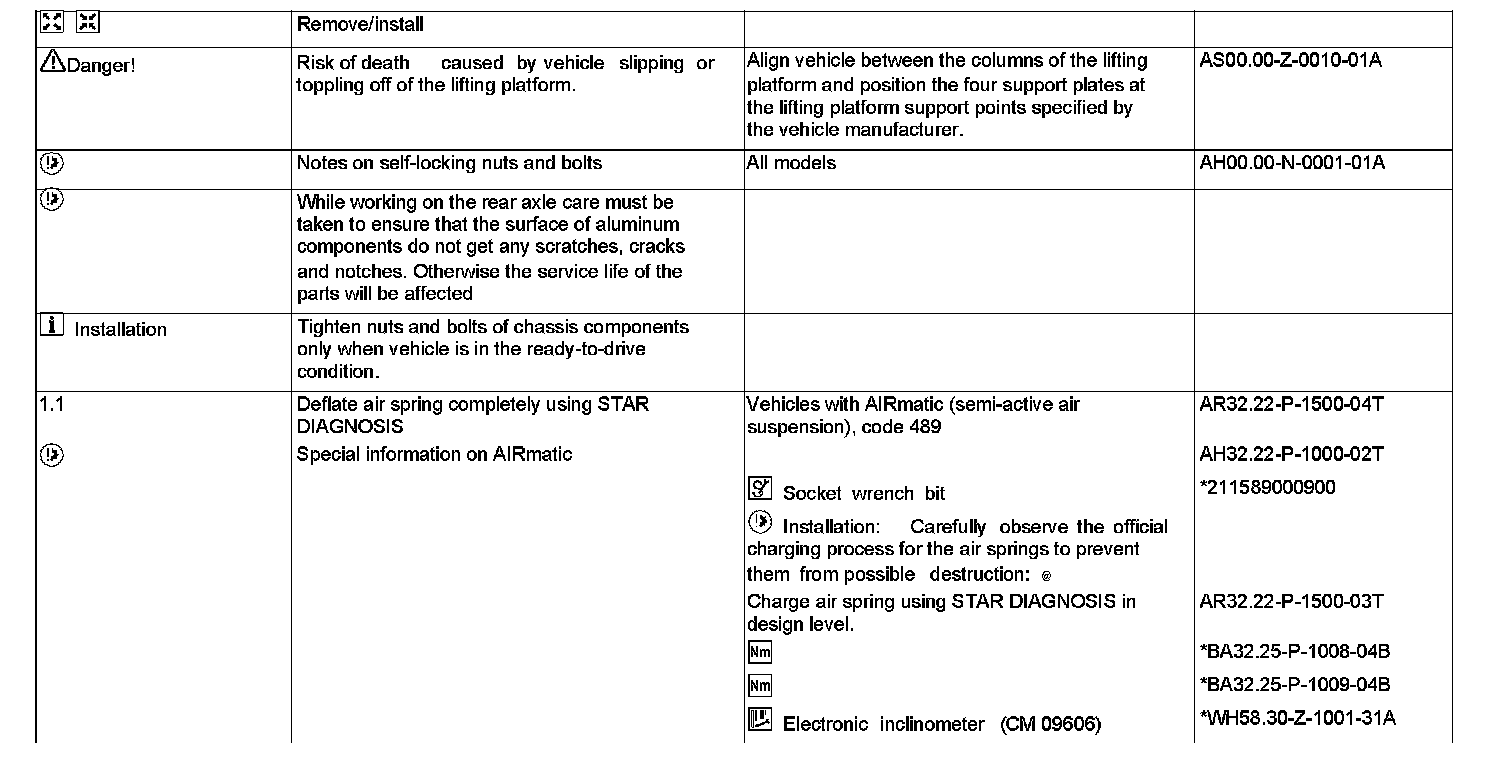

Steps 1.1:

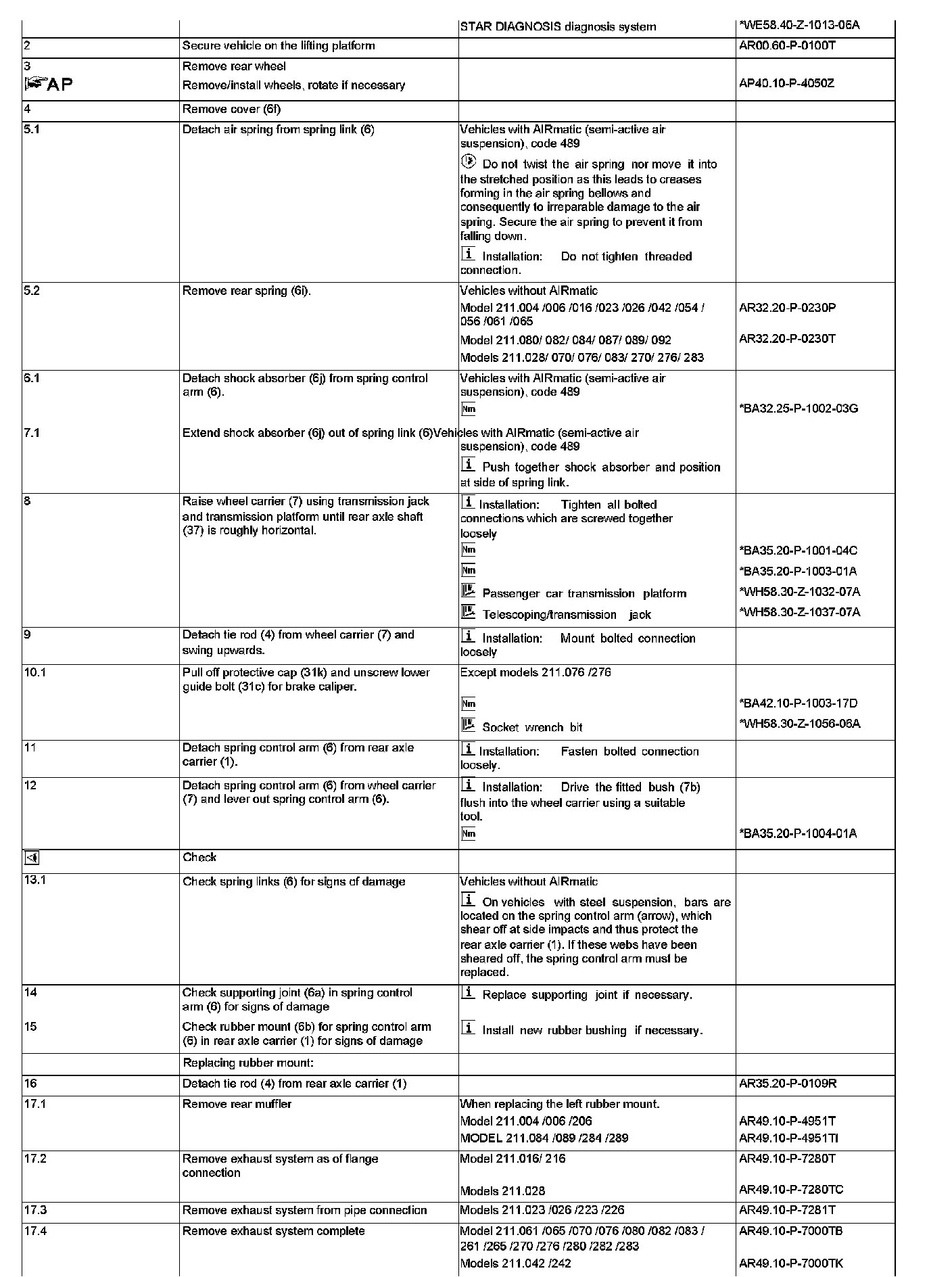

Steps 2 - 17.4:

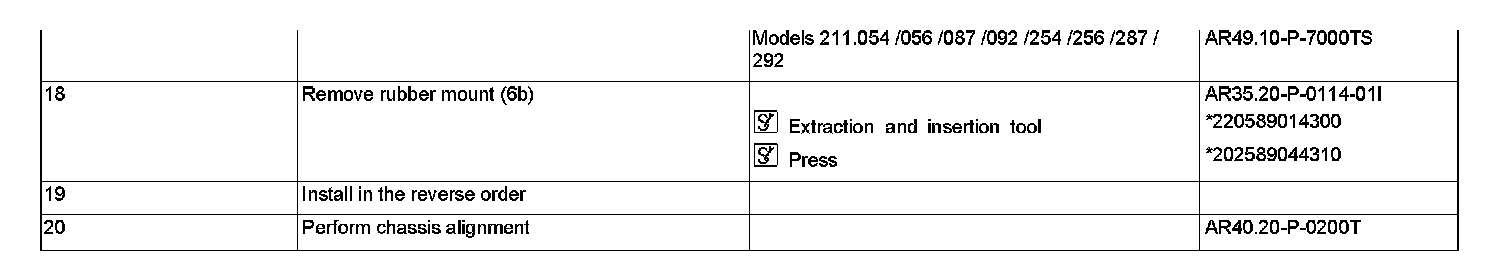

Steps 18 - 20:

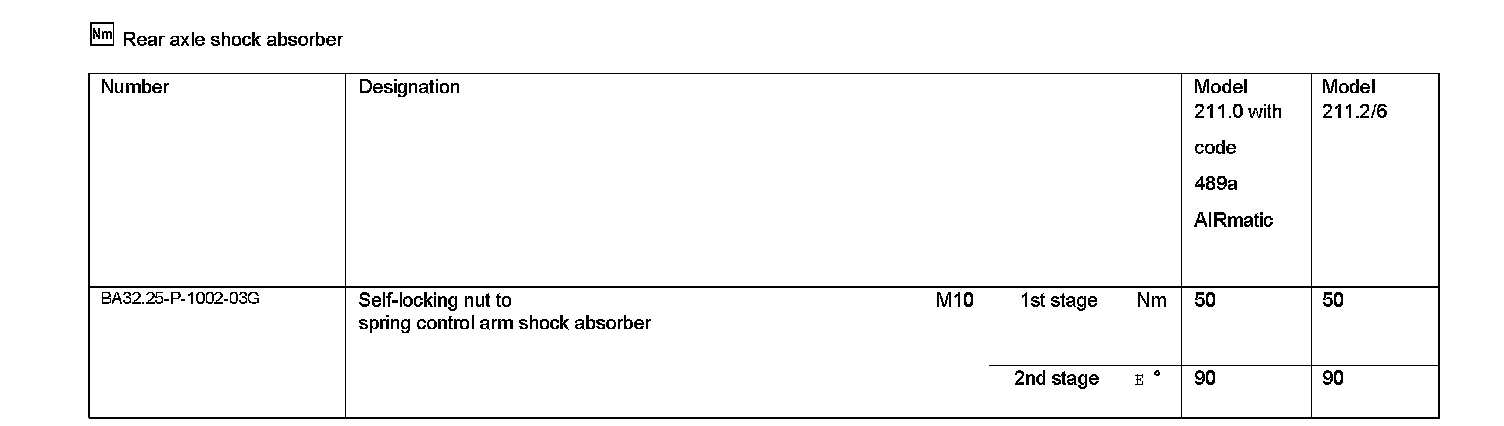

Rear Axle Shock Absorber:

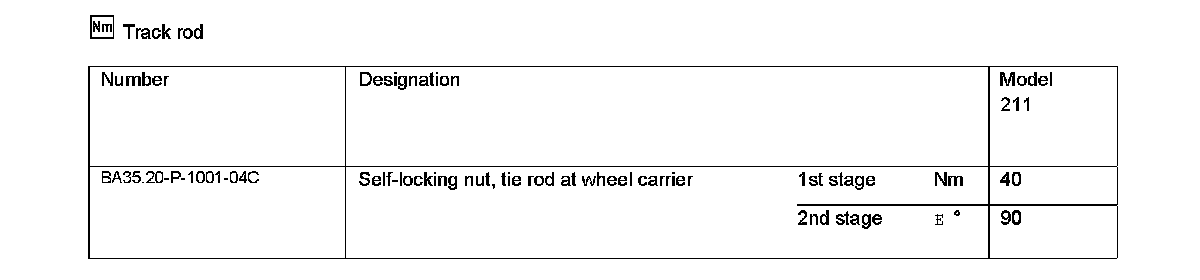

Track Rod:

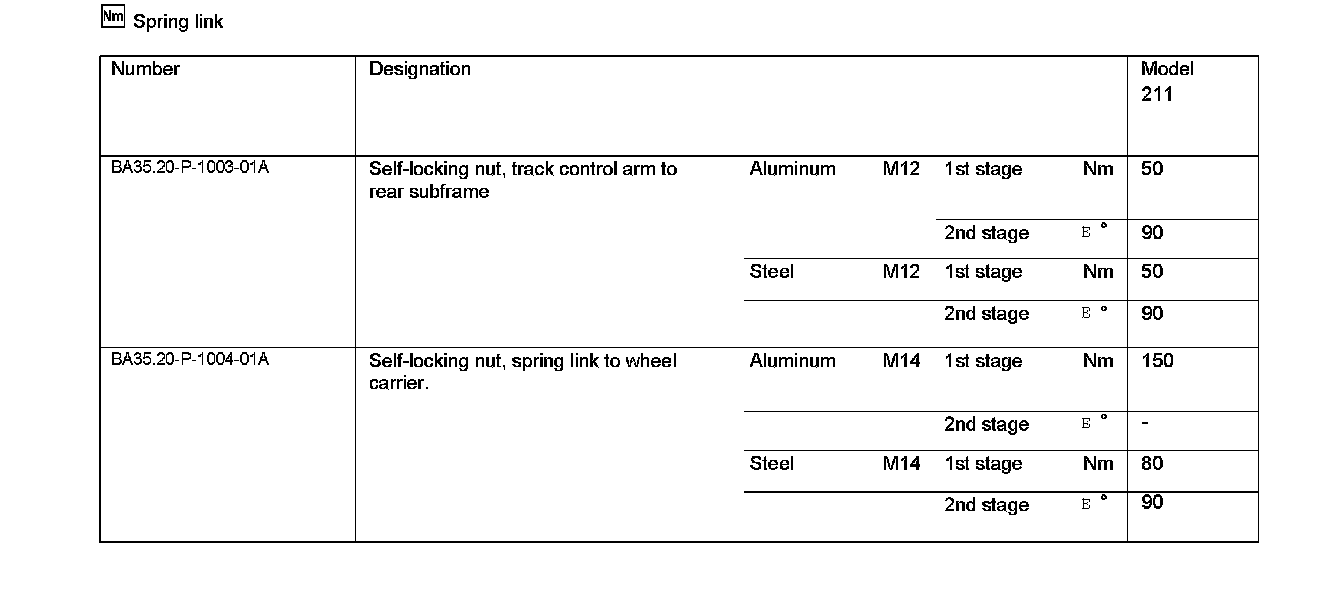

Spring Link:

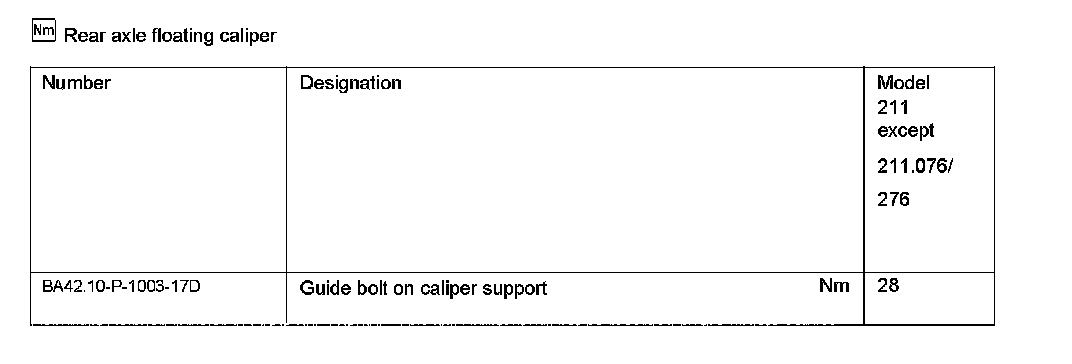

Rear Axle Floating Caliper:

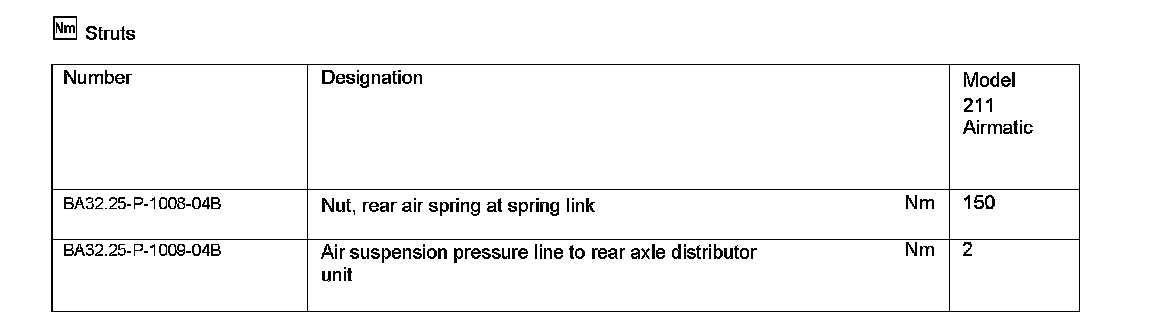

Struts:

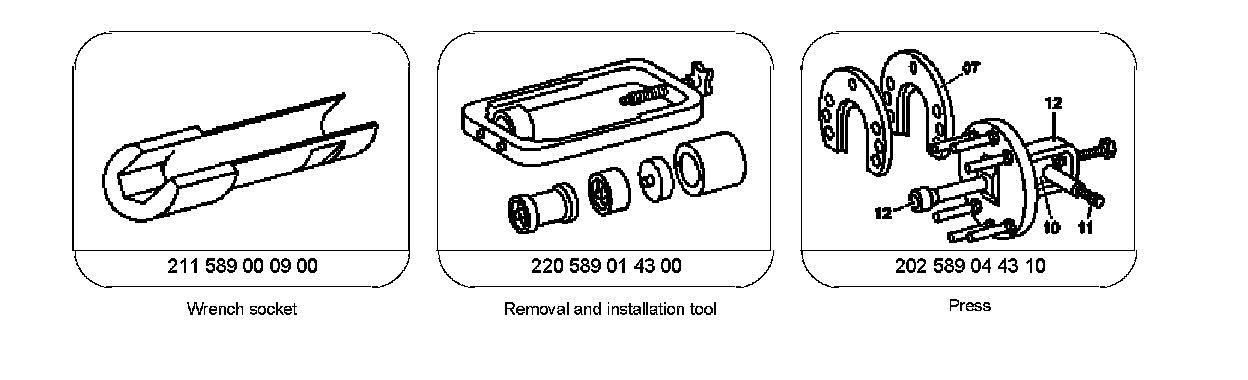

Special Tools:

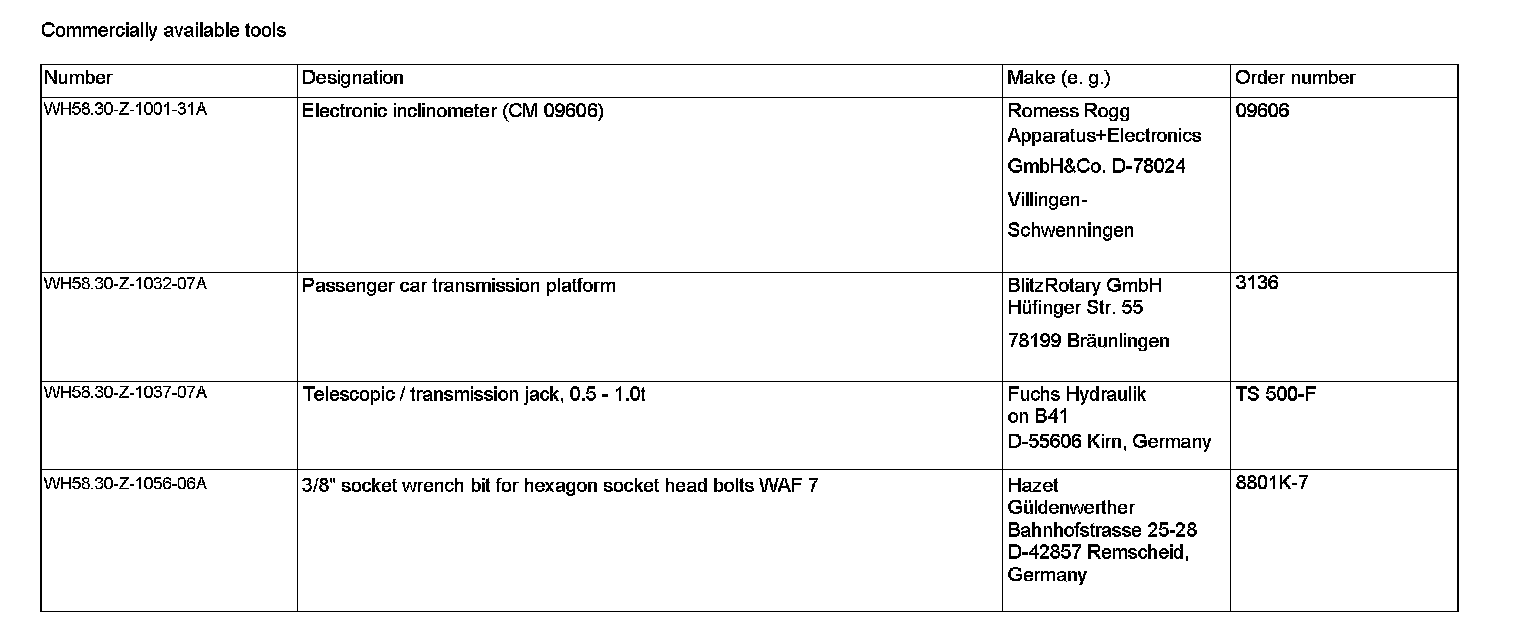

Commercially Available Tools:

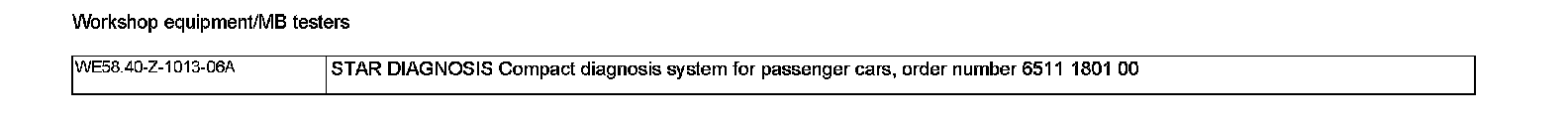

Workshop Equipment/MB Testers:
