AR35.20-P-0118R Remove/Install Supporting Joint at Spring Link



AR35.20-P-0118R Remove/install supporting joint at spring link

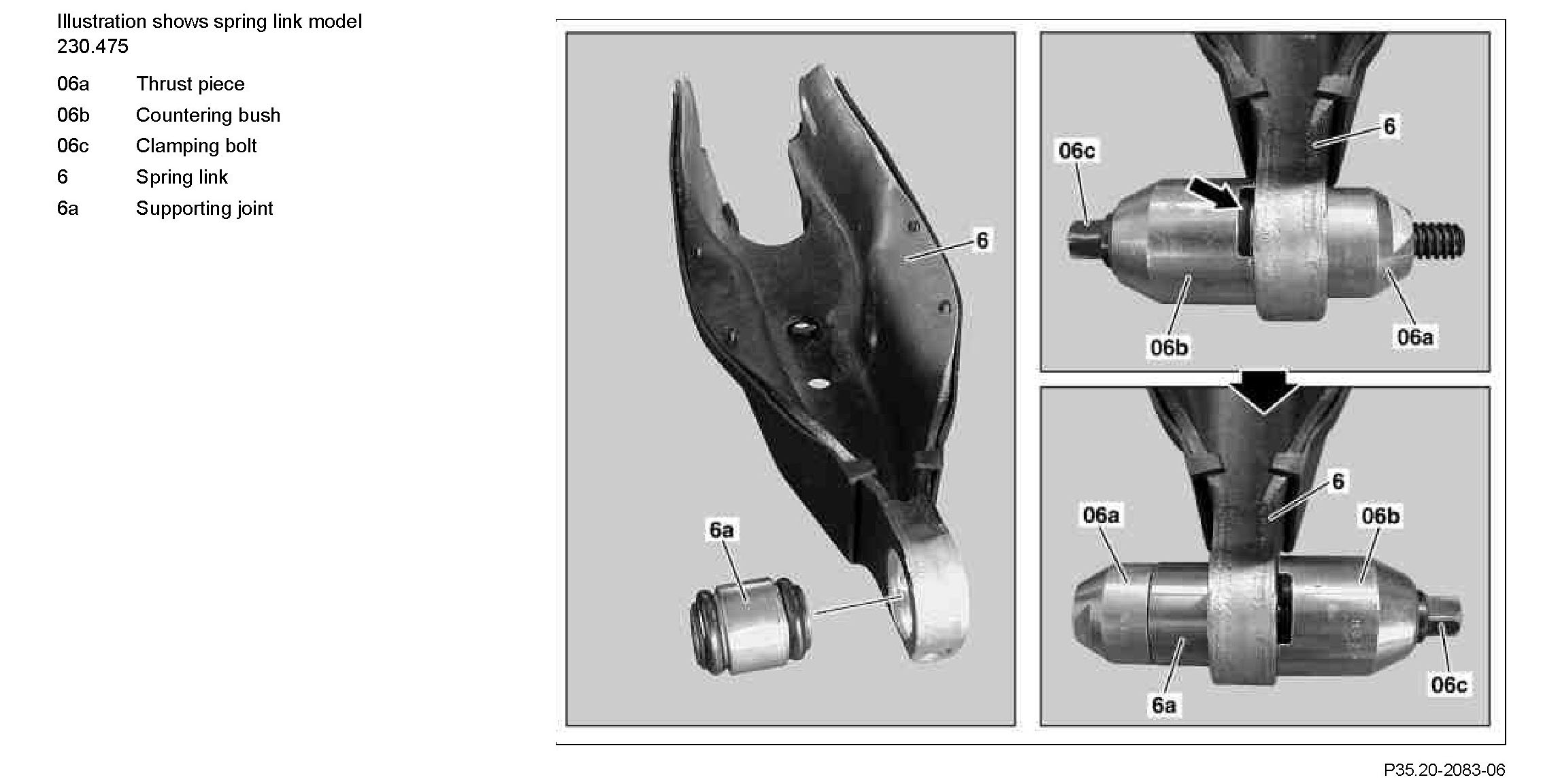

Component Identification:

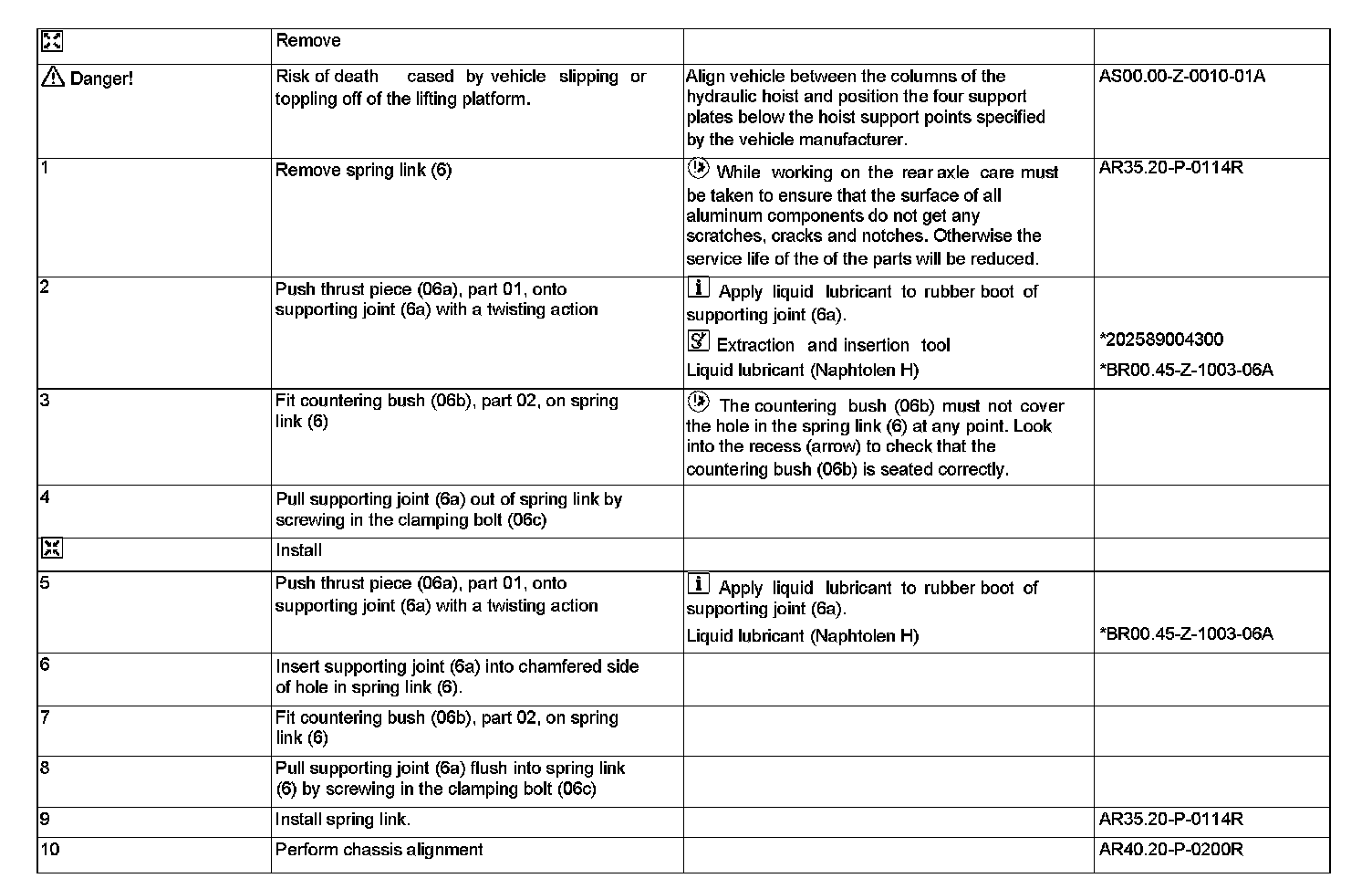

Steps 1 - 10:

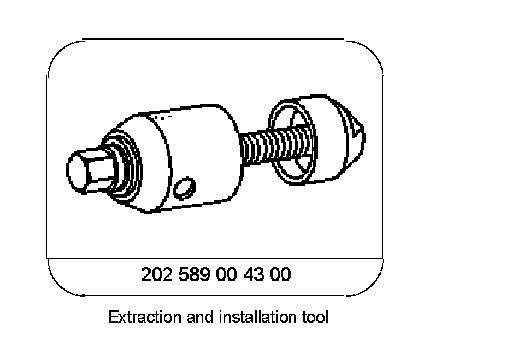

Special Tools:

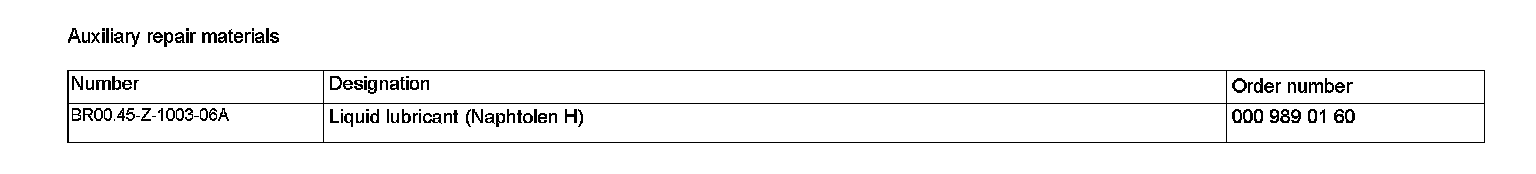

Auxiliary Repair Materials:
