Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Component Tests and General Diagnostics >> Checking Oil Pressure of Power Steering Pump [AR46.30-P-0100GH]

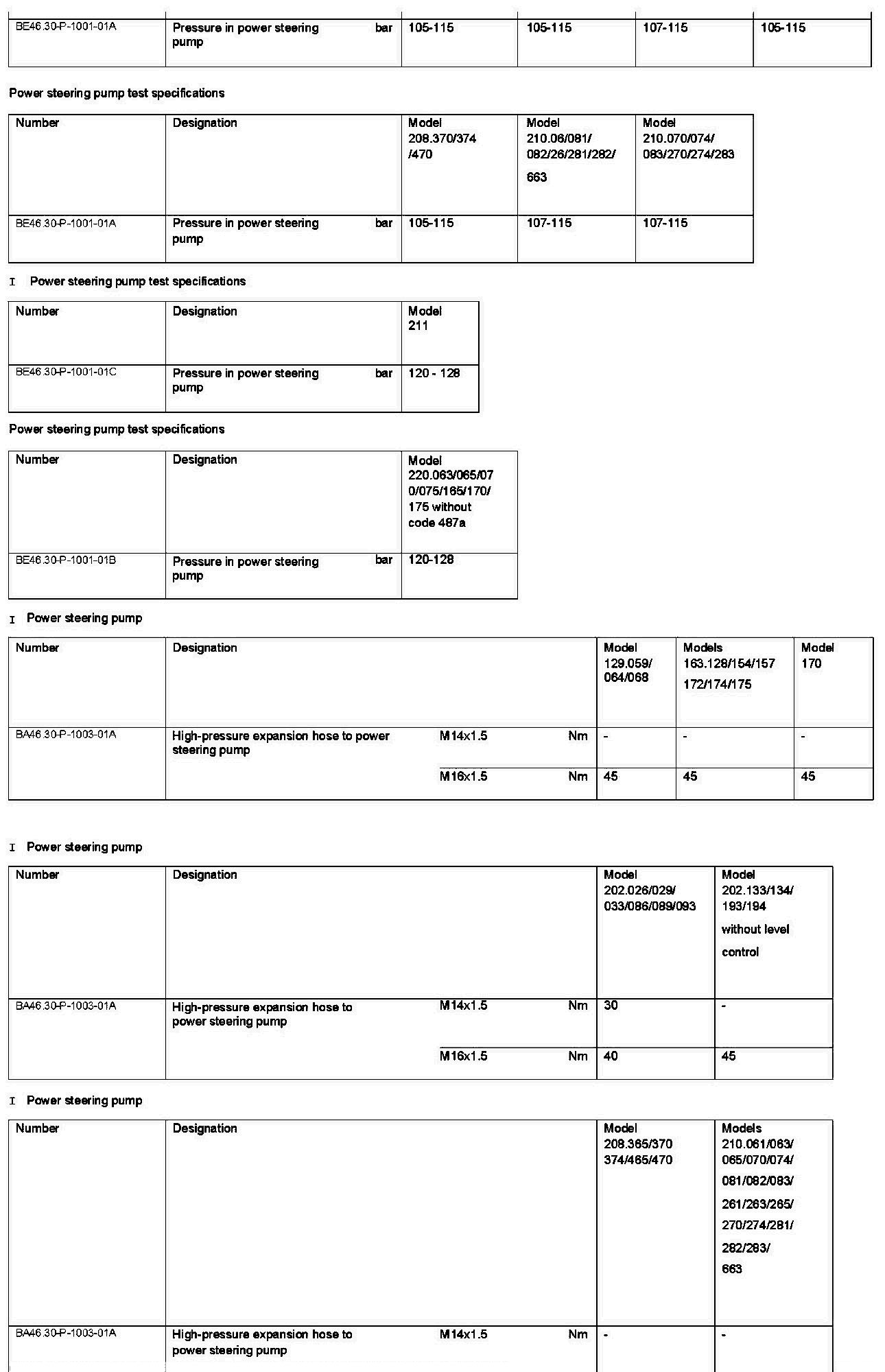

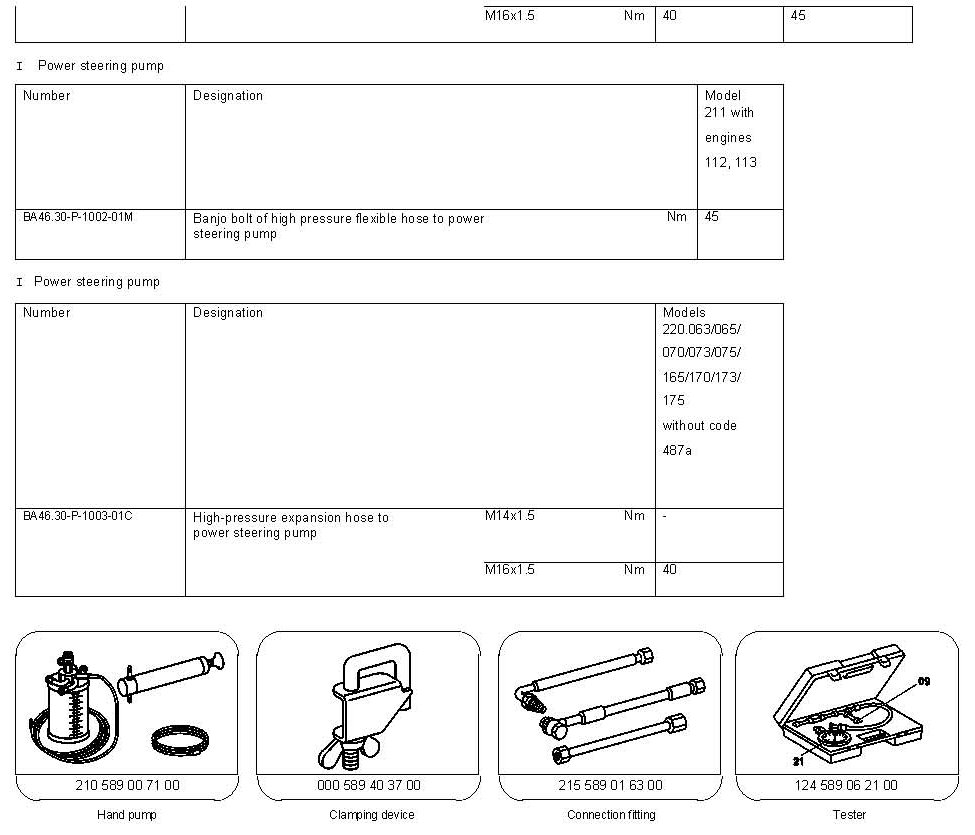

Checking Oil Pressure of Power Steering Pump [AR46.30-P-0100GH]


Checking oil pressure of power steering pump
