Alternator: Service and Repair
AR15.40-P-5032TI Remove/install alternator

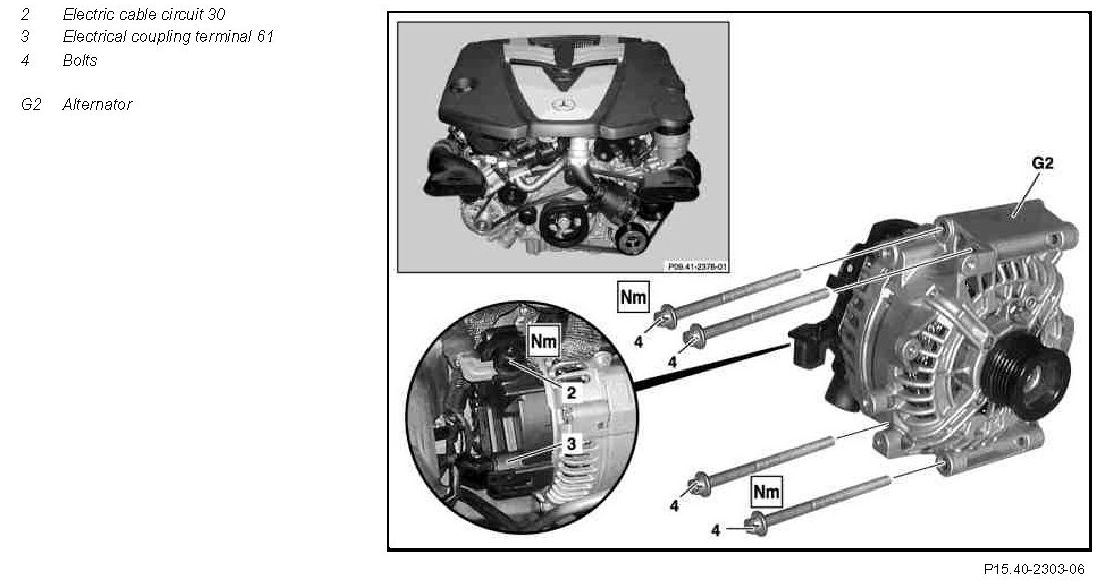

Component Identification:

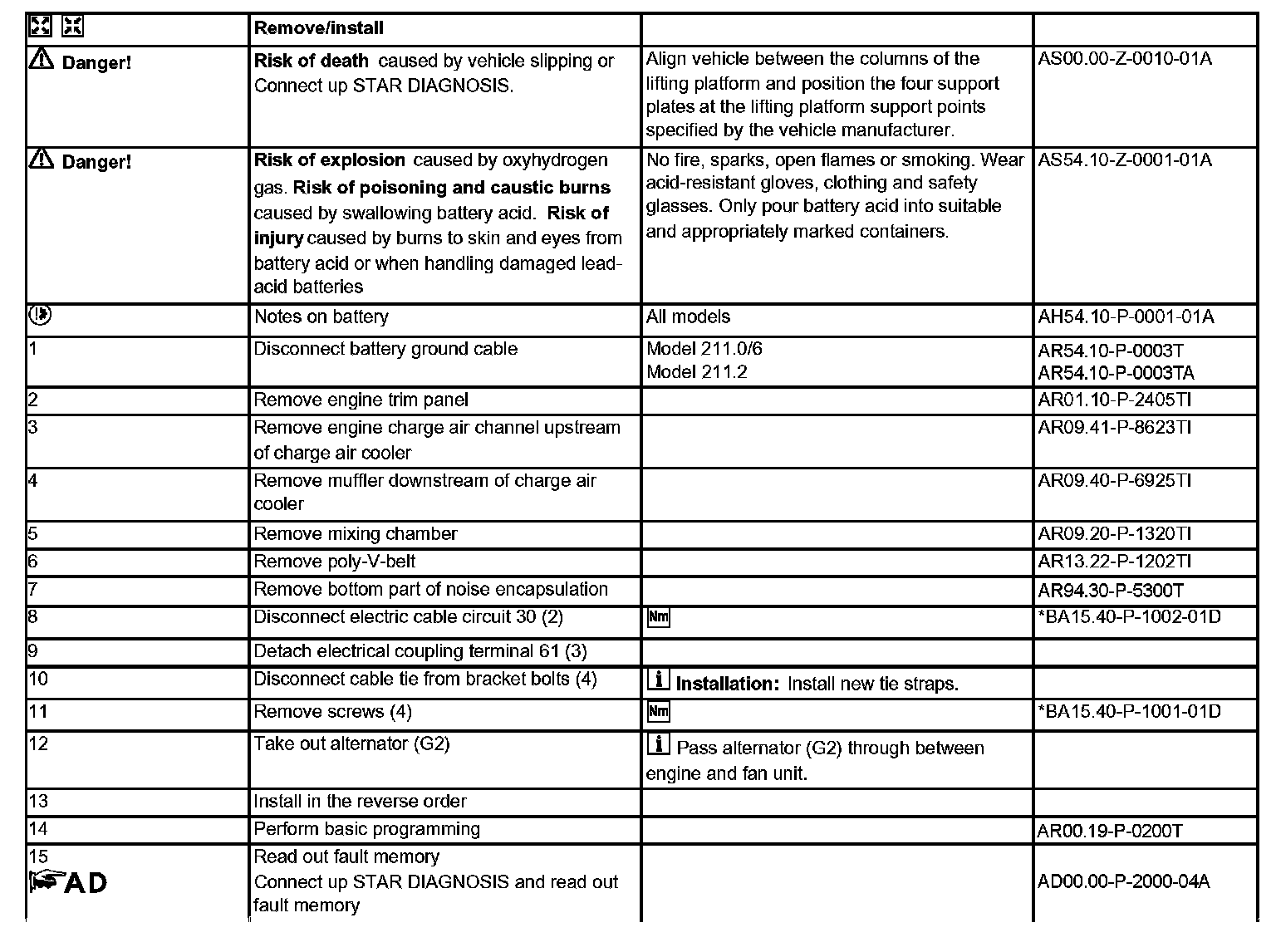

Remove/install Steps 1-15:

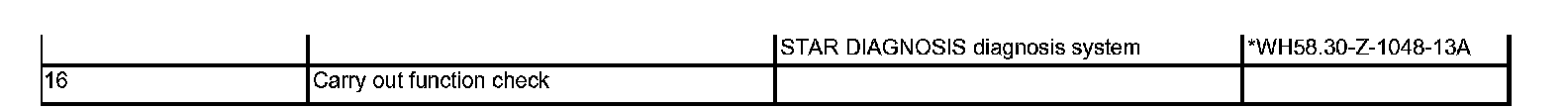

Remove/install Steps 15 (Continued)-16:

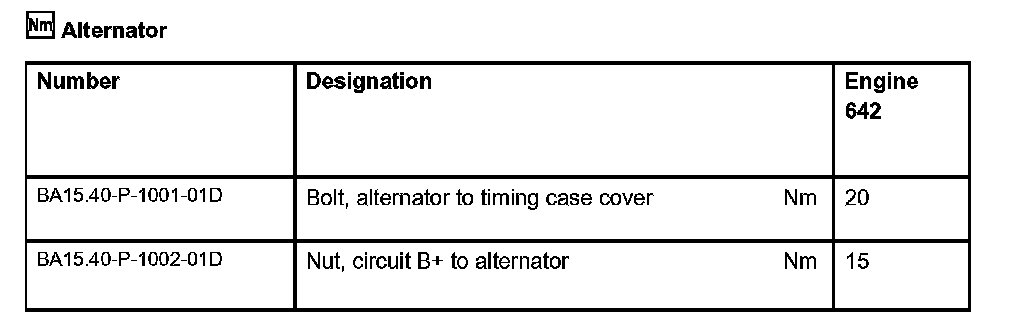

Alternator:

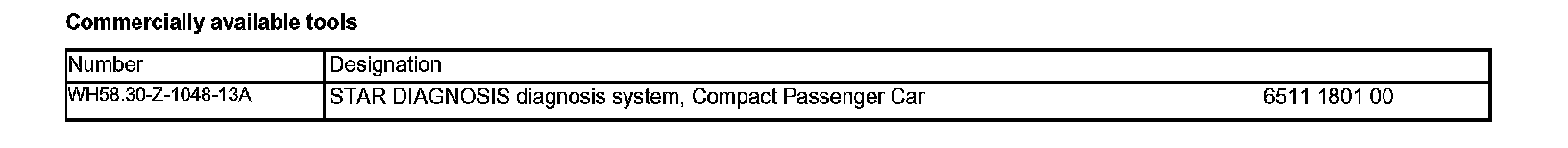

Commercially available tools:
AR15.40-P-5032TI Remove/install alternator
