Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Starter Motor

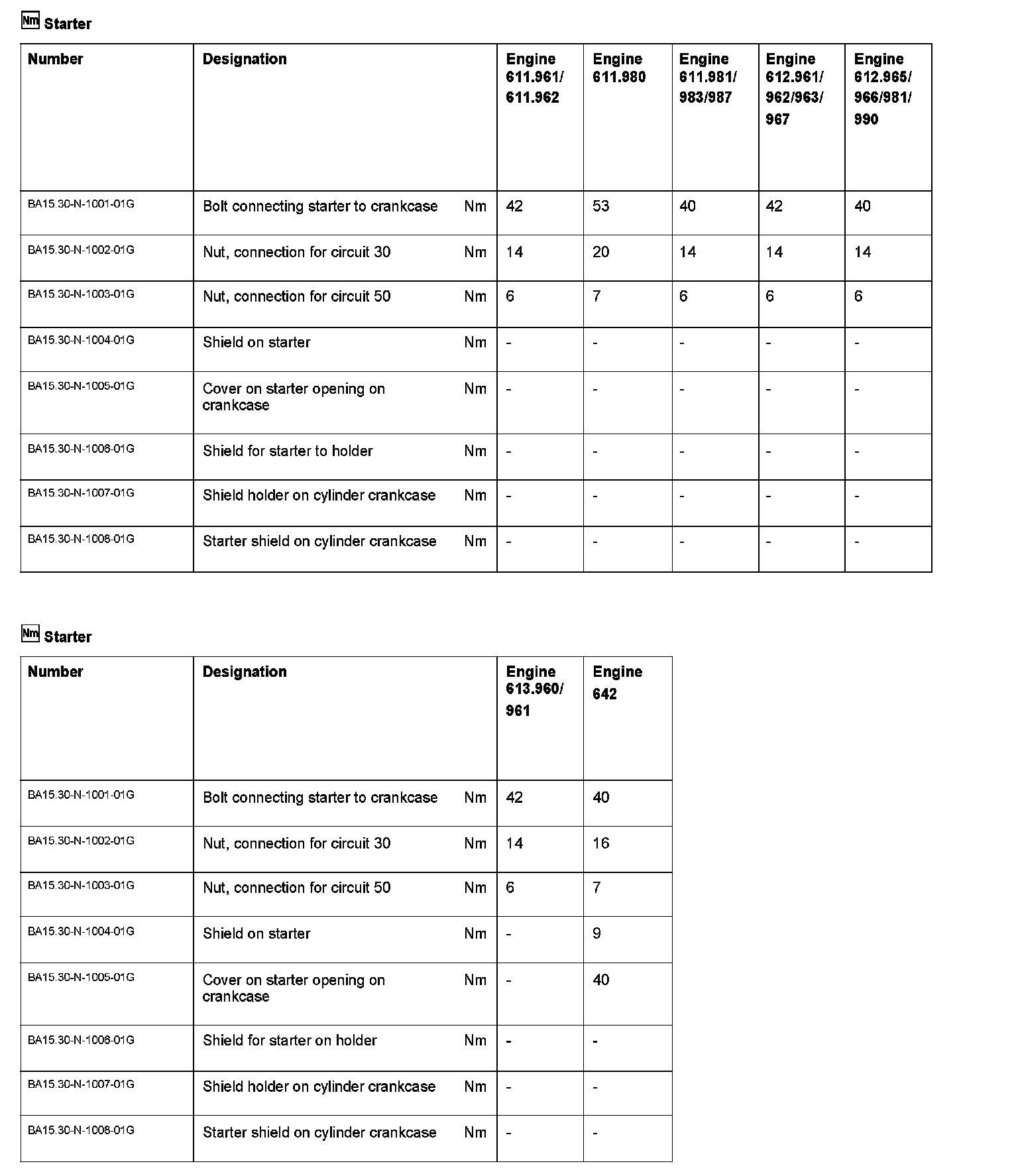

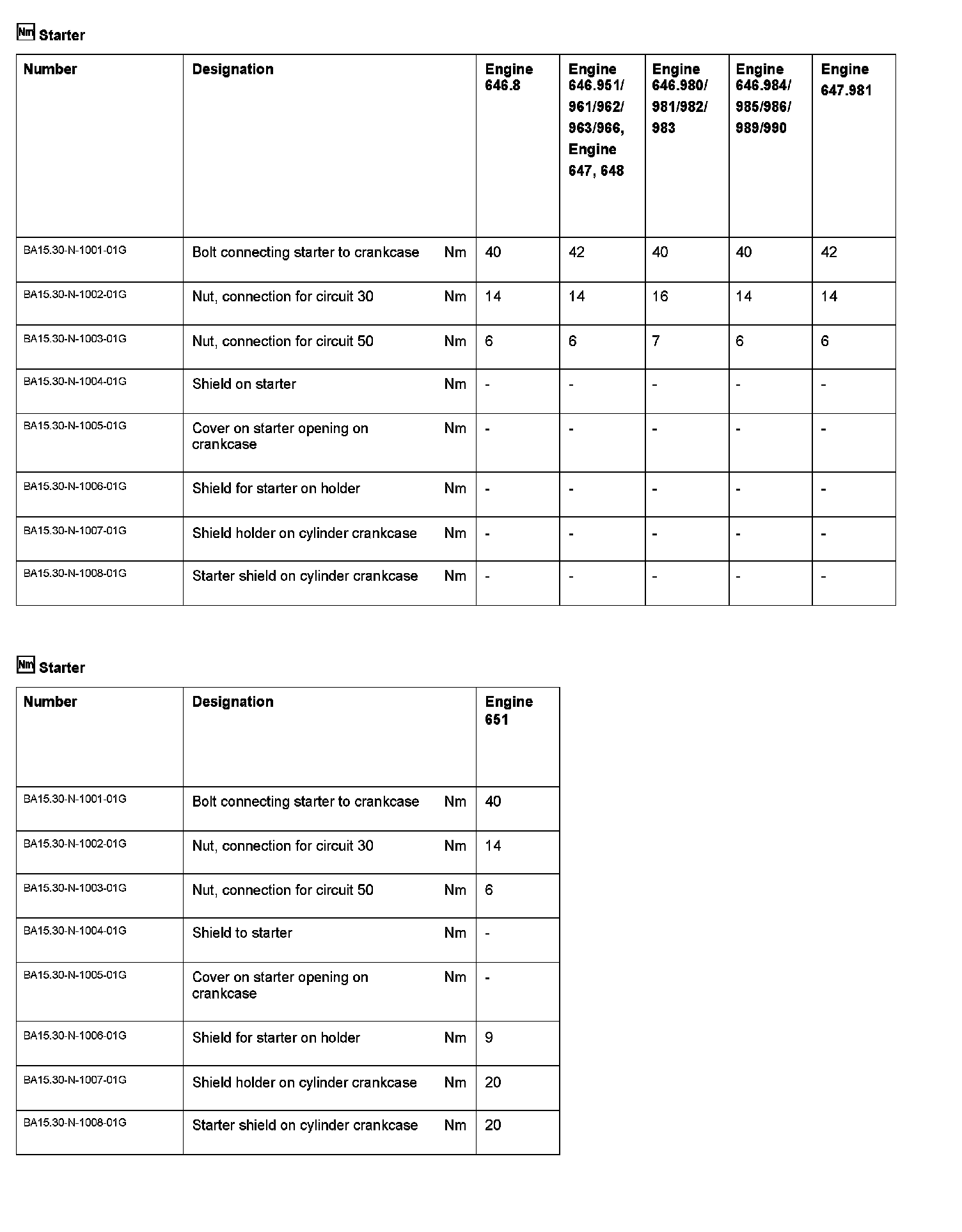

Starter Motor



BA15.30-N-1000-01G Starter
ENGINE 611, 612, 613, 642, 646, 647, 648, 651
