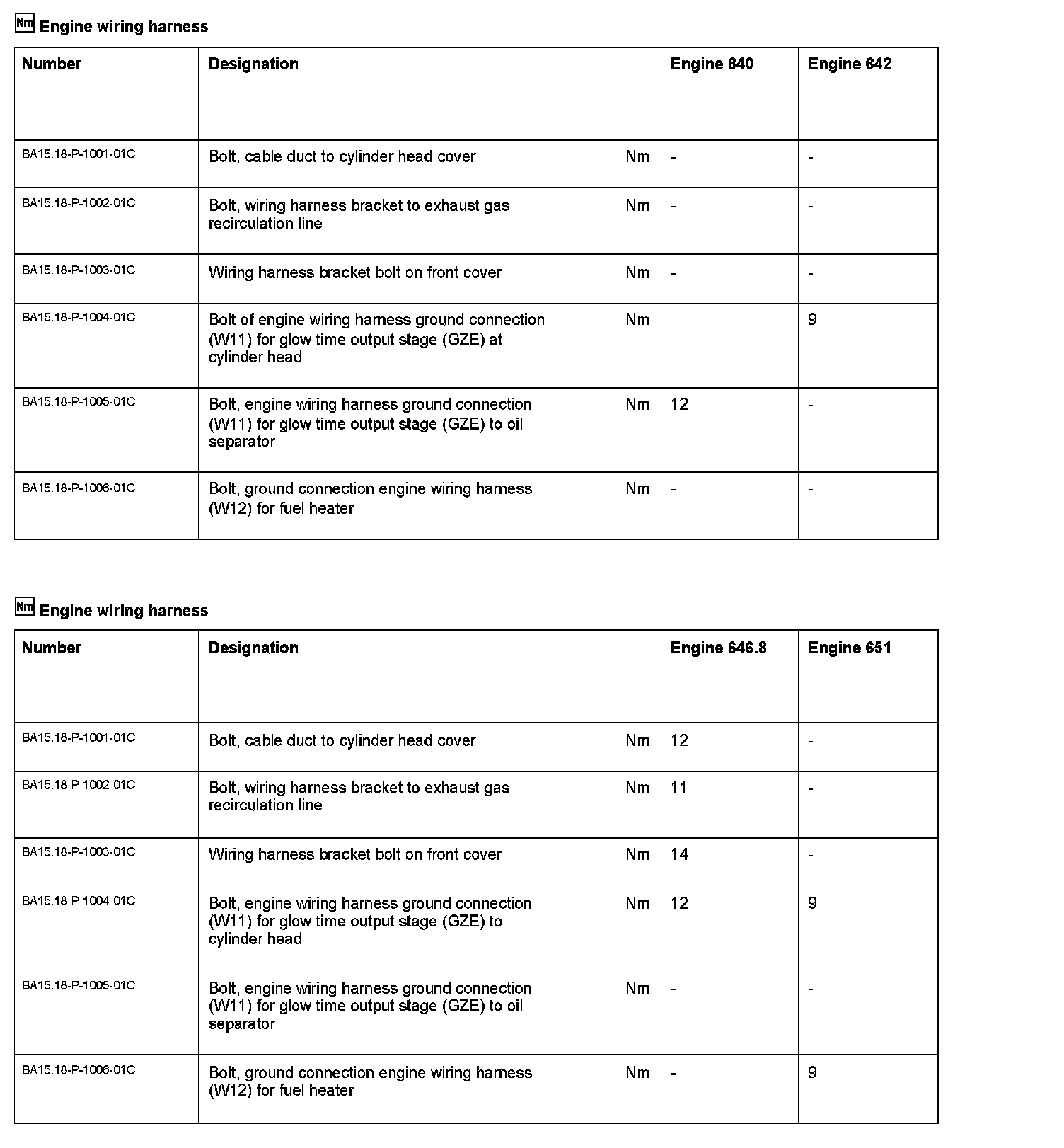

BA15.18-P-1000-01C Engine Wiring Harness



BA15.18-P-1000-01C Engine Wiring Harness
ENGINES 640, 642, 646.8, 651
