Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Cylinder Liner

Cylinder Liner

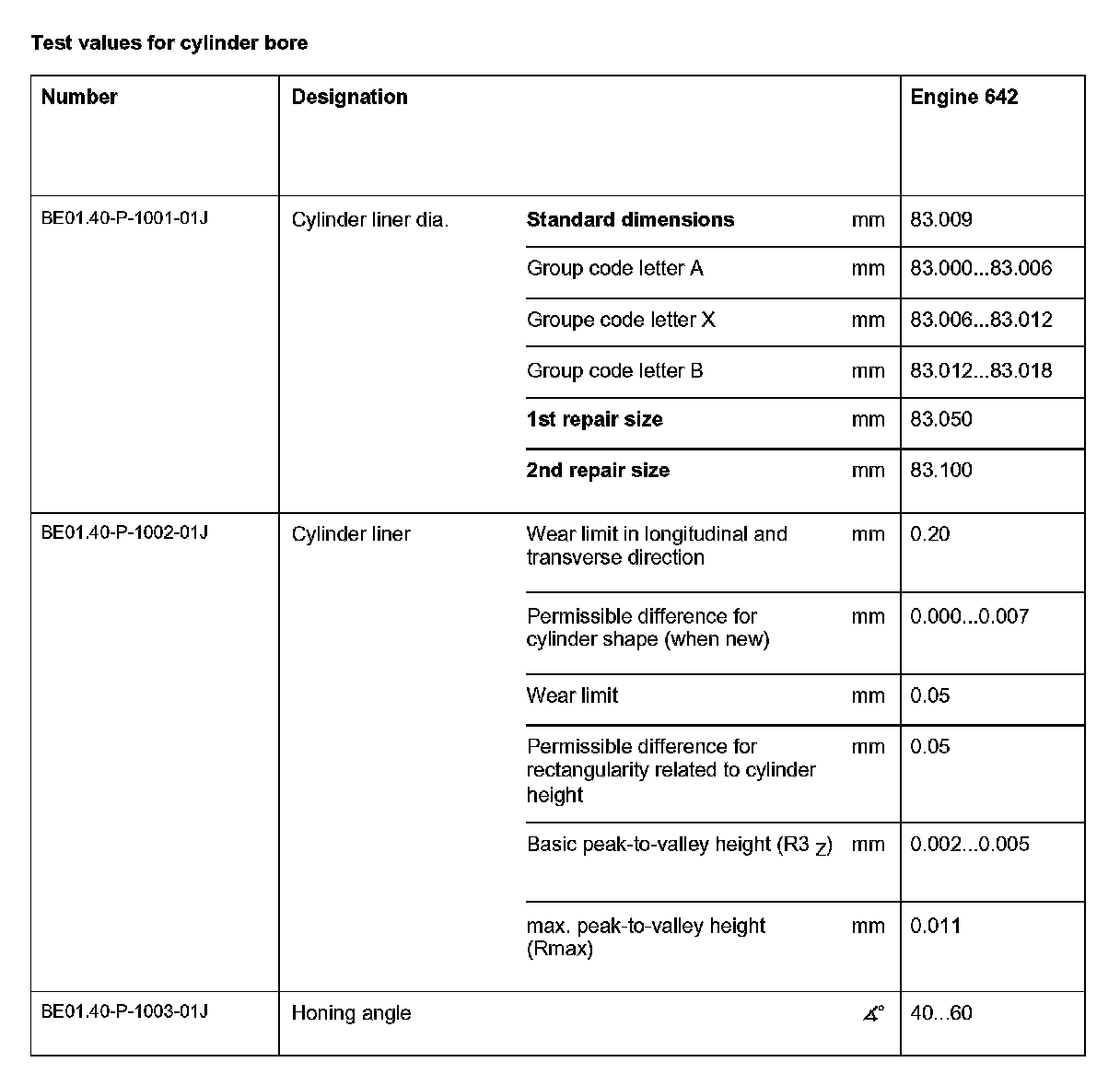

BE01.40-P-1000-01J Test values for cylinder bore

Test values for cylinder bore:
