FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2008
>>
E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Body and Frame
>>
Trunk / Liftgate
Trunk / Liftgate
BA88.50-P-1000-01A Trunk Lid

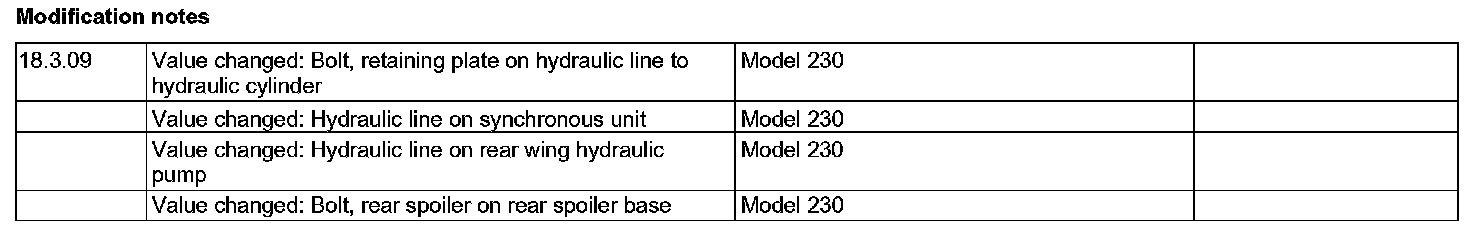

Modification Notes:

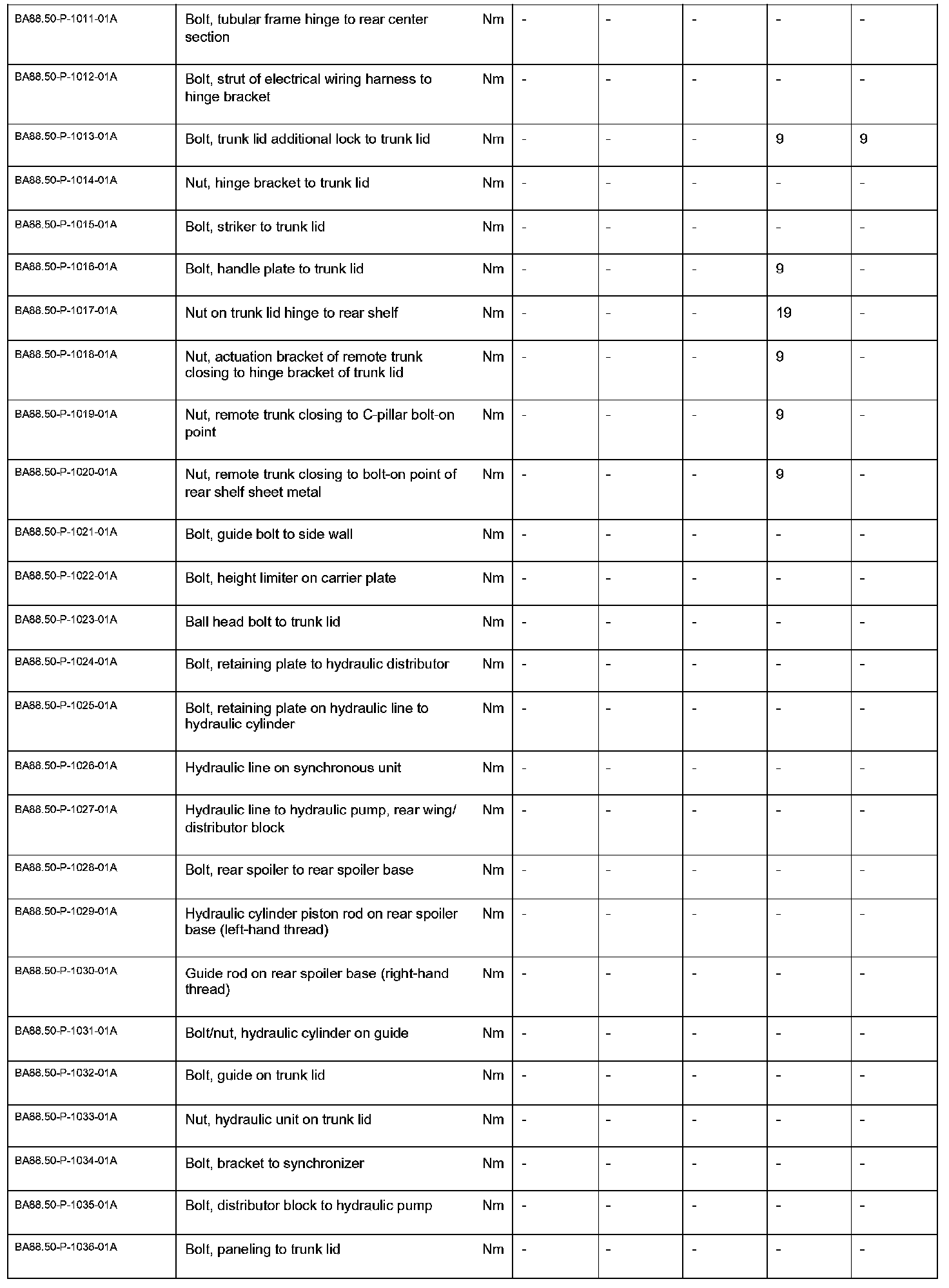

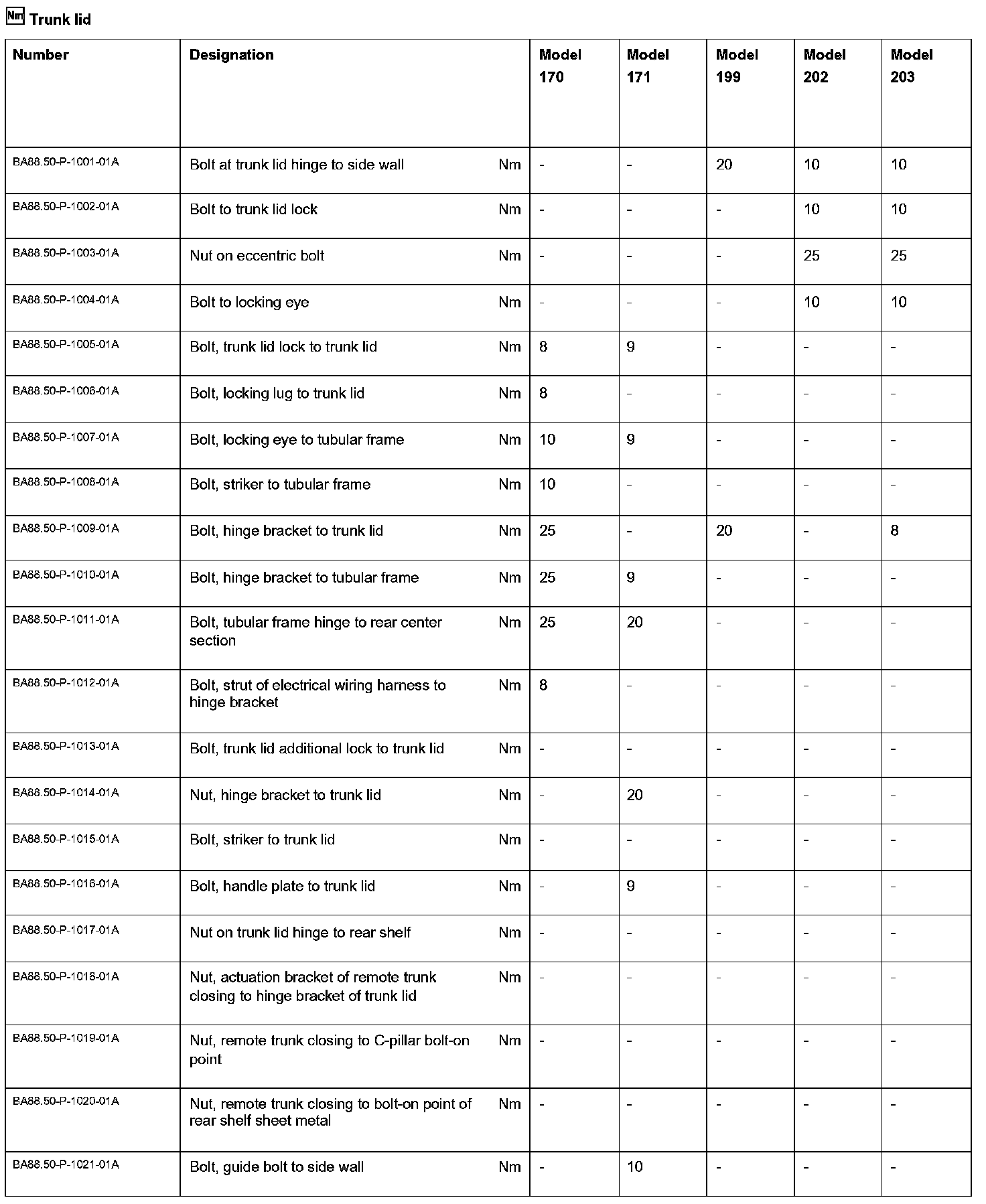

Trunk Lid (Part 1):

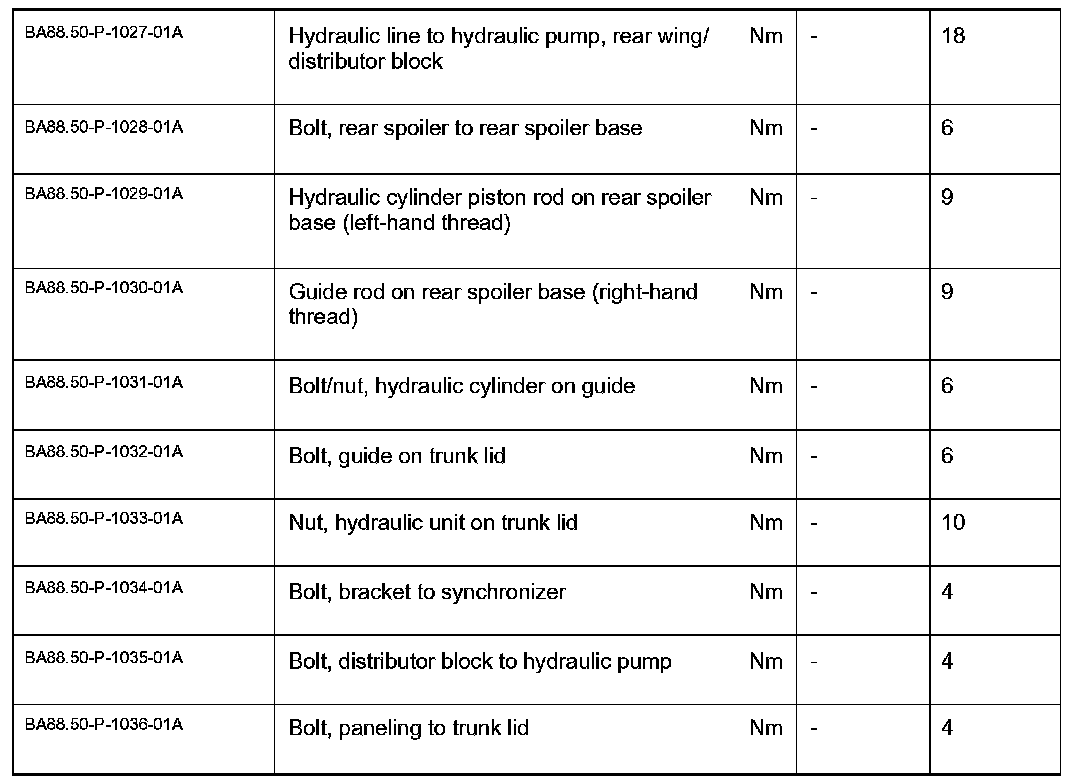

Trunk Lid (Part 2):
Trunk Lid (Part 1):
Trunk Lid (Part 2):
Trunk Lid (Part 1):
Trunk Lid (Part 2):
