Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt >> Service and Repair >> AR91.40-P-0630T Remove/Install Seat Belt With Emergency Tensioning Retractor

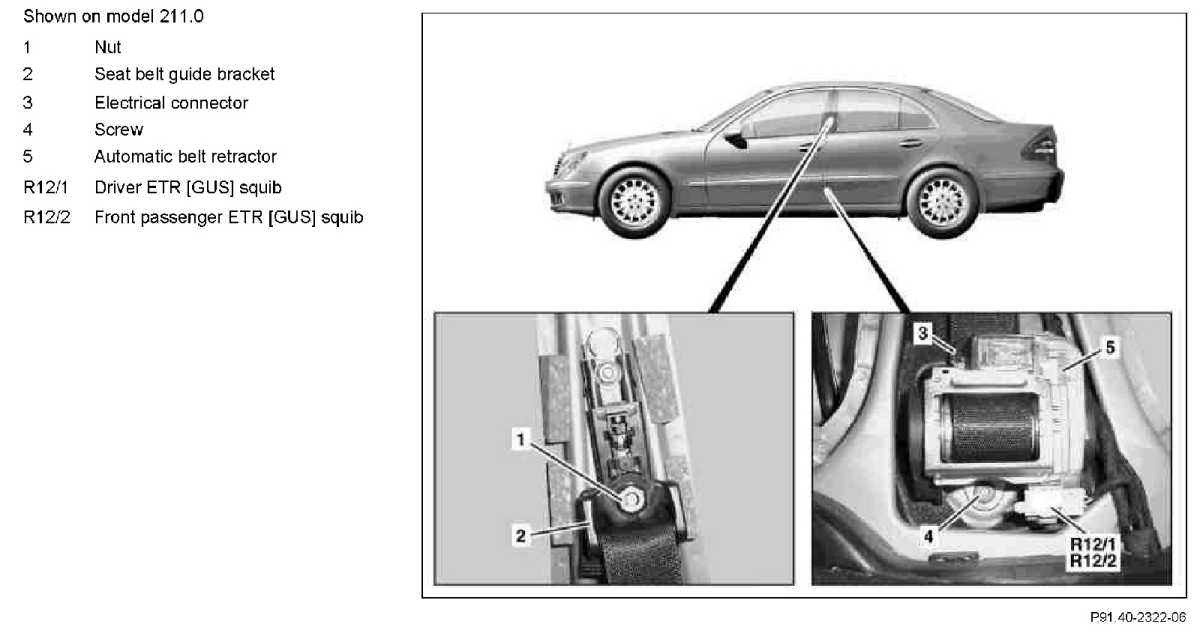

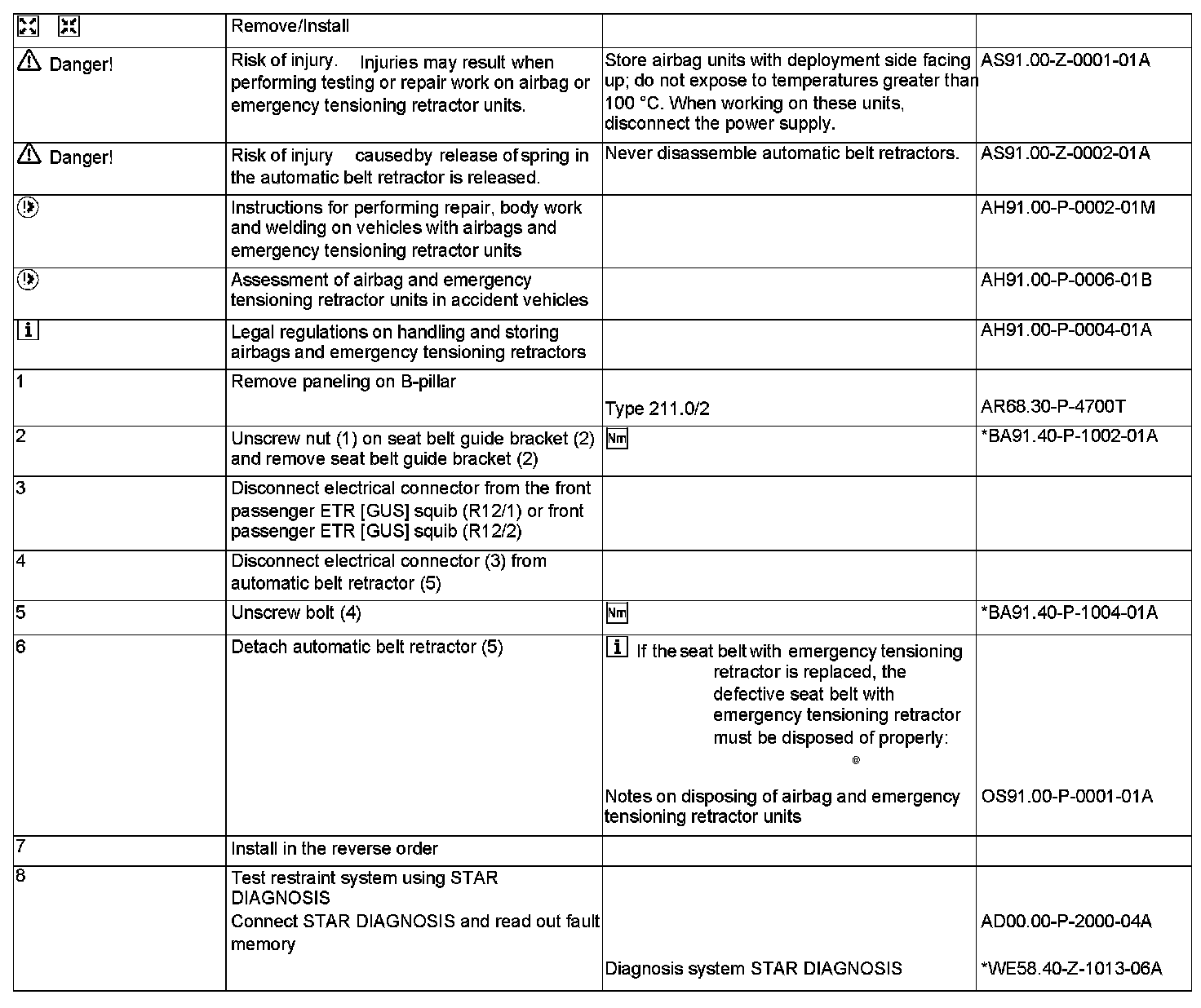

AR91.40-P-0630T Remove/Install Seat Belt With Emergency Tensioning Retractor



AR91.40-P-0630T Remove/Install Seat Belt With Emergency Tensioning Retractor

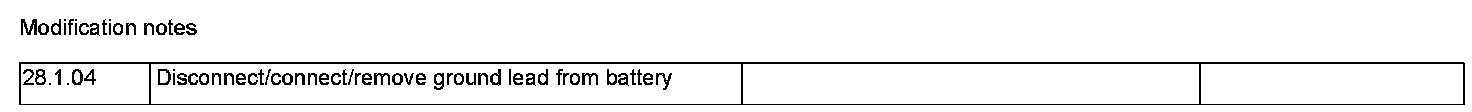

Modification Notes:

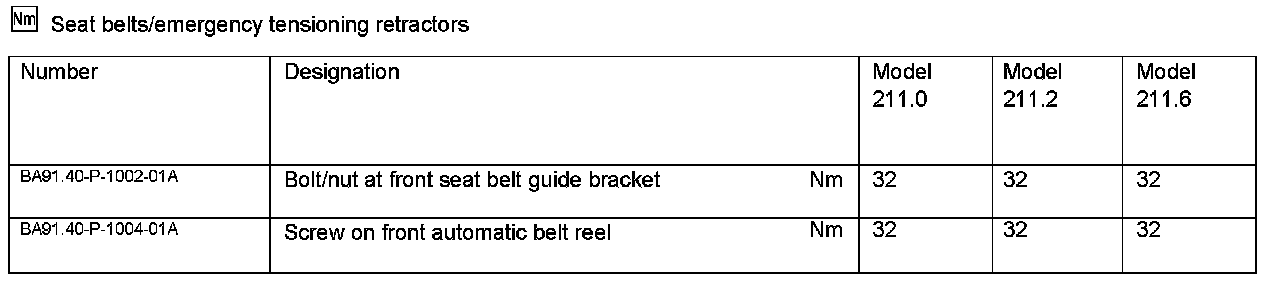

Seat Belts/Emergency Tensioning Retractors:
