Wiring Diagram Airbag Control Module With Integrated Emergency Call System PE91.60-U-2101DB

Wiring Diagram Airbag Control Module With Integrated Emergency Call System PE91.60-U-2101DB
- with CODE (290) Windowbag
- with CODE (292) Left and right front sidebag
- with CODE (293) Left and right rear sidebag

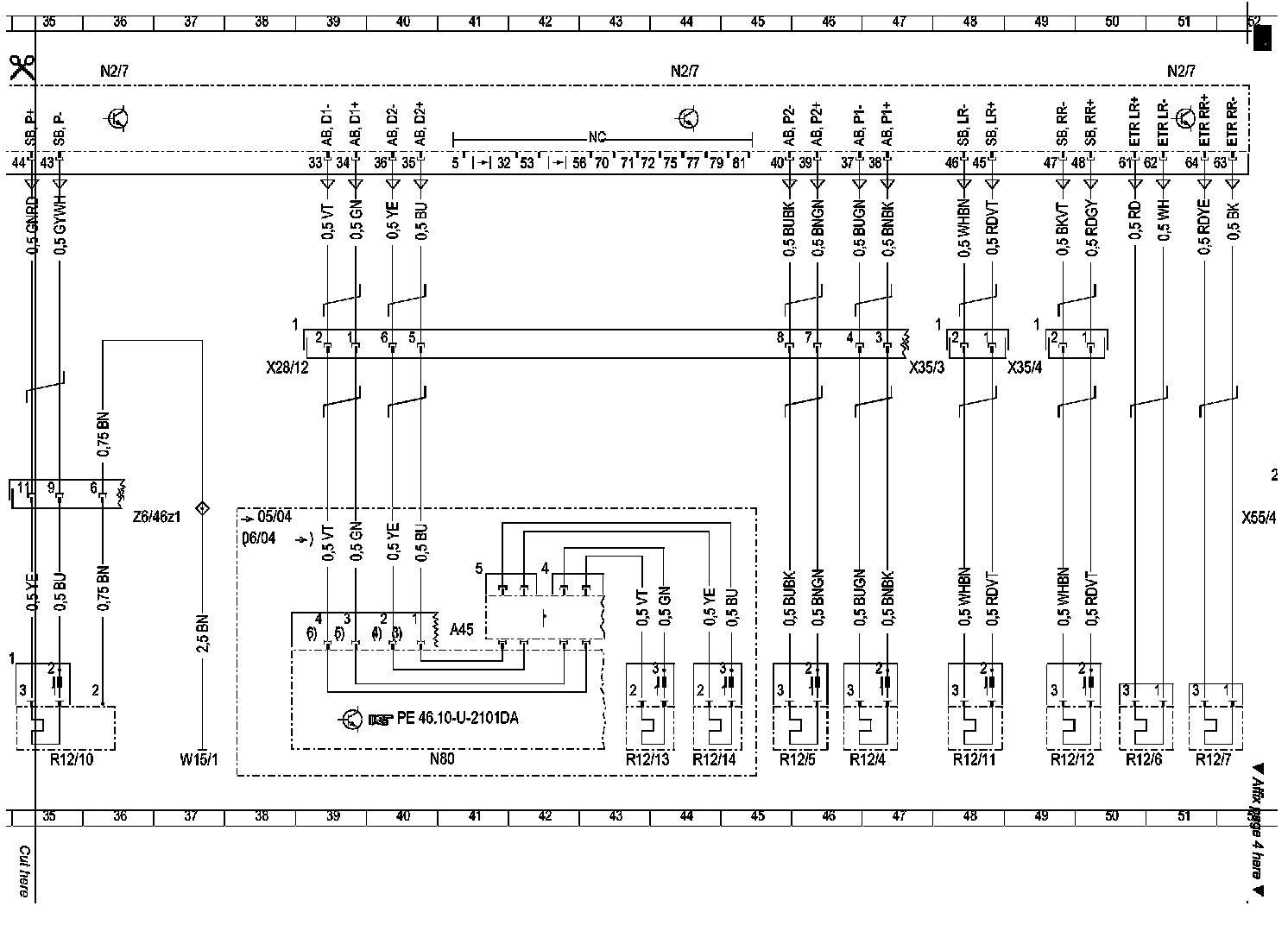

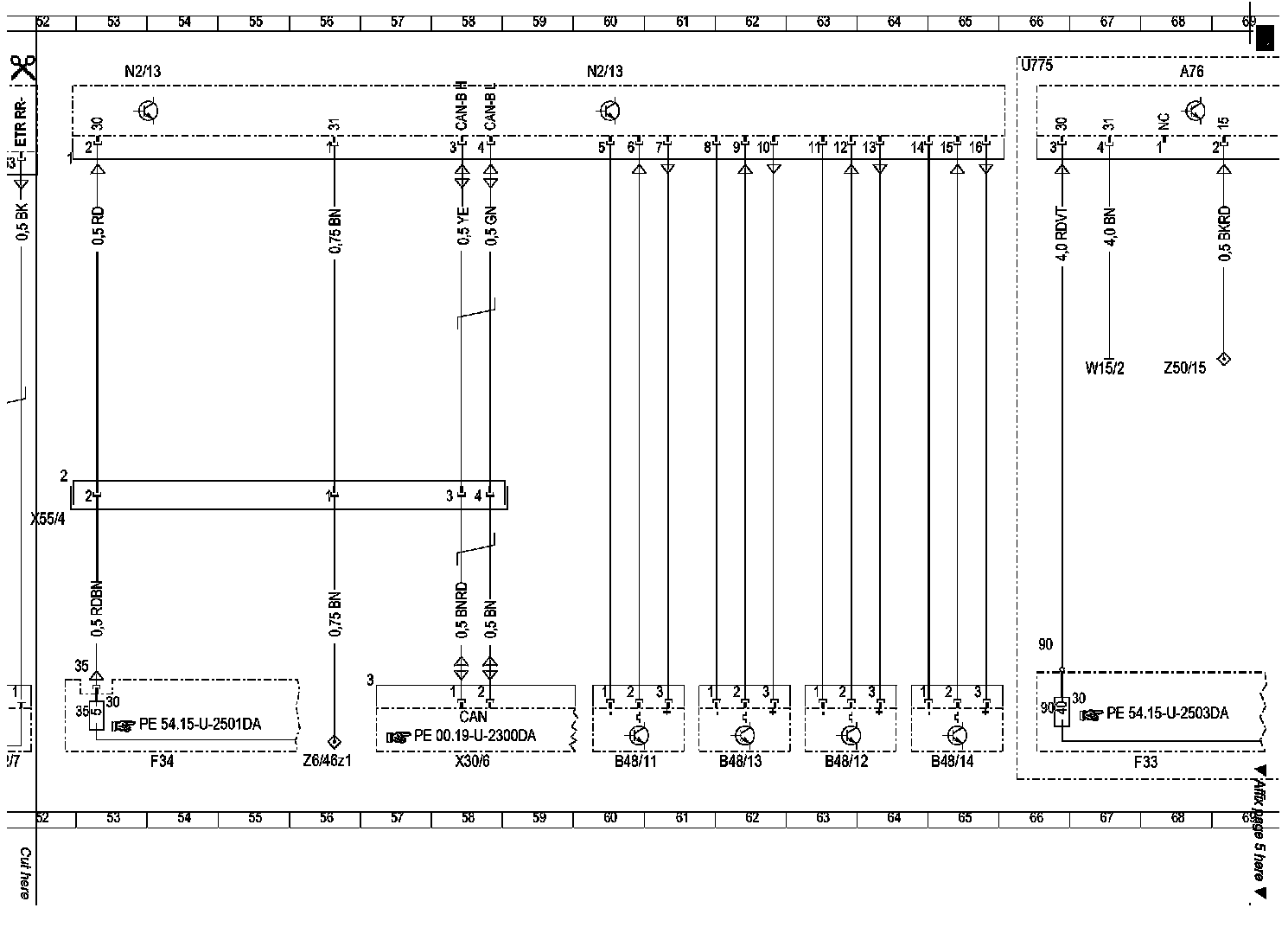

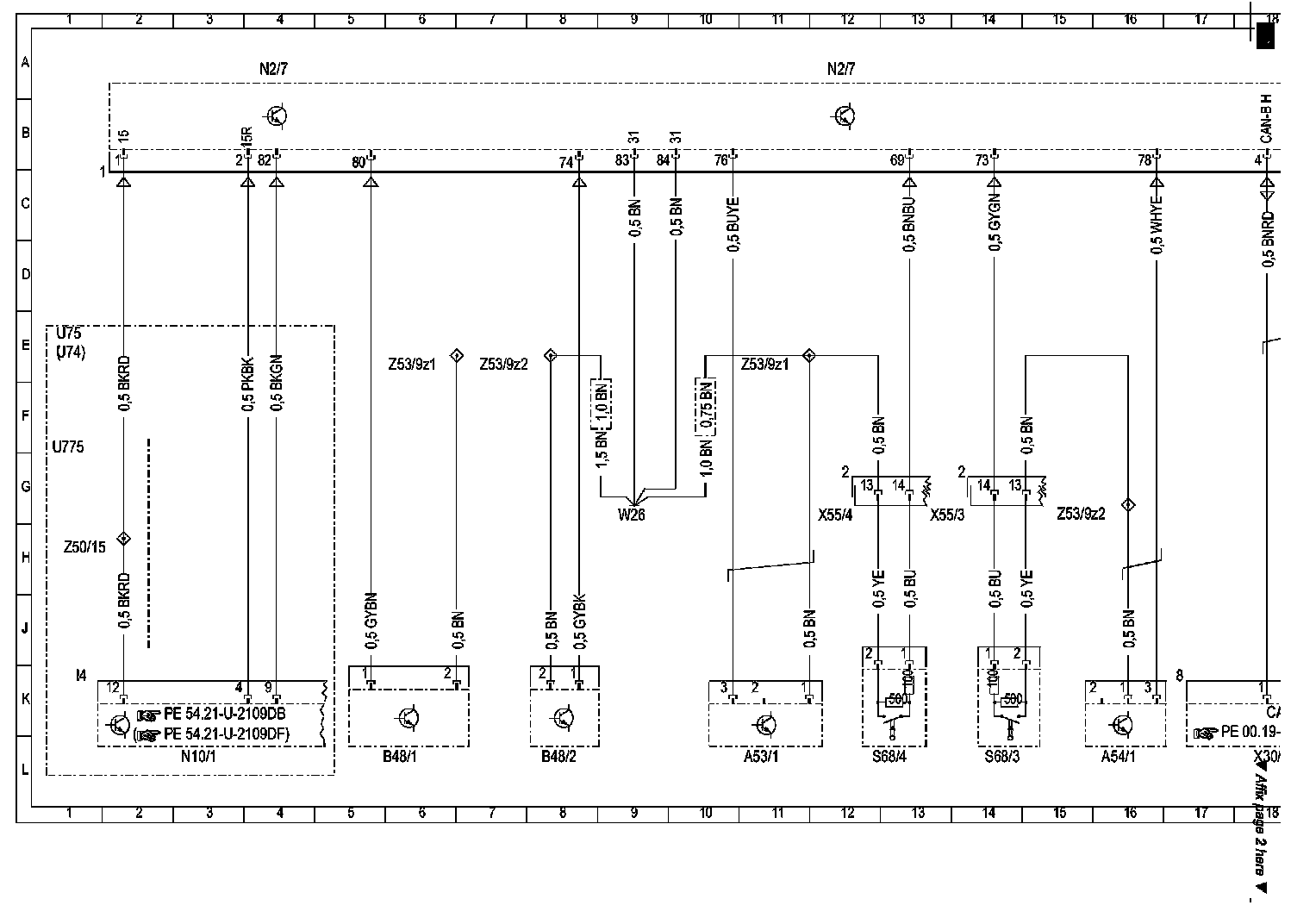

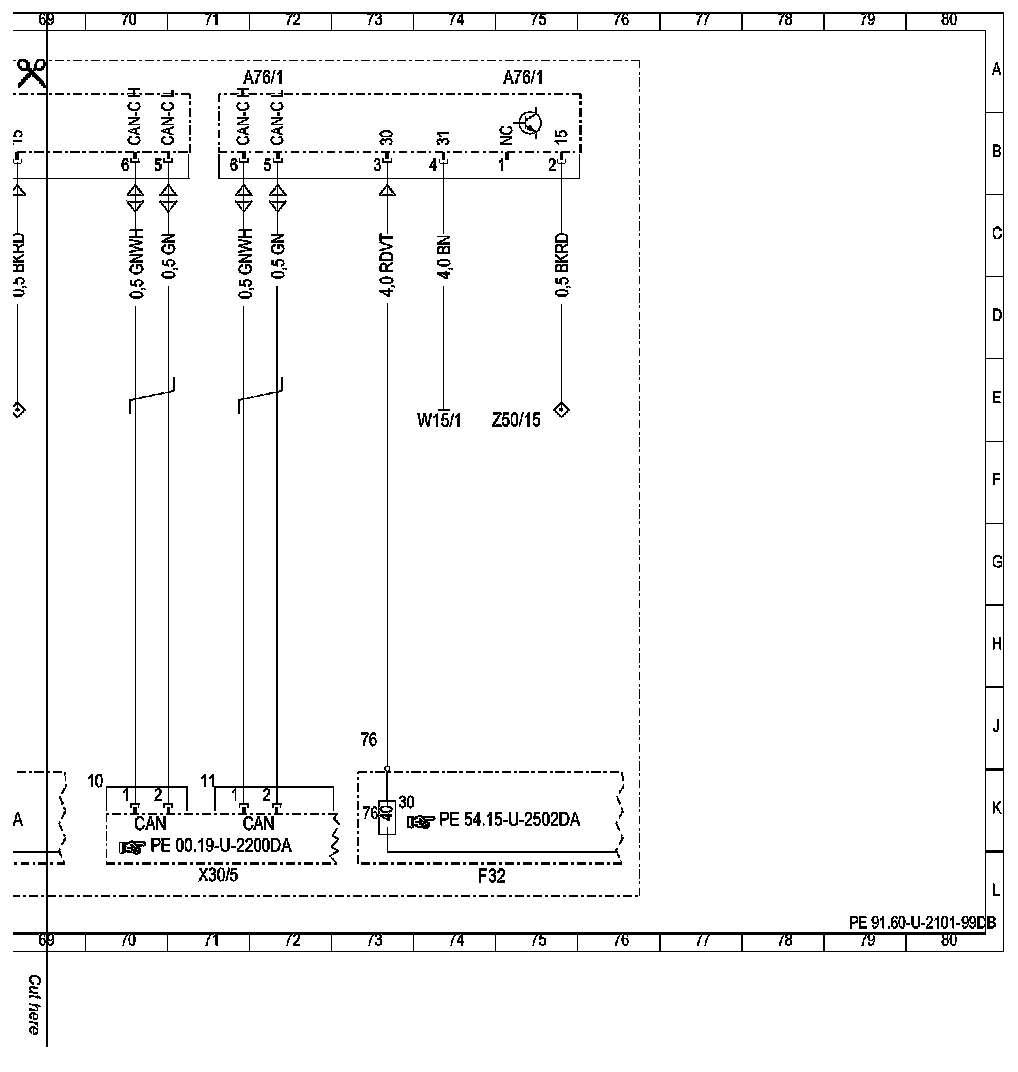

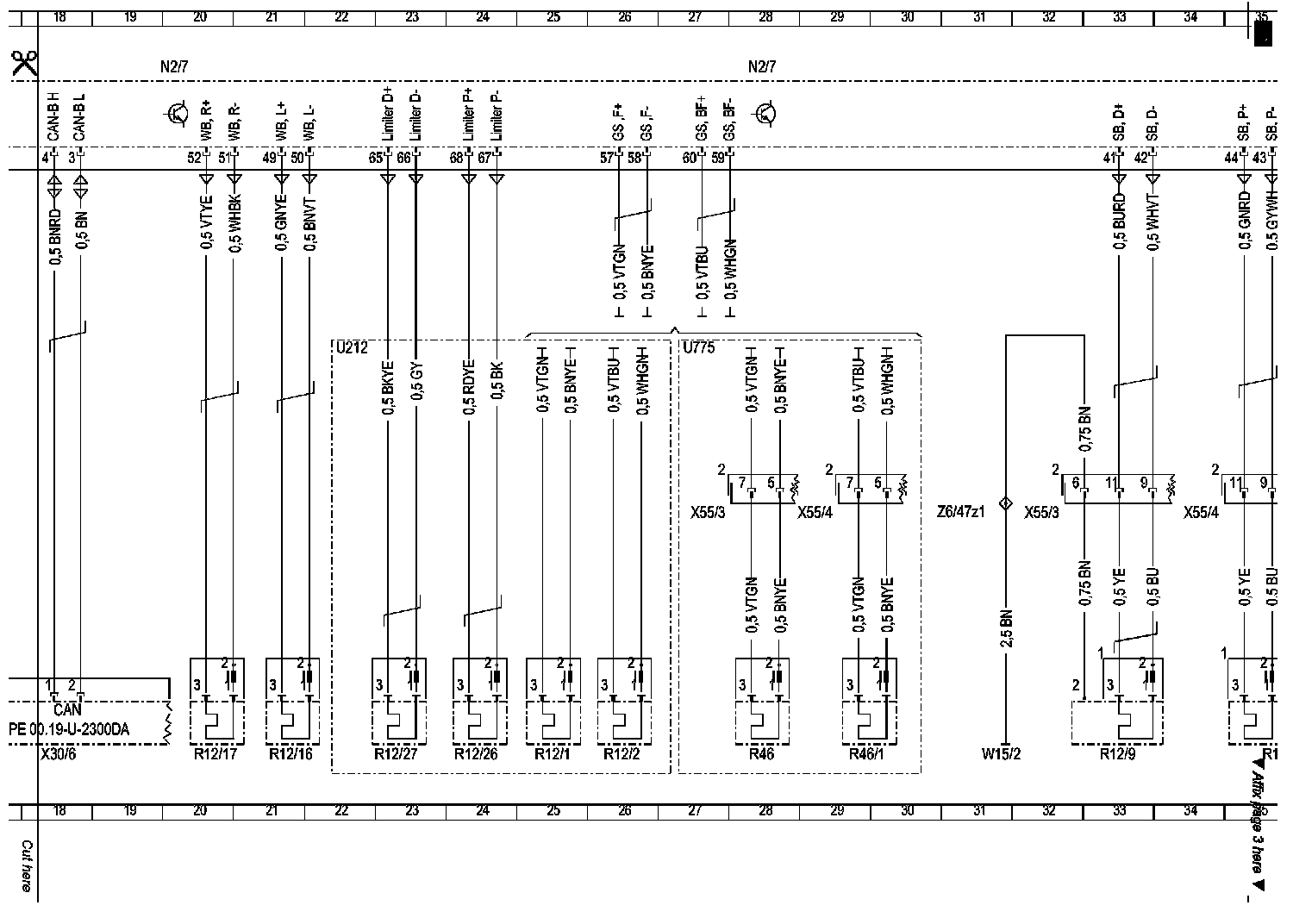

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

Wiring Diagram (Part 5):

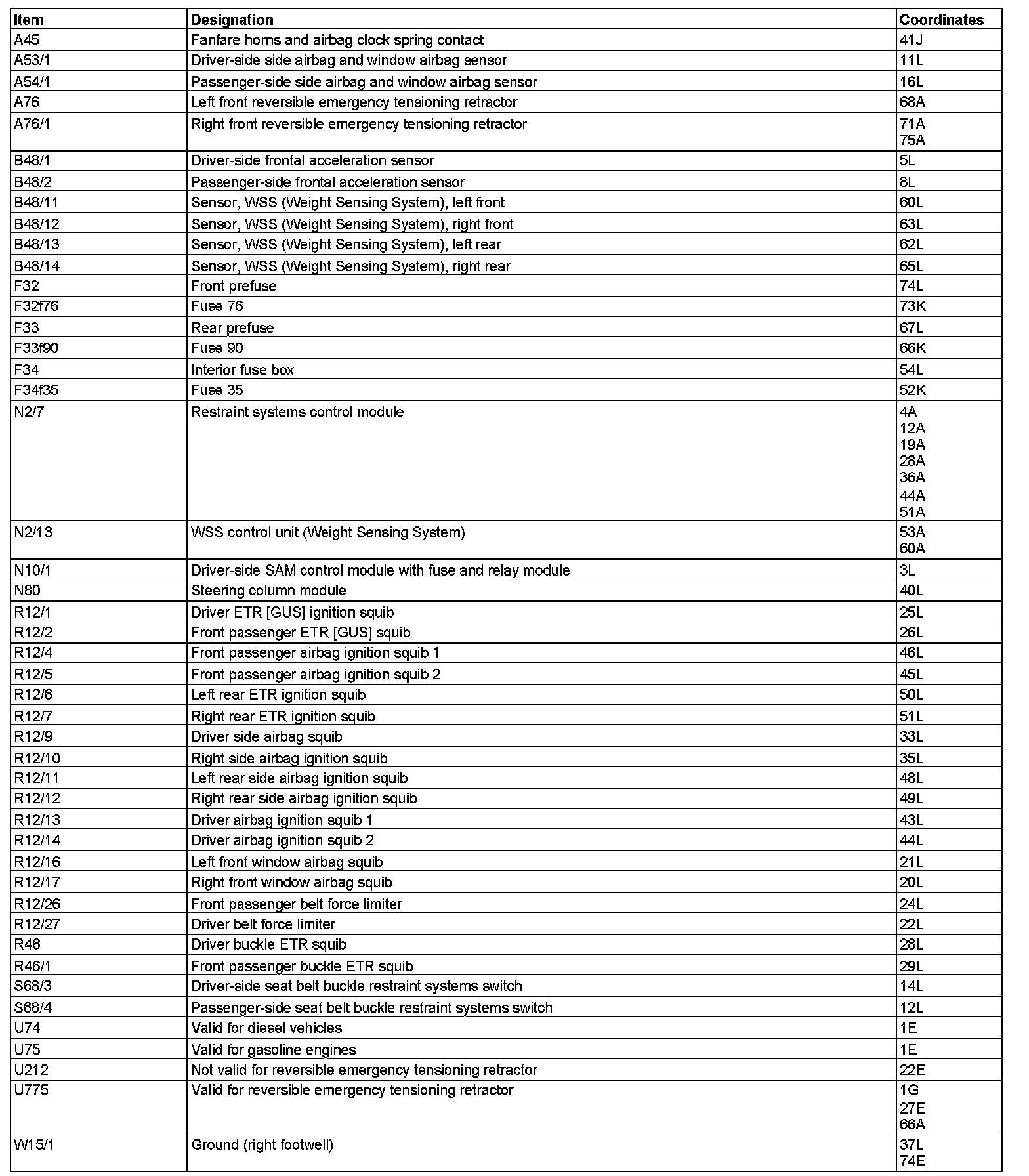

Component Description/Coordinates, A45 To W15/1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
