Clockspring Assembly / Spiral Cable: Service and Repair
AR46.10-P-0200TA Remove/install clock spring contact

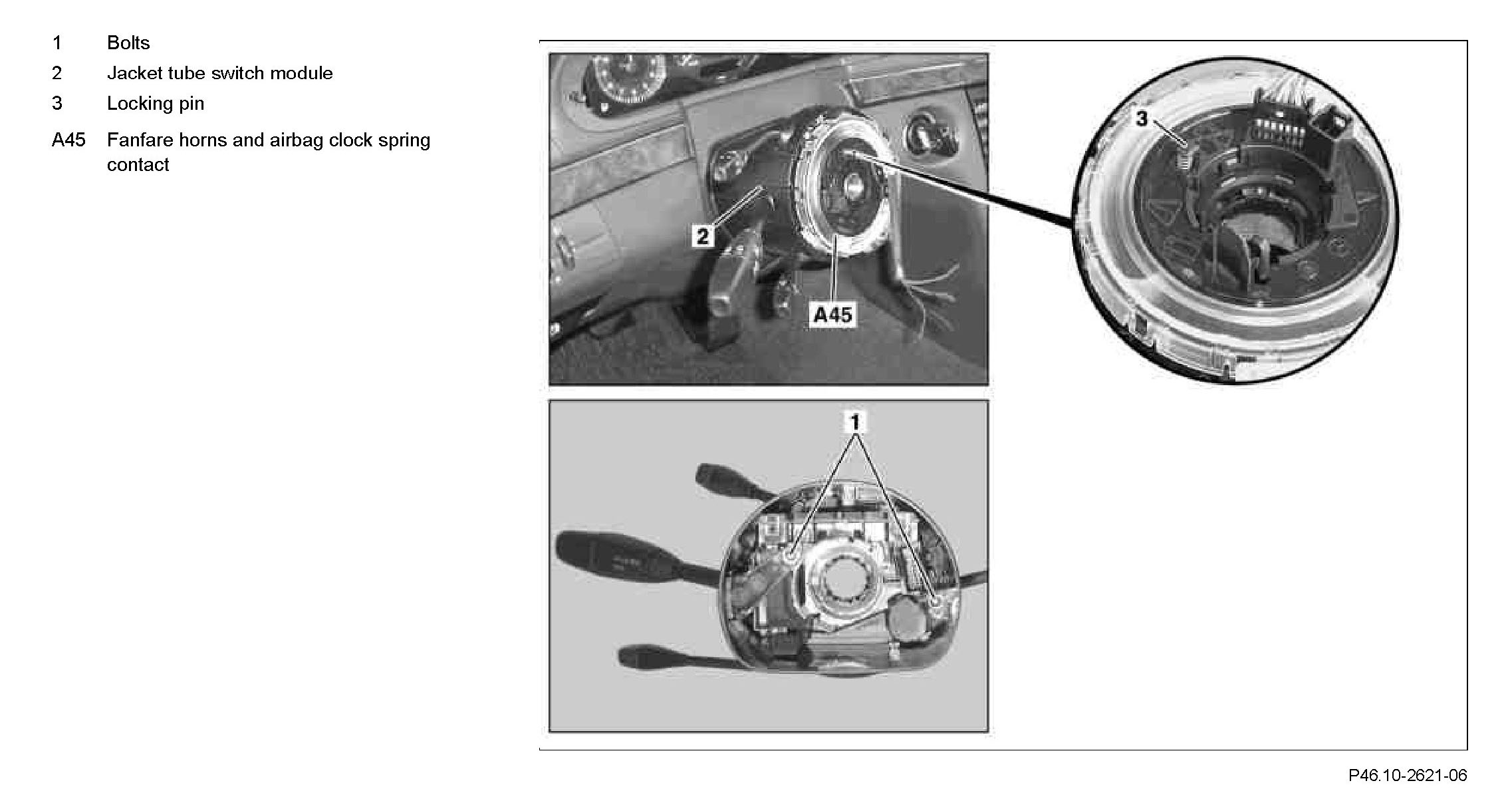

Component Identification:
Component Identification:

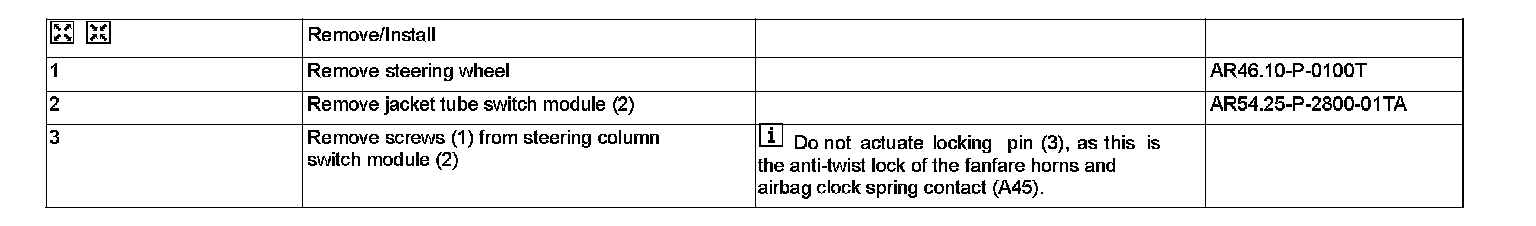

Steps 1 - 3:
Steps 4 - 8:
