Home >> Mercedes Benz >> 2008 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Emergency Contact Module >> Description and Operation >> GF82.95-P-0001-01T TELE AID, Location Of Components

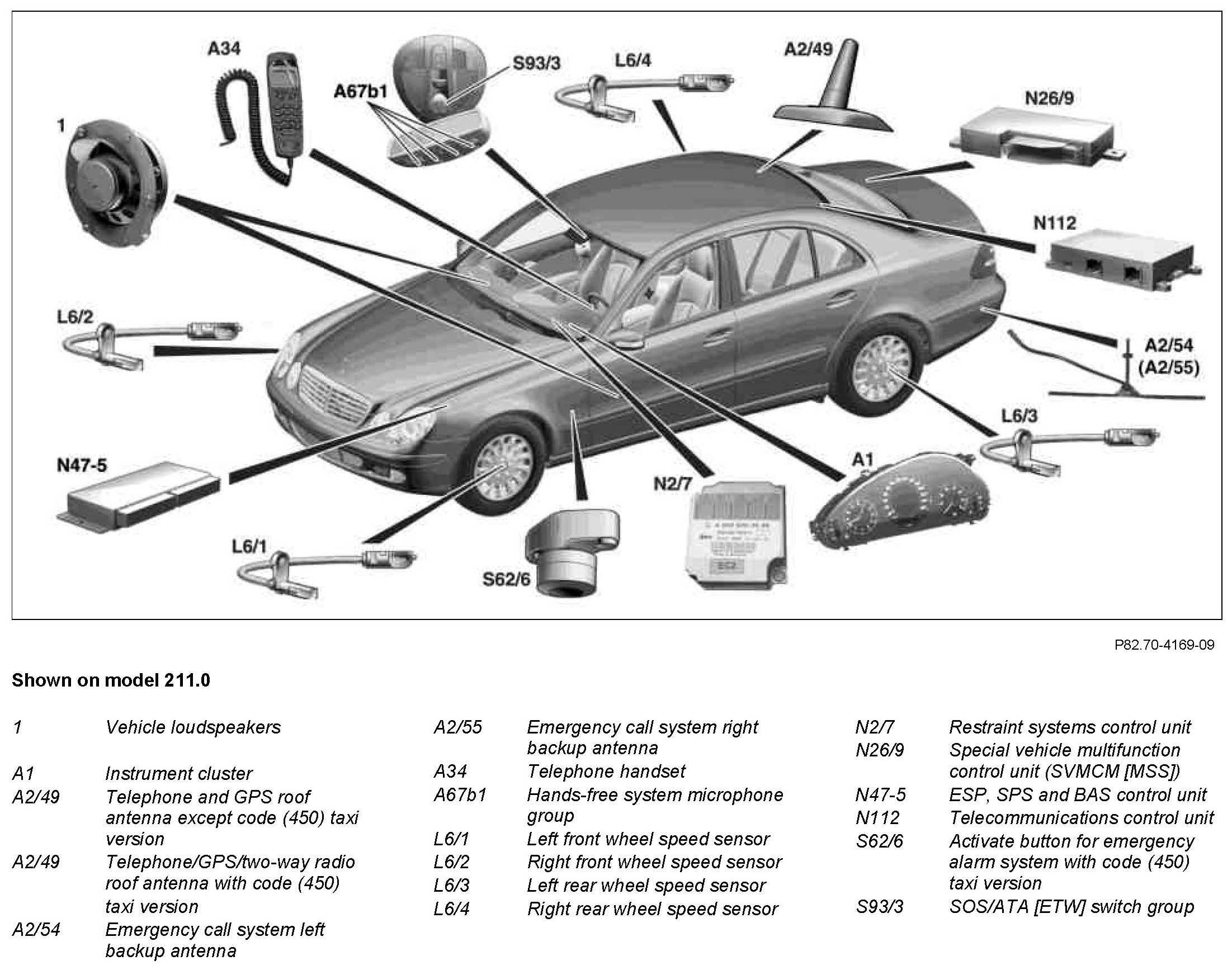

GF82.95-P-0001-01T TELE AID, Location Of Components



GF82.95-P-0001-01T TELE AID, Location Of Components
- with CODE (383) With telephone "Standard" in console on right side of dome with integrated TELEAID emergency call system, hands-free system and antenna



Component Identification:
