Engine Controls - Cold Start High Altitude Stalling

Date: July 28, 2008

Order No.: P-B-07.16/82

Supersedes:

Group: 07

SUBJECT:
Model 211.022, VIN Range B151922 to B224910

Poor Engine Running Characteristics at Low Temperatures and High Altitude Areas

If you receive customer reports in the above model vehicle of the engine stalling when engaging gears while stationary or a delay in acceleration after a cold start, update the variant coding of the CDI5 engine control to resolve. The condition occurs mainly when outside temperatures are below 32°F (0°C) in high altitude areas (altitudes over 8,202 feet above mean sea level). Flash the CDI5 engine control unit using (DAS 05/08 or higher) Star Diagnosis menu item "Perform SCN coding".

Note:
Copy of the SDS short test and all tests performed must accompany returned parts. If the documentation is missing or does not support the diagnosis, the warranty claim may be debited.

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on July 28, 2008. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.

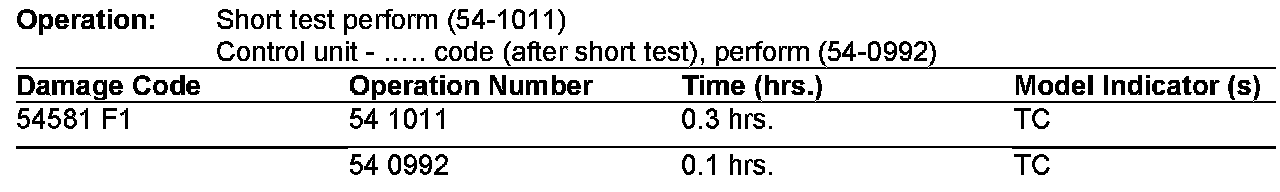

In Case of Warranty, use the table.
