E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Sensors and Switches - Powertrain Management
>>
Sensors and Switches - Computers and Control Systems
>>
Air Temperature Sensor ( Ambient / Intake )
>>
Service and Repair
Air Temperature Sensor ( Ambient / Intake ): Service and Repair
AR07.52-P-1465TI Remove/Install Intake Air Temperature Sensor
Component Identification:

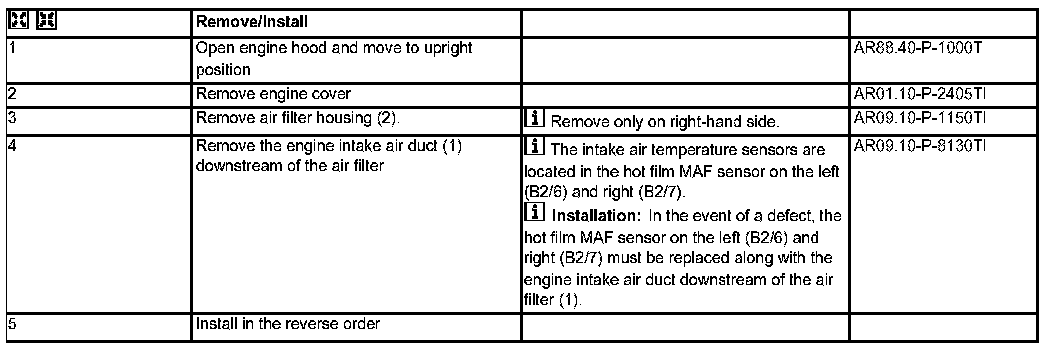

Steps 1 - 5:
