AR15.20-P-41120G Redrill Broken Glow Plugs
AR15.20-P-41120G Redrill Broken Glow Plugs
AR15.20-P-41120G Redrill broken glow plugs

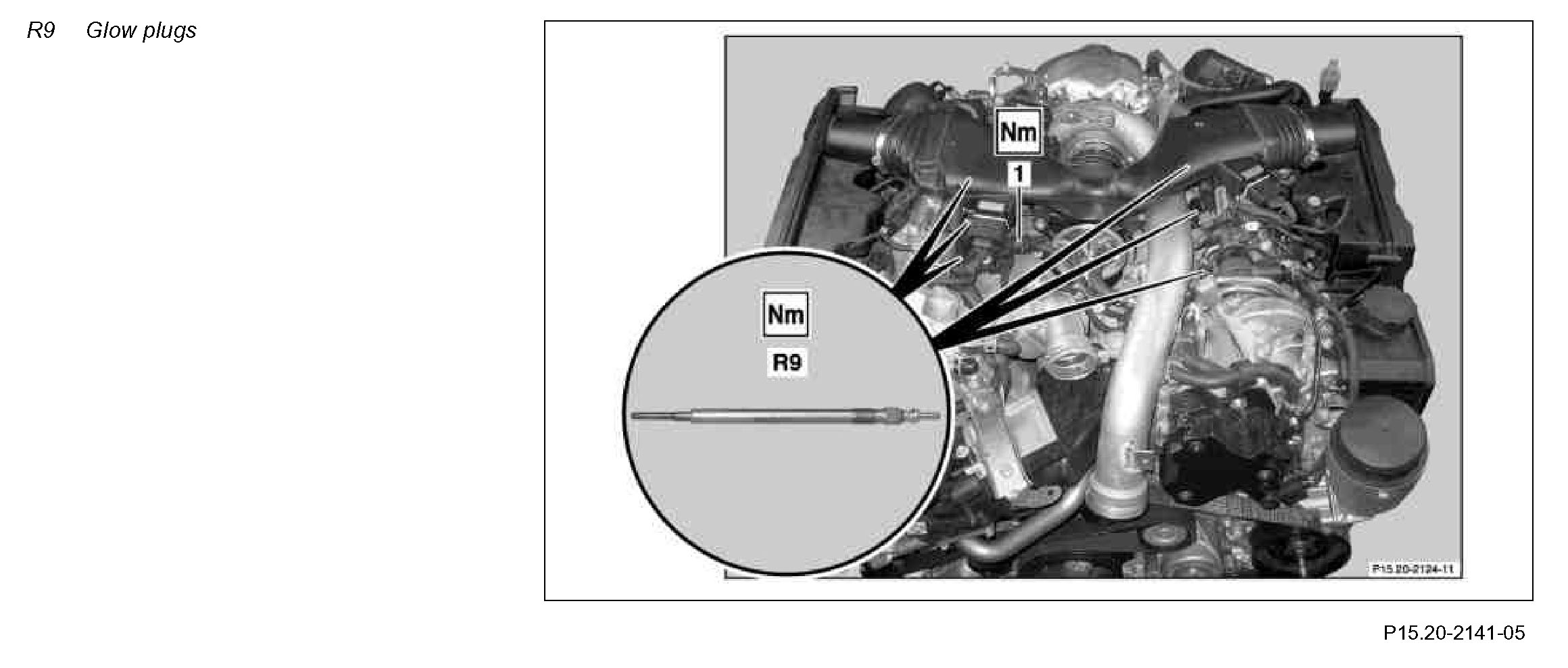

Component Identification:

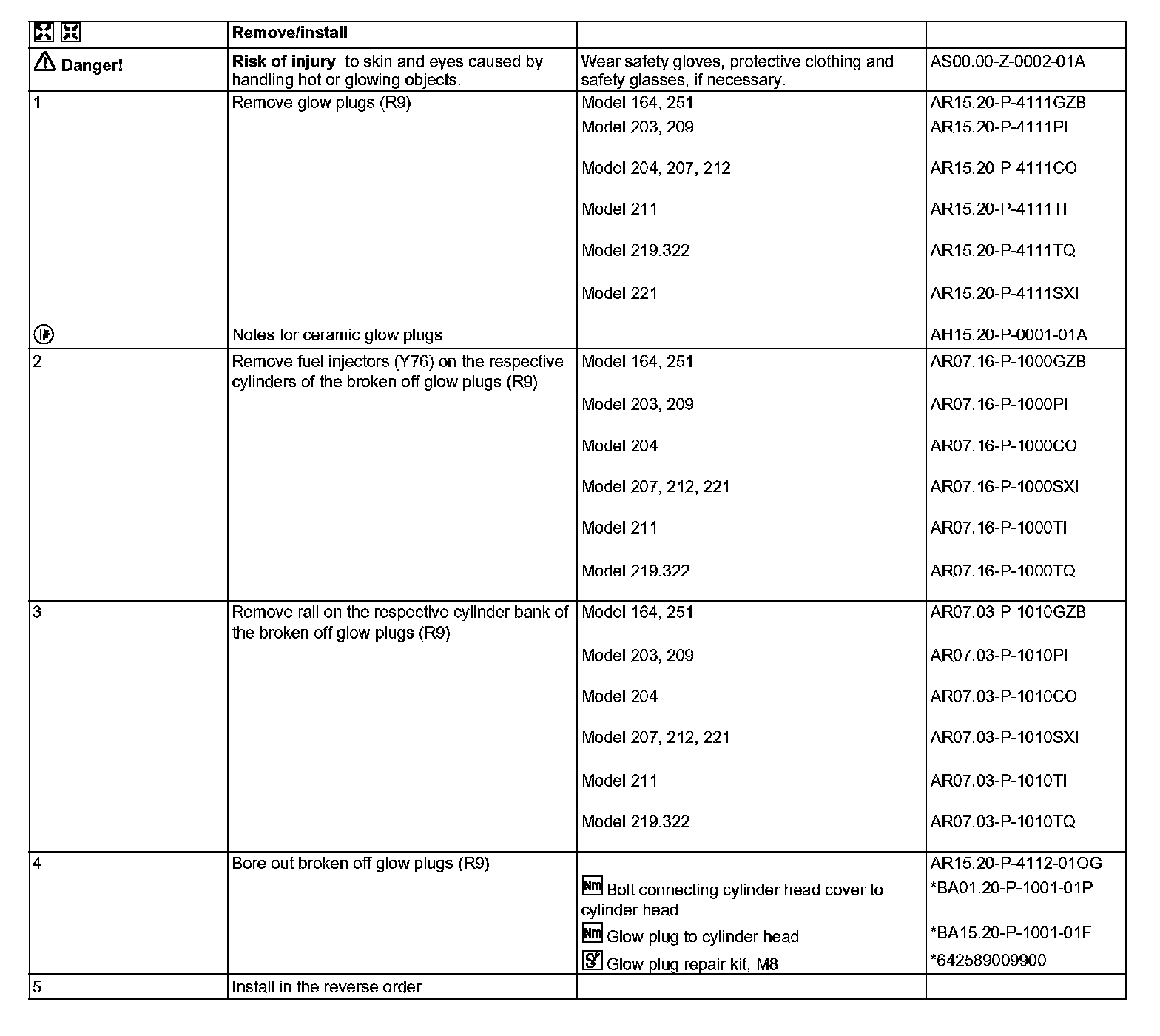

Steps 1-5:

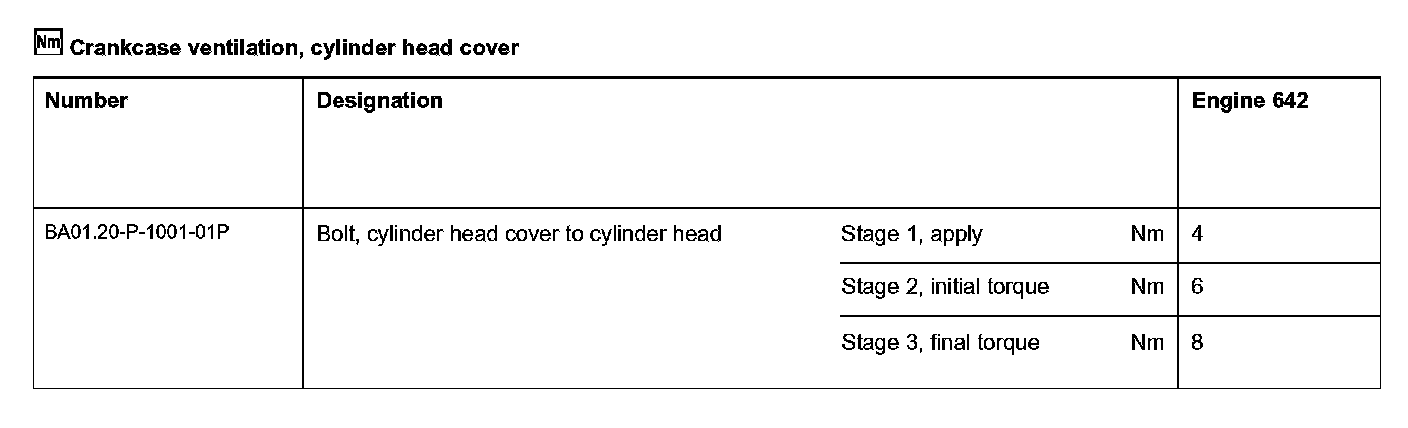

Crankcase ventilation, cylinder head cover:

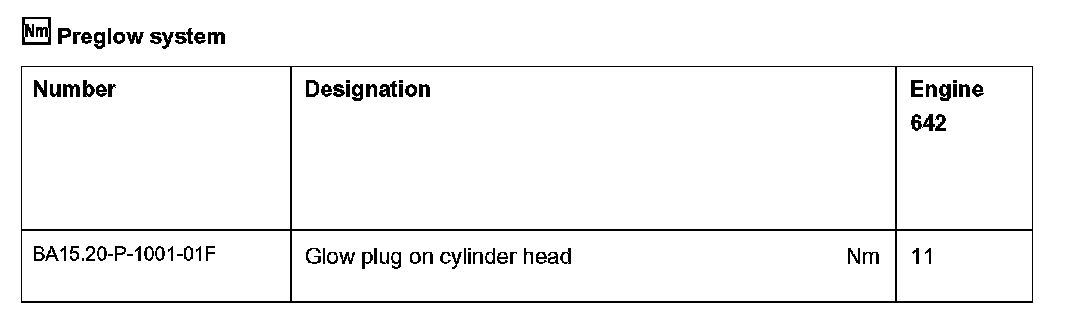

Preglow system:

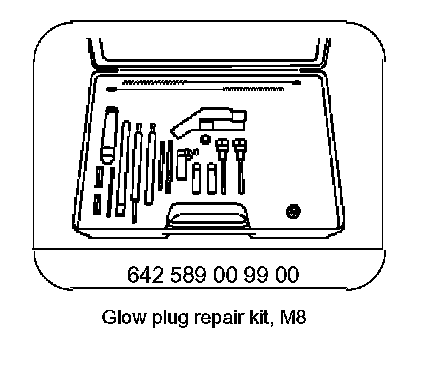

Special Tools:
